(55.100.19) - ELECTRICAL - HARNESS 87414763 - FLEXCONTROL JUMPER

Запчасти Case IH 1220 (55.100.19) - ELECTRICAL - HARNESS 87414763 - FLEXCONTROL JUMPER (55) - ELECTRICAL SYSTEMS

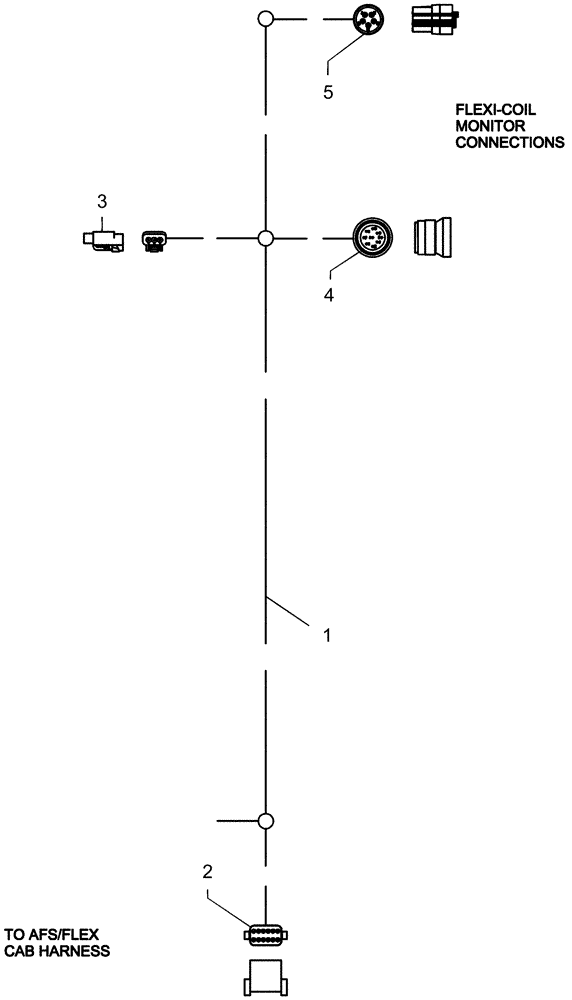

Схема запчастей Case IH 1220 - (55.100.19) - ELECTRICAL - HARNESS 87414763 - FLEXCONTROL JUMPER (55) - ELECTRICAL SYSTEMS
4
2
1
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87414763

HARNESS

FlexControl jumper

1шт.

2

223672A1

MULTIPOLE CONNECTOR,Male, 12 Pin

elec plastic 12c receptacle

1шт.

3

87696551

CONTACT HOUSING,Female, 3 Pole

cab plastic plug 3c

1шт.

4

291658A1

ELEC CONNECTOR,Female, 9 Pin

plastic 9c plug

1шт.

5

225224C1

ELEC CONNECTOR,Female, 5 Pin

plastic 5c plug

1шт.
