Запчасти Case IH 1220 (55.100.17) - ELECTRICAL - HARNESS 405029A2, AFS CHASSIS (55) - ELECTRICAL SYSTEMS

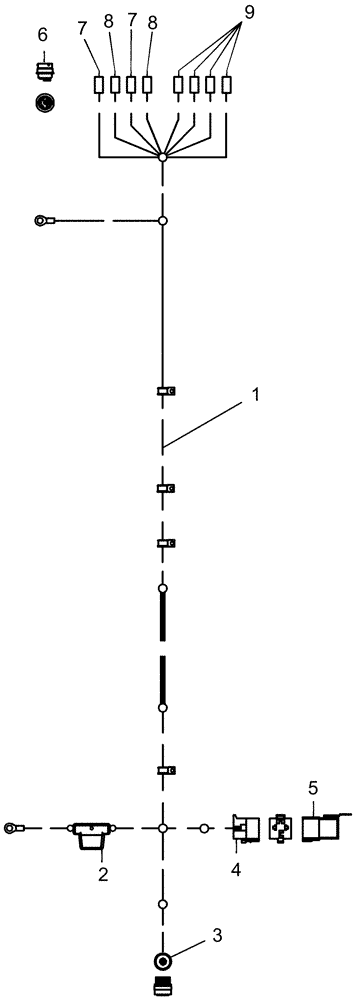

Схема запчастей Case IH 1220 - (55.100.17) - ELECTRICAL - HARNESS 405029A2, AFS CHASSIS (55) - ELECTRICAL SYSTEMS
9
7
2
3
1
8
4
5
6
7
8

Артикул

Название

Примечание

Количество

1

405029A2

HARNESS

AFS chassis

1шт.

2

NSS

NOT SOLD SEPARAT

Fuse Holder, Bussmann HHX In-Line

1шт.

3

198832A1

ELEC CONNECTOR,2 - 13 Pin

1шт.

4

310220A1

TERMINAL CONNECTOR

80 amp relay

1шт.

4

225368C1

CONNECTOR, ELEC

CONNECTOR 9 cavity power relay

1шт.

5

296541A1

RELAY

80A sealed hi-ram, Years: -01-DEC-08

1шт.

5

368459A1

RELAY,12V, 70A

70 amp power, Hella #66132

1шт.

5

84172275

RELAY

14V - 70 amp, sealed, Start Year: 01-DEC-08

1шт.

6

352506A1

ELEC CONNECTOR,Male, 9 Pin

metal 9c receptacle

1шт.

7

280384A1

ELEC. TERMINAL PIN

8-10awg

2шт.

8

280386A1

ELEC CONNECTOR,Nickel, 2.0 - 3.0mm

12-14awg

2шт.

9

225052C1

ELEC. TERMINAL PIN,Male, 0.50 - 1.20 mm2

E18, #16, Male

4шт.

Выбрано товаров: 12
