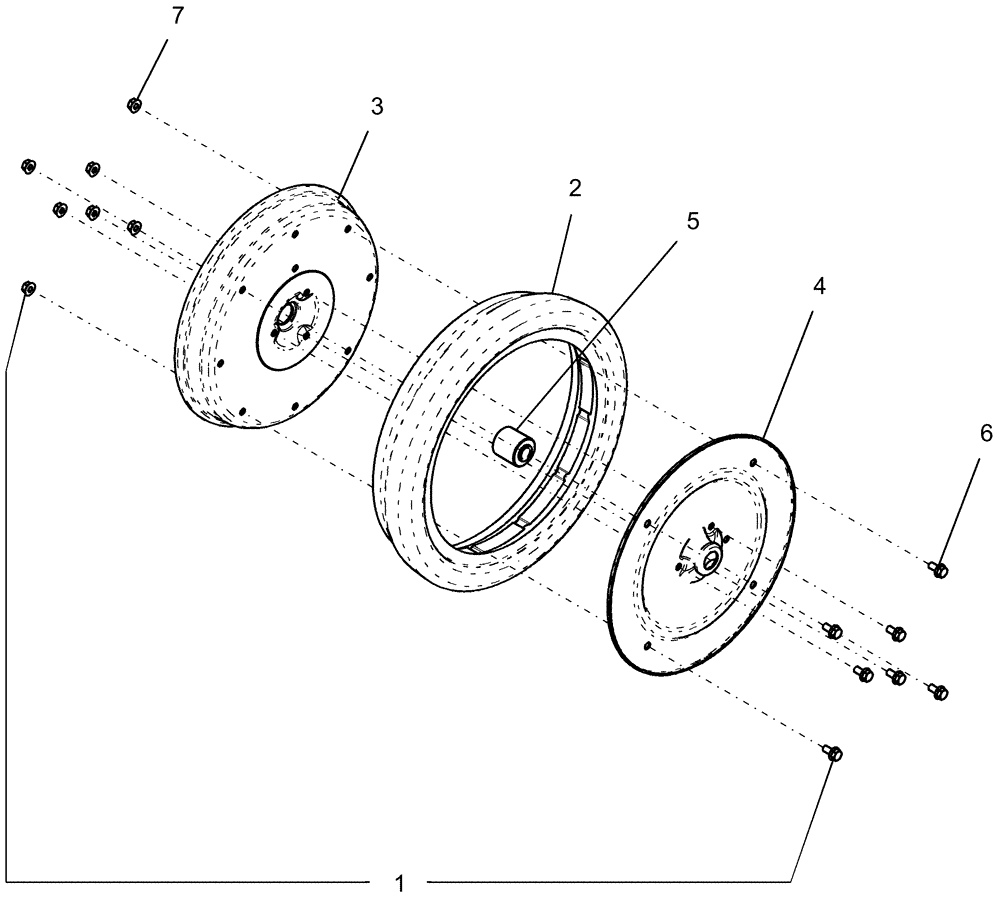

Запчасти Case IH 1220 (44.520.04) - WHEEL 2 3/4" X 16" - 87604837 ASSEMBLY (44) - WHEELS

1

87604837

WHEEL

2.75 x 16 gauge steel

1шт.

2

87602561

TYRE/TIRE

3 x 16 narrow gauge

1шт.

3

87604612

WHEEL

black steel half, 16" cleaner wheel

1шт.

4

87604805

WHEEL DISC

double disk

1шт.

5

324461A1

BALL BEARING

16 mm bore x 40 mm wide

1шт.

6

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

7шт.

7

86050303

NUT

M8 x 1.25, Flg, Cl 8

7шт.
