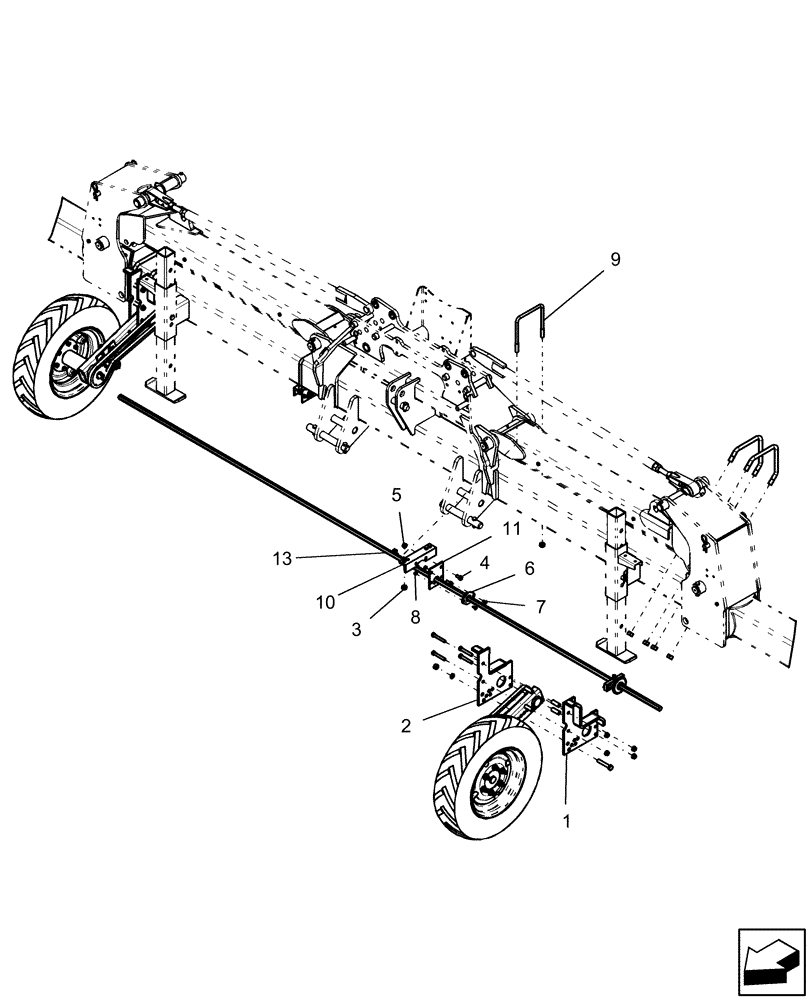

Запчасти Case IH 1220 (44.520.01) - FORWARD MOUNTED CARRYING WHEELS - 12 ROW STACKER, MECHANICAL (44) - WHEELS

1

191972A2

SUPPORT

wheel mount, RH

2шт.

2

191971A2

SUPPORT

wheel mount, LH

2шт.

3

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

4

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

5

86512371

SERRATED NUT,Flg, USR, 1/2"-13

4шт.

6

134158C92

BALL BEARING,22.5mm ID

7/8 hex flange

2шт.

7

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

4шт.

8

145458

SERRATED NUT,5/16"-18 GR 5 ZND

4шт.

9

1250813C1

U-BOLT

us 5/8"-11 x 7" x 8 1/4", G5, 2" thread

2шт.

10

87461088

SUPPORT

angle bearing

2шт.

11

87461090

PLATE

bearing support

2шт.

12

323322A1

HARNESS

Cyclo chem, extension

1шт.

Not Shown

1шт.

13

84145883

SHAFT

7/8" Hex x 4140 mm

1шт.

12 Row Narrow with 30" Spacing

1шт.

13

84145884

SHAFT

7/8" Hex x 5200 mm

1шт.

12 Row Wide with 36" and 38" Spacing

1шт.

13

87462825

SHAFT

hex 22.2 mm x 5755 mm

1шт.

12 Row Wide with 40" Spacing

1шт.
