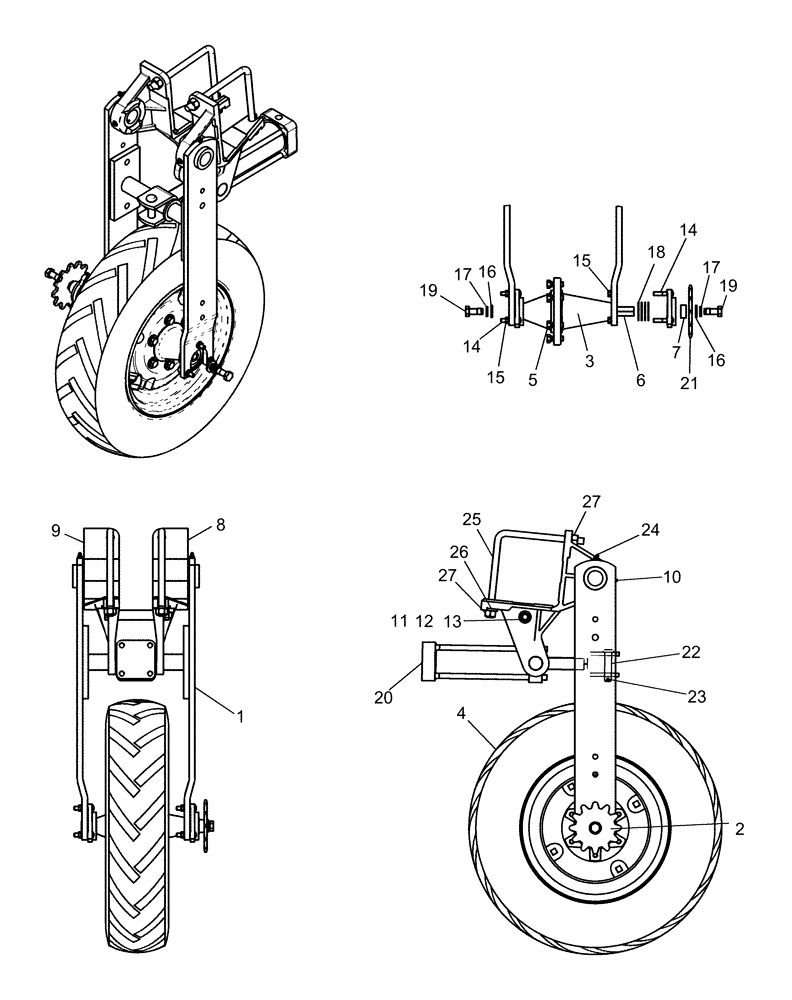

Запчасти Case IH 1220 (44.100.17) - DRIVE SYSTEM - RIGID TRAILING DUAL ARM 6R 8R (44) - WHEELS

1

191012A2

FRAME

assembly, drive wheel

1шт.

2

233254A1

BEARING ASSY,25.55mm ID

with 3 bolt flange

2шт.

3

90343C2

HUB

wheel

1шт.

4

410095A1

WHEEL ASSY

1шт.

4

311004A2

WHEEL ASSY

760-15 Chevron RH

1шт.

5

277538A1

BOLT,1/2" - 20 x 1.42"

hex conical, 1/2"-20 x 1 5/32"

6шт.

6

90341C3

AXLE

333 mm (13 1/8") long

1шт.

7

90376C2

SPACER

sprocket

1шт.

8

95833C3

BRACKET

wheel cylinder RH

1шт.

9

95832C3

BRACKET

wheel cylinder LH

1шт.

10

86624018

LUBE NIPPLE,1/4"-28 x .54" lg

2шт.

11

95911C2

TUBE

wheel bracket

1шт.

12

280293

BOLT,Hex, 5/8" - 11 x 7", Gr 5

1шт.

13

86977731

FLANGE NUT,Hex Serr, 5/8" - 11, Gr 5

Flg, USR, 5/8"-11

1шт.

14

280661

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

6шт.

15

247780

SERRATED NUT,Flg, USR, 3/8"-16

6шт.

16

86624189

WASHER,0.66" ID x 1.31" OD x 0.15" Thk

2шт.

17

86729275

LOCK WASHER,5/8 0.634 CST ZND

2шт.

18

495-81191

WASHER,1 5/32" x 2" x .060"

4шт.

19

86622997

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 5, Full Thd

2шт.

20

86991982

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3 1/4" x 8", 3000 psi, double acting

1шт.

21

1277737C1

SPROCKET

12 tooth

1шт.

22

86624078

HEADED PIN,3/4" x 3 1/4", G5

1шт.

23

87402

COTTER PIN,1/4" OD x 1-1/4" OAL

1шт.

24

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

2шт.

25

141025C3

BOLT

L 3/4"-10

2шт.

26

86624163

WASHER,0.81" ID x 1.5" OD x 0.22" Thk

2шт.

27

280954

NUT,3/4"-10, G5

4шт.
