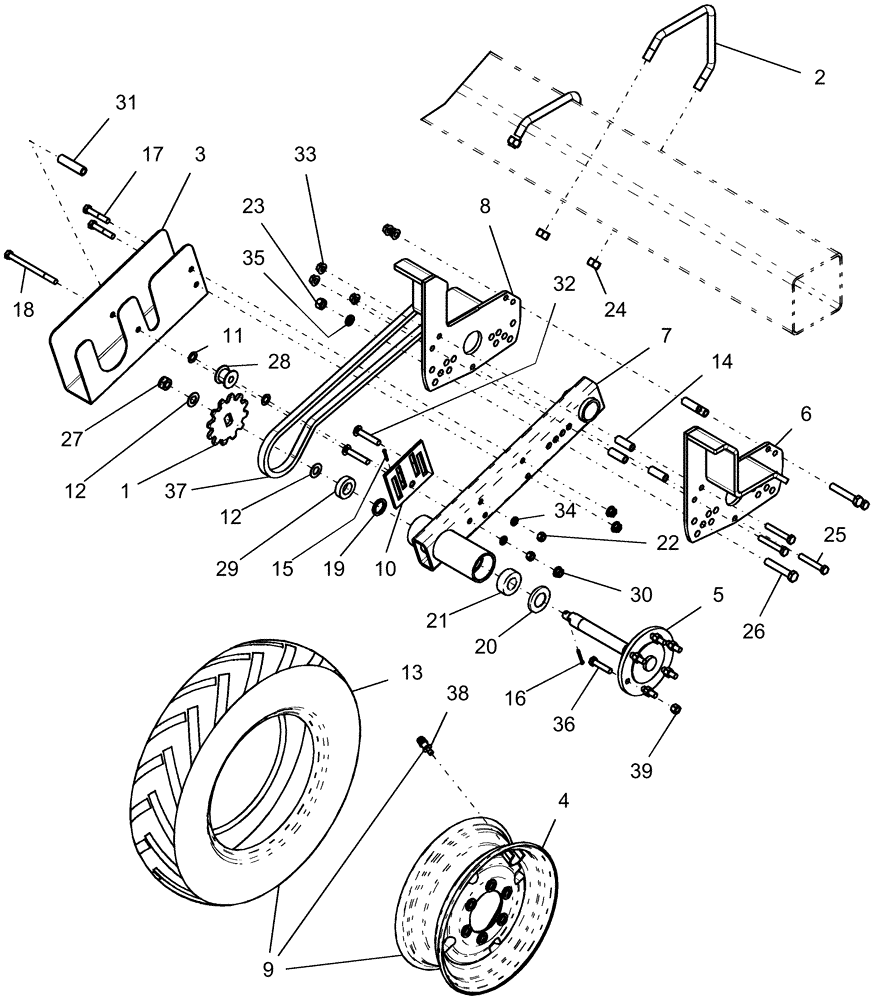

Запчасти Case IH 1220 (44.100.14) - CARRYING WHEELS - SINGLE ARM, REVERSIBLE, RIGID MOUNTED AND STACKER (44) - WHEELS

1

1277736C1

SPROCKET

drive wheel, 12 tooth

1шт.

2

192263A1

SPECIAL BOLT,V, 3/4" - 10, 7" x 7"

V 3/4"-10 x 7"

2шт.

3

147233C3

SUPPORT

chain guard LH

1шт.

Shown

1шт.

3

147234C3

SUPPORT

chain guard RH

1шт.

Not Shown

1шт.

4

349203A1

WHEEL

15 X 5 6H with valve guard

1шт.

5

134117C4

SHAFT

drive wheel

1шт.

6

87565533

BRACKET

mount, offset wheel LH

1шт.

7

233116A1

ARM

assembly with bearing cups installed

1шт.

Includes ref 21 and 29

1шт.

8

87565216

BRACKET

mount, offset wheel RH

1шт.

9

311004A2

WHEEL ASSY

760-15 Chevron RH

1шт.

10

193948A1

IDLER

wheel drive

1шт.

11

495-81178

WASHER,21/32" x 1 1/8" x .048"

2шт.

12

495-81041

WASHER,25/32" x 1 1/2" x .060"

2шт.

13

403298A1

TYRE/TIRE

7.60-15 10 ply

1шт.

14

23885K

SPACER,3/4" Tube x 2 1/16"

5шт.

15

87397

COTTER PIN,3/16" OD x 1" L

1шт.

16

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

1шт.

17

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

2шт.

18

9627857

BOLT,Hex, 1/2" - 13 x 6 1/2", Gr 5

1шт.

19

134120C4

SPACER

1шт.

20

137231C1

SEAL

drive wheel shaft

1шт.

21

51200379

BEARING CUP,69.9mm OD x 18.95mm W

#2523

1шт.

22

280431

NUT,1/2"-13, G5

2шт.

23

280374

NUT,Hex, 5/8" - 11, Gr 5

1шт.

24

280954

NUT,3/4"-10, G5

4шт.

25

88043

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

4шт.

26

280119

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

2шт.

27

425-1212

SLOTTED NUT,3/4"-10, G5

1шт.

28

1277726C1

ROLLER,48mm OD x 34mm L

idler

1шт.

29

36723

BEARING CUP,59.16mm OD x 11.81mm W

#LM67010

1шт.

30

86512371

SERRATED NUT,Flg, USR, 1/2"-13

3шт.

31

147232C3

SPACER

chain guard

1шт.

32

280818

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

2шт.

33

86512371

SERRATED NUT,Flg, USR, 1/2"-13

5шт.

34

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

35

12034871

WASHER

5/8"

1шт.

36

86622972

BOLT,Spcl, Hex, 1/2" - 20 x 2 1/4", Gr 8, Full Thd

6шт.

37

1277739C91

CHAIN (AG)

primary wheel drive, no. 2050, use 45 links from 569089R91 bulk chain and (1) 1277928C91 connecting link

1шт.

37

569089R91

CHAIN (AG),10' L, 1.0" Pitch

#2050 - 10' d/p roller

1шт.

37

1277928C91

LINK

connecting #2050

1шт.

38

810769C1

VALVE

tire stem VS/936

1шт.

39

F23214

WHEEL NUT

hub wheel - h517 & h617

6шт.
