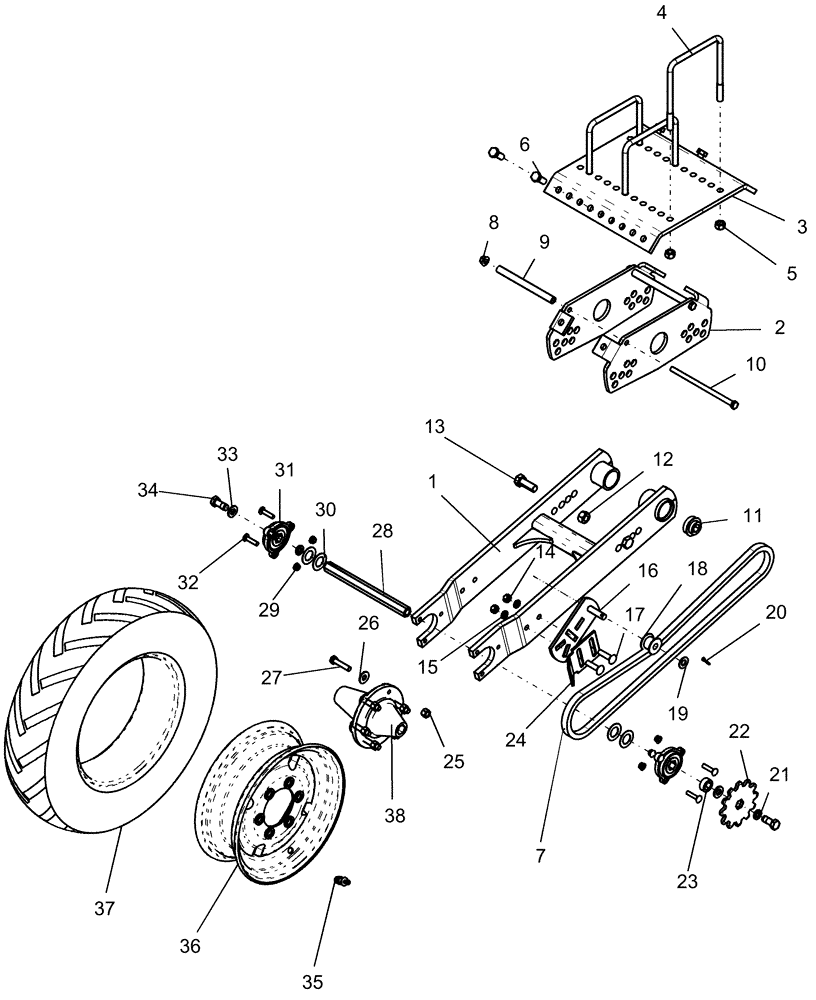

Запчасти Case IH 1220 (44.100.06) - DRIVE WHEELS - RH 12R MECH (44) - WHEELS

1

87565531

FRAME

rail, dual arm wheel

1шт.

2

87703810

PLATE

side mount adj

2шт.

3

87703811

PLATE

top wide mount adj

1шт.

4

1250813C1

U-BOLT

us 5/8"-11 x 7" x 8 1/4", G5, 2" thread

2шт.

5

280374

NUT,Hex, 5/8" - 11, Gr 5

8шт.

6

88062

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8

4шт.

7

1277740C91

CHAIN (AG)

A2050 main drive (Trail), use 55 links from 569089R91 bulk chain plus 1-1277928C91 connecting link

1шт.

7

569089R91

CHAIN (AG),10' L, 1.0" Pitch

#2050 - 10' d/p roller

1шт.

7

1277928C91

LINK

connecting #2050

1шт.

8

86512371

SERRATED NUT,Flg, USR, 1/2"-13

2шт.

9

87548228

SPACER

wheel mount

2шт.

10

413-8160

BOLT,Hex, 1/2" - 13 x 10", Gr 5

2шт.

11

134181C92

BALL BEARING,2.125" OD x 0.046"

ball, 7/8" hex bore

1шт.

12

86518194

NUT,3/4"-10, G8

2шт.

13

426-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

2шт.

14

280431

NUT,1/2"-13, G5

2шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

16

87461086

PLATE

idler

1шт.

17

280185

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

2шт.

18

1277726C1

ROLLER,48mm OD x 34mm L

idler

1шт.

19

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

1шт.

20

87397

COTTER PIN,3/16" OD x 1" L

1шт.

21

12034871

WASHER

5/8"

2шт.

22

1277737C1

SPROCKET

12 tooth

1шт.

23

90376C2

SPACER

sprocket

1шт.

24

87461087

SCRAPER

chain plate

1шт.

25

F23214

WHEEL NUT

hub wheel - h517 & h617

6шт.

26

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

6шт.

27

86622972

BOLT,Spcl, Hex, 1/2" - 20 x 2 1/4", Gr 8, Full Thd

6шт.

28

293986A1

BAR

axle wheel

1шт.

29

247780

SERRATED NUT,Flg, USR, 3/8"-16

6шт.

30

495-81191

WASHER,1 5/32" x 2" x .060"

4шт.

31

233254A1

BEARING ASSY,25.55mm ID

with 3 bolt flange

2шт.

32

86508775

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

6шт.

33

86624189

WASHER,0.66" ID x 1.31" OD x 0.15" Thk

2шт.

34

86622997

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 5, Full Thd

2шт.

35

810769C1

VALVE

tire stem VS/936

1шт.

36

T53527

WHEEL

15 x 5 KB

1шт.

37

1980752C1

TYRE/TIRE

7.60X15 6PR I-1 TBLS

1шт.

38

293985A2

HUB

RGH (8R70CM)

1шт.
