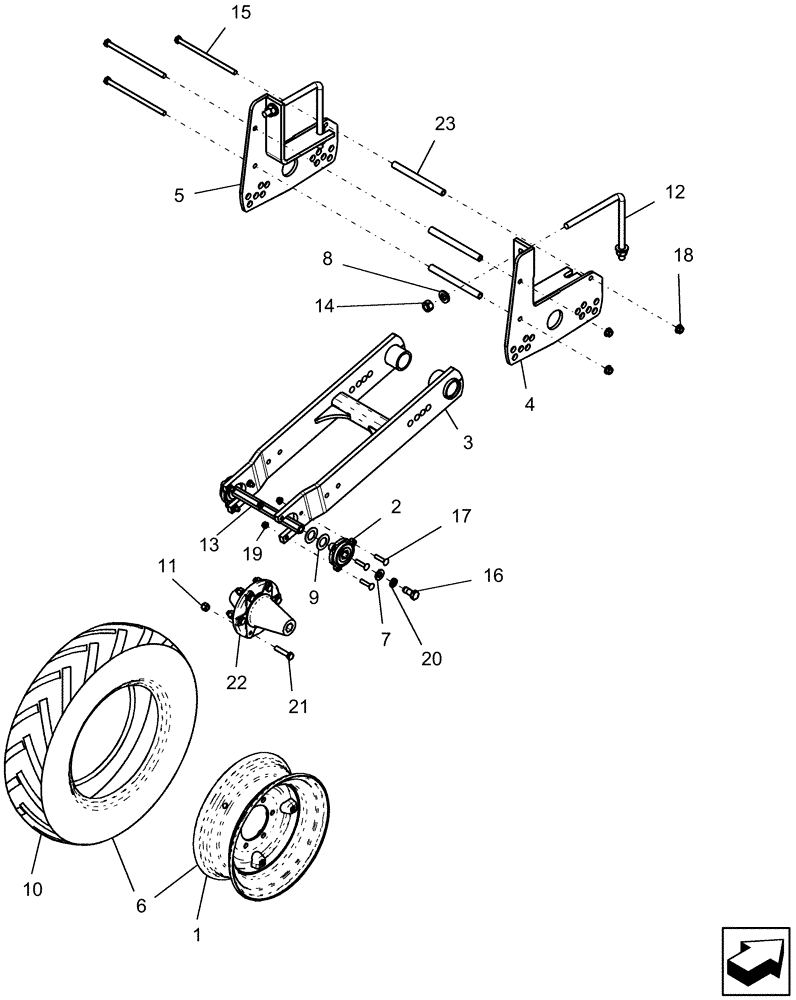

Запчасти Case IH 1220 (44.100.01) - CARRYING WHEELS - DUAL ARM, 16R STACKER MECH AND VR (44) - WHEELS

1

349203A1

WHEEL

15 X 5 6H with valve guard

1шт.

2

233254A1

BEARING ASSY,25.55mm ID

with 3 bolt flange

2шт.

3

87565531

FRAME

rail, dual arm wheel

1шт.

4

87565526

BRACKET

wheel mount LH

1шт.

5

87565528

BRACKET

wheel mount RH

1шт.

6

332455A2

WHEEL ASSY

tire 760-15 Chevron LH

1шт.

Includes Rim, Tire and Valve Stem 810769C1

1шт.

7

86624189

WASHER,0.66" ID x 1.31" OD x 0.15" Thk

2шт.

8

86624163

WASHER,0.81" ID x 1.5" OD x 0.22" Thk

4шт.

9

495-81191

WASHER,1 5/32" x 2" x .060"

4шт.

10

403298A1

TYRE/TIRE

7.60-15 10 ply

1шт.

11

F23214

WHEEL NUT

hub wheel - h517 & h617

6шт.

12

141025C3

BOLT

L 3/4"-10, Serial Range: -YAS007287

2шт.

12

192263A1

SPECIAL BOLT,V, 3/4" - 10, 7" x 7"

V 3/4"-10 x 7", Start Serial: YAS007287

2шт.

13

293986A1

BAR

axle wheel

1шт.

14

280954

NUT,3/4"-10, G5

4шт.

15

413-8160

BOLT,Hex, 1/2" - 13 x 10", Gr 5

3шт.

16

86622997

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 5, Full Thd

2шт.

17

86508775

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

6шт.

18

86512371

SERRATED NUT,Flg, USR, 1/2"-13

3шт.

19

247780

SERRATED NUT,Flg, USR, 3/8"-16

6шт.

20

12034871

WASHER

5/8"

2шт.

21

86622972

BOLT,Spcl, Hex, 1/2" - 20 x 2 1/4", Gr 8, Full Thd

6шт.

22

293985A2

HUB

RGH (8R70CM)

1шт.

23

87548228

SPACER

wheel mount

3шт.

100

810769C1

VALVE

tire stem VS/936

1шт.

Not Shown

1шт.
