Запчасти Case IH 1220 (39.110.09) - VACUUM AIR SYSTEM - 16 ROW MOUNTED STACKER (39) - FRAMES AND BALLASTING

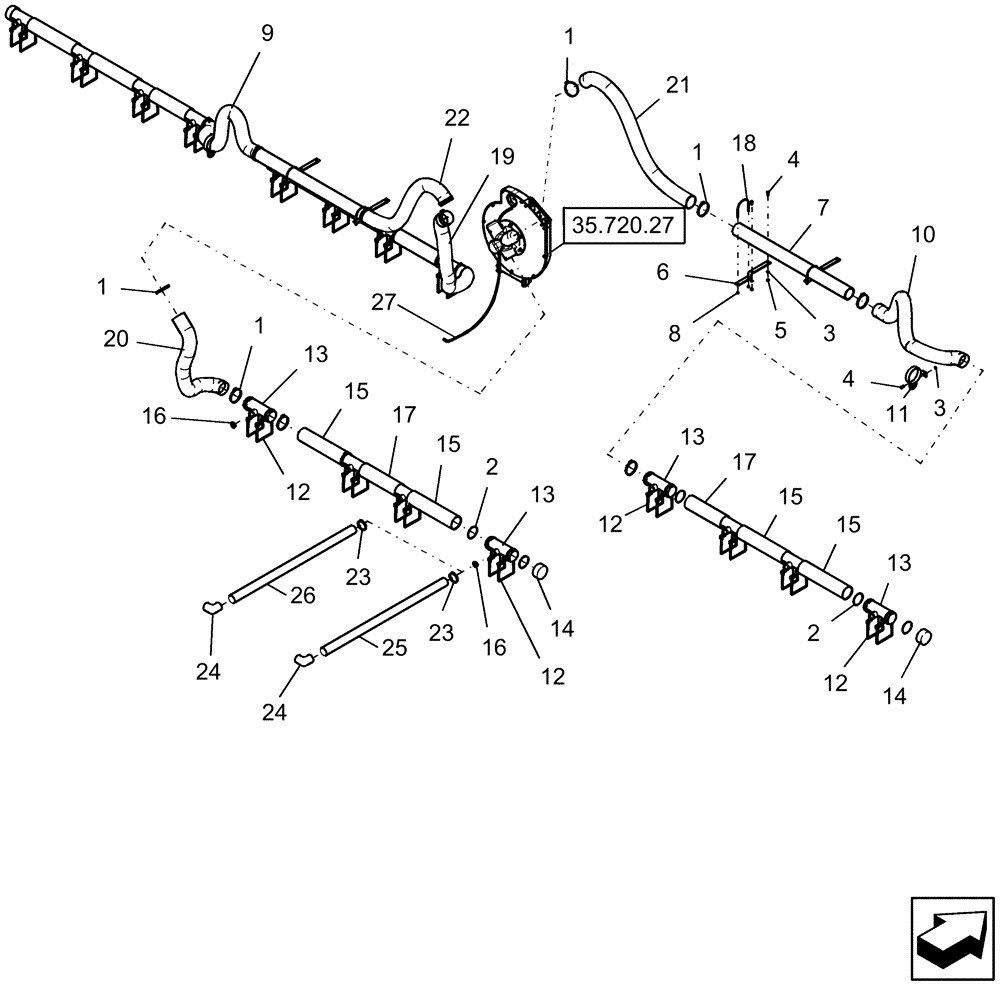

Схема запчастей Case IH 1220 - (39.110.09) - VACUUM AIR SYSTEM - 16 ROW MOUNTED STACKER (39) - FRAMES AND BALLASTING
35.720.27
7
2
25
15
13
13
12
8
18
17
22
12
12
24
1
17
1
20
23
16
16
5
19
24
9
27
1
15
4
1
15
6
11
12
23
14
2
26
21
14
13
3
13
4
3
10
15

Артикул

Название

Примечание

Количество

1

9706924

HOSE CLAMP,103.1mm - 127mm

16шт.

2

238-3347

O-RING,4.225" ID x 4.645" OD x 0.21"

28шт.

3

80680

LOCK WASHER,3/8 0.381 CST ZND

10шт.

4

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

10шт.

5

9628503

NUT,3/8"-16, G5

8шт.

6

84145361

BRACKET

vacuum hose holder

4шт.

7

84143327

PIPE

vacuum 4 1/2" x 55"

2шт.

8

86625061

NUT,1/4"-20, GB

8шт.

9

87504901

HOSE

1шт.

Cut to 1730 mm long

1шт.

10

87504901

HOSE

1шт.

Cut to 1730 mm long

1шт.

11

87573434

HOLDER

vacuum hose

2шт.

12

112620A1

CABLE TIE

CABLE STRAP 34"

34шт.

13

300766A1

TEE

vacuum manifold

16шт.

14

300767A1

CAP

vacuum manifold end

4шт.

15

84364346

TUBE

vacuum manifold, 565 mm

6шт.

15

84364347

TUBE

vacuum manifold, 575 mm

2шт.

16

305519A1

PLUG

vacuum manifold restriction

8шт.

17

84364342

TUBE

vacuum manifold, 230 mm

2шт.

Cut to 444 mm long

1шт.

18

392969A1

U-BOLT

BOLT "U" ur 1/4"-20 5 9/32" w 5 25/32" d 1 25/32" thread, vacuum system

4шт.

19

362013A1

HOSE,114.30 mm ID x 7620.00 mm

1шт.

Cut to 1570 mm long

1шт.

20

362013A1

HOSE,114.30 mm ID x 7620.00 mm

1шт.

Cut to 1570 mm long

1шт.

21

362013A1

HOSE,114.30 mm ID x 7620.00 mm

1шт.

Cut to 1570 mm long

1шт.

22

362013A1

HOSE,114.30 mm ID x 7620.00 mm

1шт.

Cut to 1570 mm long

1шт.

23

82012728

COLLAR,50mm - 65mm, Worm Gear

12шт.

24

87500119

TUBE

90º 50 mm - vacuum

12шт.

25

87501726

HOSE

vacuum 2" x 50' bulk

10шт.

Standard row unit

1шт.

26

87501726

HOSE

vacuum 2" x 50' bulk

2шт.

Extended row unit

1шт.

27

238600A3

HOSE,6.35 mm ID x 1730.00 mm

1шт.

Выбрано товаров: 37
