Запчасти Case IH 1220 (39.110.03) - MAIN FRAME AND RIGID HITCH, 6 ROW AND 8 ROW RIGID TRAILING (39) - FRAMES AND BALLASTING

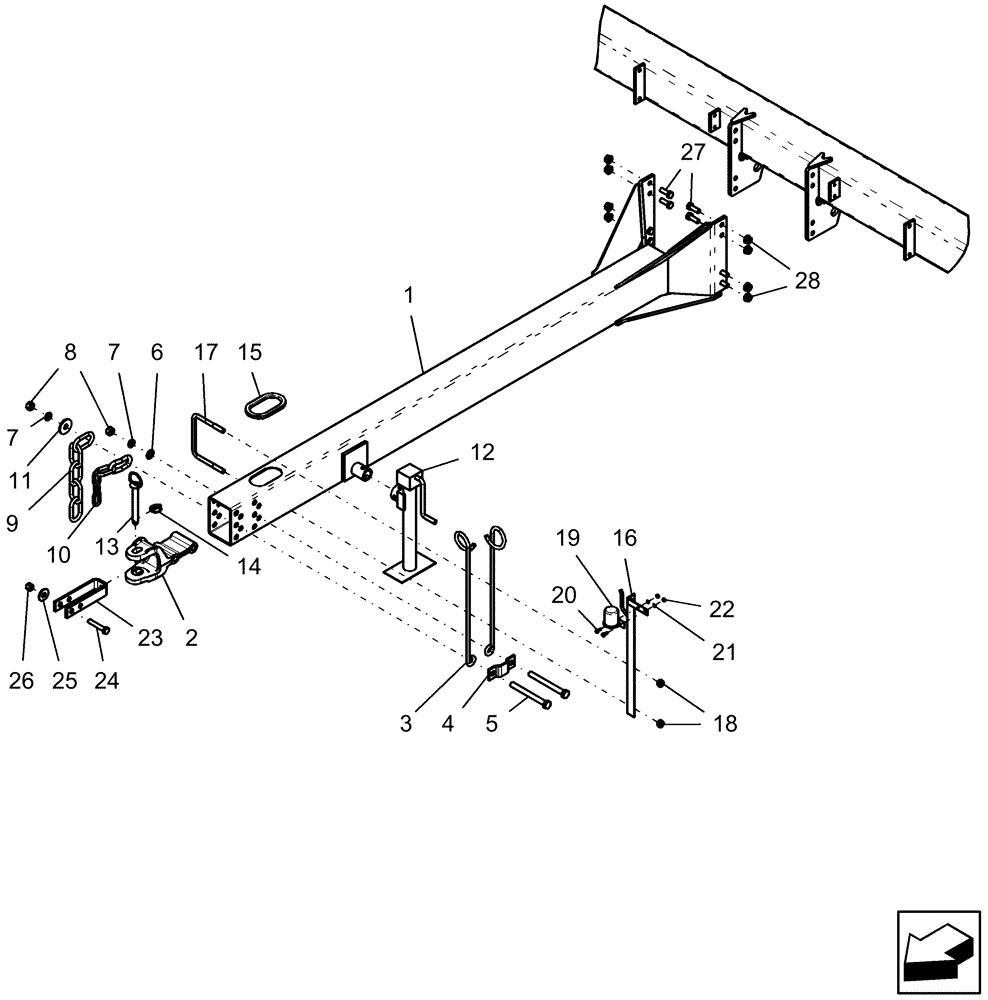

Схема запчастей Case IH 1220 - (39.110.03) - MAIN FRAME AND RIGID HITCH, 6 ROW AND 8 ROW RIGID TRAILING (39) - FRAMES AND BALLASTING
18
14
2
5
6
24
9
26
22
20
7
21
12
7
23
3
28
17
13
1
4
8
27
19
11
15
10
16
25

Артикул

Название

Примечание

Количество

1

87502629

HITCH

rigid pole with decals

1шт.

1

1277910C2

CAUTION DECAL

1шт.

1

220447A1

WARNING DECAL

Avoid Injury

1шт.

1

220321A1

WARNING DECAL

Non-Power Implement

1шт.

2

1279040C1

CLEVIS

hitch

1шт.

3

1279237C1

SUPPORT

hose

2шт.

4

137098C1

SUPPORT

bracket, pump mounting

1шт.

5

281036

BOLT,Hex, 3/4" - 10 x 7 1/2", Gr 5

2шт.

6

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

1шт.

7

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

2шт.

8

280954

NUT,3/4"-10, G5

2шт.

9

1337593C1

CHAIN

safety 6000 lb

1шт.

6 Row

1шт.

10

100682C3

CHAIN (AG)

10,000 lb safety

1шт.

8 Row

1шт.

11

R52105

WASHER,19.45mm ID x 63.5mm OD x 6mm Thk

19.45 mm id x 63.5 mm od

1шт.

12

119354C1

JACK

side crank

1шт.

13

1277850C1

HITCH PIN,36.88mm OD x 239mm L

Assy

1шт.

14

270184

LINCH PIN,6.35mm OD

1/4" x 1-3/4", Klik

1шт.

15

1330108CX

SEAL,304.8mm L

Trim Edge Black, 250' Roll

1шт.

16

404915A1

SUPPORT

hose assembly

1шт.

17

1250812C1

U-BOLT,5/8" - 11 x 182.40mm W x 160.50mm L

us 5/8"-11 x 7" x 6 1/4", G5, 2" thread

1шт.

18

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

19

382110A1

CONTACT HOUSING

cap, Cole Hersee seven pin

1шт.

20

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

21

80682

LOCK WASHER,1/4"

2шт.

22

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

23

1279163C1

CLEVIS COUPLING

safety chain

1шт.

24

280119

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

1шт.

25

495-81047

WASHER,25/32" x 2" x .179"

1шт.

26

86639566

NUT,5/8"-11, GB

1шт.

27

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

8шт.

28

86977731

FLANGE NUT,Hex Serr, 5/8" - 11, Gr 5

Flg, USR, 5/8"-11

8шт.

Выбрано товаров: 33
