Запчасти Case IH 1220 (39.110.02) - MAIN FRAME AND FOLDING HITCH, RIGID TRAILING (39) - FRAMES AND BALLASTING

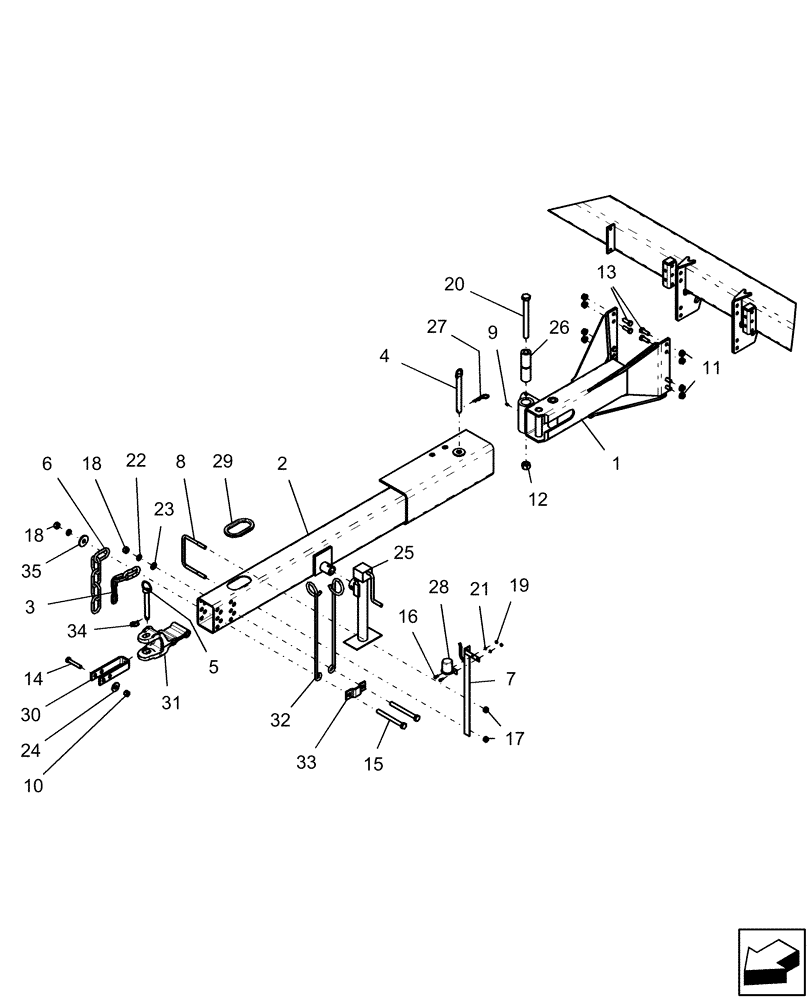

Схема запчастей Case IH 1220 - (39.110.02) - MAIN FRAME AND FOLDING HITCH, RIGID TRAILING (39) - FRAMES AND BALLASTING
22
18
12
16
24
3
9
13
20
11
29
17
14
6
15
25
7
32
30
27
28
1
4
26
18
5
31
33
35
8
2
23
10
34
19
21

Артикул

Название

Примечание

Количество

1

87502241

HITCH

stub swing

1шт.

2

87502638

HITCH

pole, folding, with decals

1шт.

3

100682C3

CHAIN (AG)

10,000 lb safety

1шт.

8 Row

1шт.

4

1250775C2

PIN

assembly, 1" tongue

1шт.

5

1277850C1

HITCH PIN,36.88mm OD x 239mm L

Assy

1шт.

6

1337593C1

CHAIN

safety 6000 lb

1шт.

6 Row

1шт.

7

404915A1

SUPPORT

hose assembly

1шт.

8

1250812C1

U-BOLT,5/8" - 11 x 182.40mm W x 160.50mm L

us 5/8"-11 x 7" x 6 1/4", G5, 2" thread

1шт.

9

87414

LUBE NIPPLE,1/4" - 28

1шт.

10

86639566

NUT,5/8"-11, GB

1шт.

11

86977731

FLANGE NUT,Hex Serr, 5/8" - 11, Gr 5

Flg, USR, 5/8"-11

8шт.

12

9626600

NUT,1"-8, GC

1шт.

13

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

8шт.

14

280119

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

1шт.

15

281036

BOLT,Hex, 3/4" - 10 x 7 1/2", Gr 5

2шт.

16

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

17

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

18

280954

NUT,3/4"-10, G5

2шт.

19

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

20

87014472

BOLT

Hex, 1"-8 x 10", G8

1шт.

21

80682

LOCK WASHER,1/4"

2шт.

22

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

2шт.

23

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

1шт.

24

495-81047

WASHER,25/32" x 2" x .179"

1шт.

25

119354C1

JACK

side crank

1шт.

26

1250754C1

SPACER

pivot

1шт.

27

1978738C1

HAIR PIN COTTER

11/64" x 3 51/64"

1шт.

28

382110A1

CONTACT HOUSING

cap, Cole Hersee seven pin

1шт.

29

1330108CX

SEAL,304.8mm L

Trim Edge Black, 250' Roll

1шт.

30

1279163C1

CLEVIS COUPLING

safety chain

1шт.

31

1279040C1

CLEVIS

hitch

1шт.

32

1279237C1

SUPPORT

hose

2шт.

33

137098C1

SUPPORT

bracket, pump mounting

1шт.

34

270184

LINCH PIN,6.35mm OD

1/4" x 1-3/4", Klik

1шт.

35

R52105

WASHER,19.45mm ID x 63.5mm OD x 6mm Thk

19.45 mm id x 63.5 mm od

1шт.

Выбрано товаров: 37
