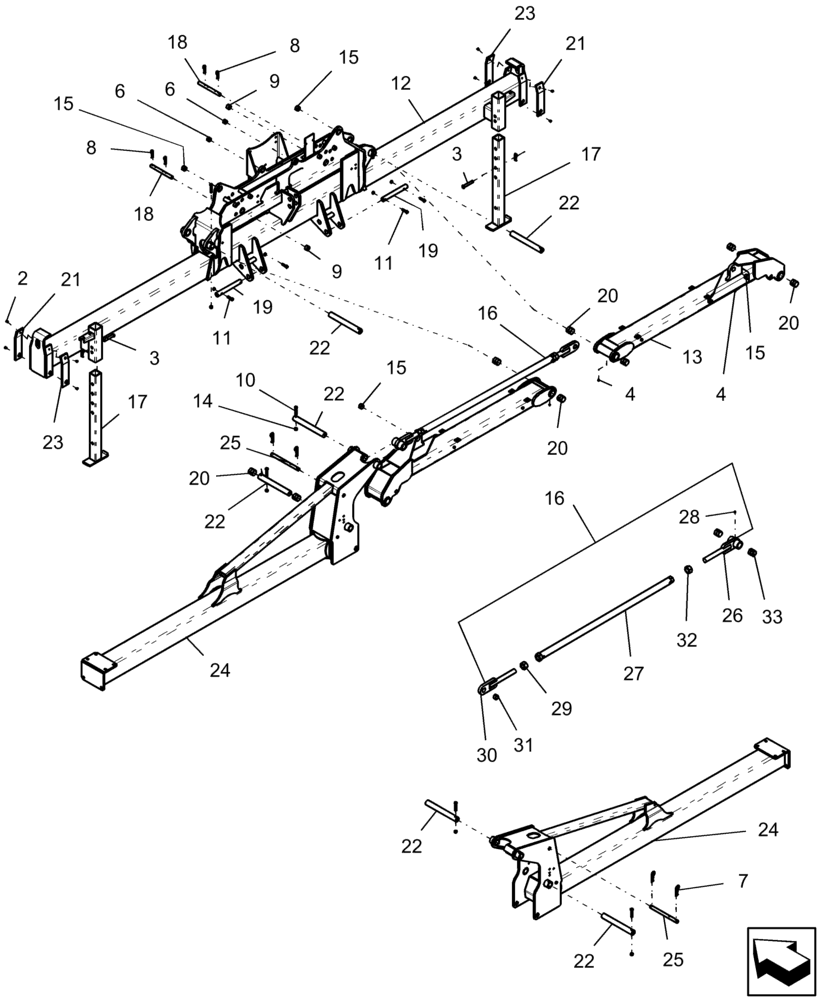

Запчасти Case IH 1220 (39.100.12) - MAIN FRAME, 16 ROW AND 12 ROW WIDE 40" SPACING MOUNTED STACKER (39) - FRAMES AND BALLASTING

1

86632537

THIN NUT,1/2"-13, GB, Thin

4шт.

2

151-572

RIVET,Pop, 1/4" x 1 1/4"

8шт.

3

86632566

HEADED PIN,3/4" x 4 1/2", G5

2шт.

4

87414

LUBE NIPPLE,1/4" - 28

4шт.

5

87327559

COTTER PIN

9/64" x 2 15/16"

2шт.

6

86523224

BUSHING,25.58mm ID x 32.77mm OD x 26.16mm L

tension 1 1/4" x 1" x 1" long

2шт.

7

3682

HAIR PIN COTTER

.243" x 4"

4шт.

8

87045537

HAIR PIN COTTER

.148 x 3 5/16"

4шт.

9

87420247

BUSHING,31.85mm ID x 38.19mm OD x 25.4mm L

gar mgl 1 1/2" x 1 1/4" x 1" polygon

2шт.

10

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

6шт.

11

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

12

84143754

FRAME

16 row narrow main

1шт.

13

84144554

LINK

parallel lift arm

2шт.

14

87333862

NUT

1/2"-13, GB

6шт.

15

87505190

BUSHING

tension 1 1/2" x 1 1/4" x 1"

4шт.

16

NSS

NOT SOLD SEPARAT

2шт.

Includes ref 26 - 33

1шт.

17

87566136

STAND

8 row wide and 16 row narrow stacker

2шт.

18

87565221

PIN

gull wing lock

2шт.

19

87566119

PIN

lower 3 point

2шт.

20

87594339

BUSHING

tension 2 x 1 3/4 x 2 long

8шт.

21

87623822

GUIDE

uhmw 1/2" x 3" wing rear lf

2шт.

22

87630548

PIN

44.45 mm x 350 mm hardened

6шт.

23

87630550

GUIDE

uhmw 1/2" x 3" wing rf lr

2шт.

24

87662962

FRAME

wing

2шт.

25

87653801

PIN,25.4mm OD x 340mm L

1" x 11 7/16"

2шт.

26

87564620

CLEVIS

threaded adjuster RH

1шт.

27

87684863

TUBE

linkage

1шт.

28

87414

LUBE NIPPLE,1/4" - 28

1шт.

29

87597952

NUT,Hex, 1-1/2" - 6, LH Thd, Gr 5

1 1/2"-6 G5 LH thread

1шт.

30

87690808

CLEVIS

adjustable LH

1шт.

31

87420247

BUSHING,31.85mm ID x 38.19mm OD x 25.4mm L

gar mgl 1 1/2" x 1 1/4" x 1" polygon

1шт.

32

425-1024

NUT,1 1/2"-6, G5

1шт.

33

87594339

BUSHING

tension 2 x 1 3/4 x 2 long

2шт.
