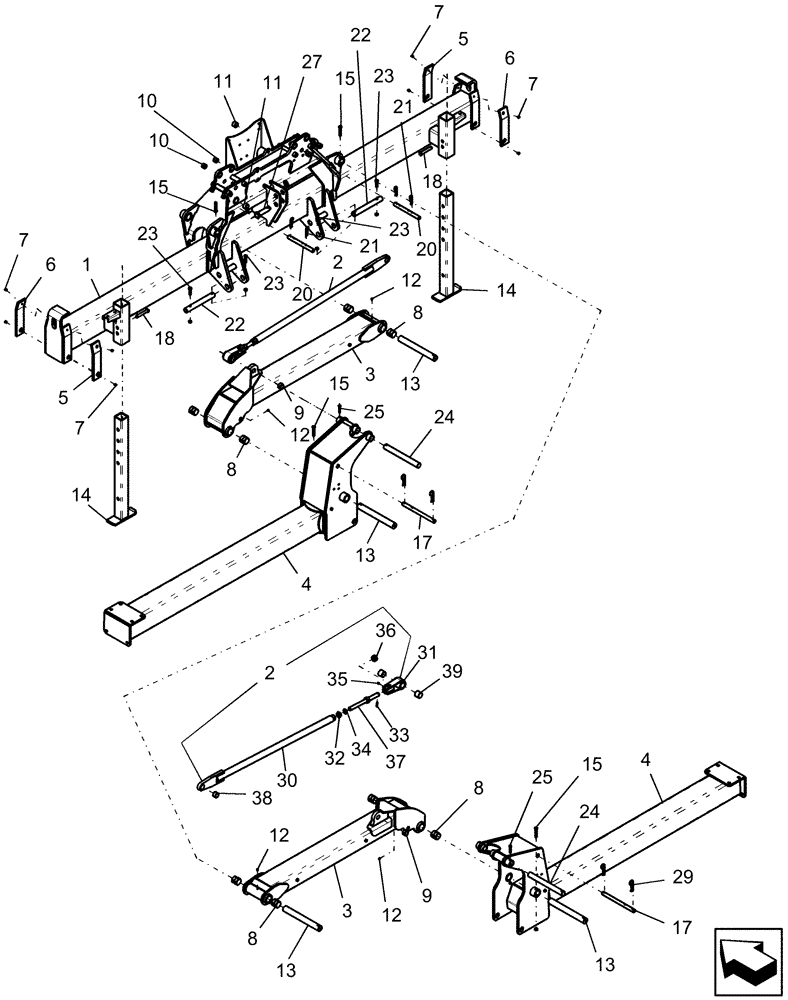

Запчасти Case IH 1220 (39.100.10) - MAIN FRAME, 12 ROW NARROW MOUNTED STACKER (39) - FRAMES AND BALLASTING

1

84143761

FRAME

12 row narrow stacker bar

1шт.

2

NSS

NOT SOLD SEPARAT

2шт.

Includes ref 30 - 39

1шт.

3

87630534

LIFT ARM

12 row narrow parallel

2шт.

4

87623833

BEAM

wing, 12 row narrow

2шт.

5

87630550

GUIDE

uhmw 1/2" x 3" wing rf lr

2шт.

6

87623822

GUIDE

uhmw 1/2" x 3" wing rear lf

2шт.

7

151-572

RIVET,Pop, 1/4" x 1 1/4"

8шт.

8

87594339

BUSHING

tension 2 x 1 3/4 x 2 long

8шт.

9

87505190

BUSHING

tension 1 1/2" x 1 1/4" x 1"

2шт.

10

86523224

BUSHING,25.58mm ID x 32.77mm OD x 26.16mm L

tension 1 1/4" x 1" x 1" long

4шт.

11

87420247

BUSHING,31.85mm ID x 38.19mm OD x 25.4mm L

gar mgl 1 1/2" x 1 1/4" x 1" polygon

2шт.

12

87414

LUBE NIPPLE,1/4" - 28

4шт.

13

87630548

PIN

44.45 mm x 350 mm hardened

4шт.

14

87566136

STAND

8 row wide and 16 row narrow stacker

2шт.

15

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

4шт.

16

86632537

THIN NUT,1/2"-13, GB, Thin

8шт.

17

87653801

PIN,25.4mm OD x 340mm L

1" x 11 7/16"

2шт.

18

86632566

HEADED PIN,3/4" x 4 1/2", G5

2шт.

19

87327559

COTTER PIN

9/64" x 2 15/16"

2шт.

20

87565221

PIN

gull wing lock

2шт.

21

87045537

HAIR PIN COTTER

.148 x 3 5/16"

4шт.

22

87566119

PIN

lower 3 point

2шт.

23

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

24

87630549

PIN

1 1/2" x 13 9/32"

2шт.

25

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

2шт.

26

87016560

JAM NUT,Jam, 3/8"-16, G5

2шт.

27

392211R2

PIN

link

1шт.

28

372907R91

LINCH PIN

linch 7/16" x 2" heavy duty

1шт.

29

3682

HAIR PIN COTTER

.243" x 4"

4шт.

30

87630535

LIFT ARM

tension arm 12 row narrow

1шт.

31

87630536

COUPLING

T, tension link

1шт.

32

87553819

JAM NUT

1"-8 Hex, Jam

1шт.

33

87406

LOCK PIN,6.35mm OD x 38.1mm L, Slotted

1шт.

34

87325444

WASHER,1.02" ID x 1.5" OD x 0.07" Thk

1 1/64" id 1 1/2" 14ga

1шт.

35

87414

LUBE NIPPLE,1/4" - 28

1шт.

36

7827

SLOTTED NUT,1"-8, G2

1шт.

37

87565220

STUD

tension link adjust

1шт.

38

87420247

BUSHING,31.85mm ID x 38.19mm OD x 25.4mm L

gar mgl 1 1/2" x 1 1/4" x 1" polygon

1шт.

39

87686636

BUSHING,1-1/2" ID x 1-3/4" OD x 1-1/2" Thk

composite 1 3/4" x 1 1/2" x 1 1/2"

2шт.
