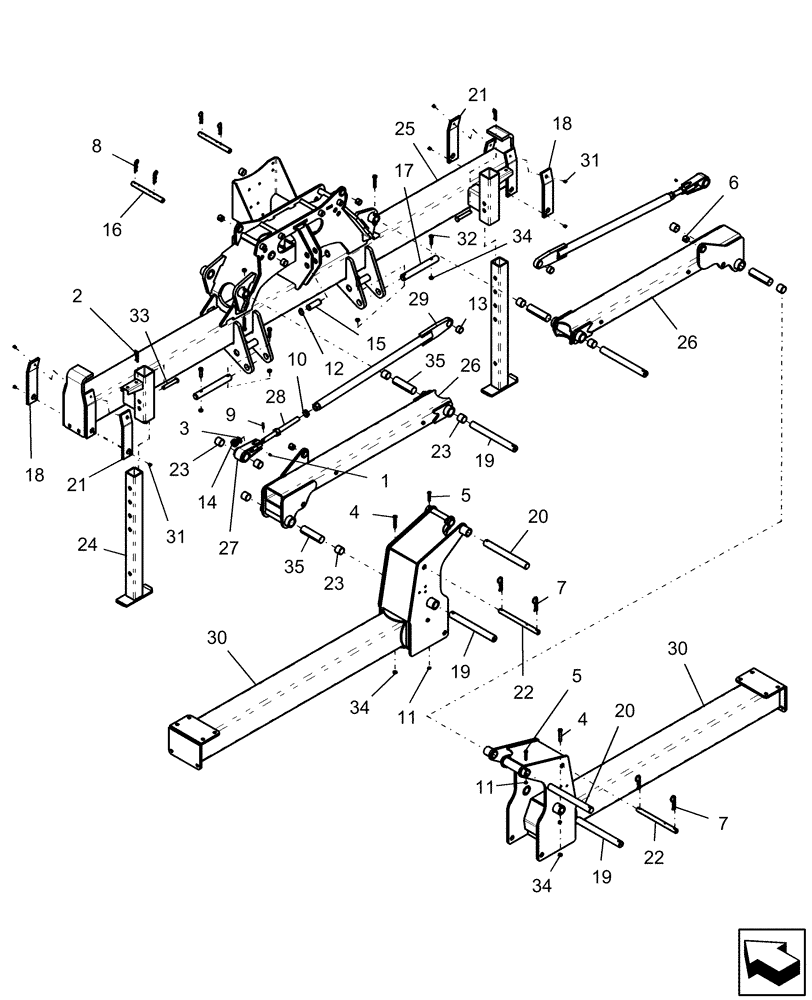

Запчасти Case IH 1220 (39.100.09) - MAIN FRAME, 8 ROW MOUNTED STACKER (39) - FRAMES AND BALLASTING

1

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

2шт.

2

87327559

COTTER PIN

9/64" x 2 15/16"

2шт.

3

87325444

WASHER,1.02" ID x 1.5" OD x 0.07" Thk

1 1/64" id 1 1/2" 14ga

2шт.

4

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

4шт.

5

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

2шт.

6

86523224

BUSHING,25.58mm ID x 32.77mm OD x 26.16mm L

tension 1 1/4" x 1" x 1" long

4шт.

7

3682

HAIR PIN COTTER

.243" x 4"

4шт.

8

87045537

HAIR PIN COTTER

.148 x 3 5/16"

4шт.

9

87406

LOCK PIN,6.35mm OD x 38.1mm L, Slotted

2шт.

10

425-1024

NUT,1 1/2"-6, G5

1"-8 Hex, Jam

2шт.

11

87016560

JAM NUT,Jam, 3/8"-16, G5

2шт.

12

86625148

SNAP RING,#125, Ext

2шт.

13

87420247

BUSHING,31.85mm ID x 38.19mm OD x 25.4mm L

gar mgl 1 1/2" x 1 1/4" x 1" polygon

4шт.

14

1680

SLOTTED NUT,1 1/2"-12, G2

2шт.

15

8973

PIN

cylinder, 1 1/4" x 3 3/8" ul with snap ring groove

1шт.

16

87565221

PIN

gull wing lock

2шт.

17

87566119

PIN

lower 3 point

2шт.

18

87623822

GUIDE

uhmw 1/2" x 3" wing rear lf

2шт.

19

87665610

PIN

38.1 mm x 350 mm

4шт.

20

87630549

PIN

1 1/2" x 13 9/32"

2шт.

21

87630550

GUIDE

uhmw 1/2" x 3" wing rf lr

2шт.

22

87653801

PIN,25.4mm OD x 340mm L

1" x 11 7/16"

2шт.

23

87686636

BUSHING,1-1/2" ID x 1-3/4" OD x 1-1/2" Thk

composite 1 3/4" x 1 1/2" x 1 1/2"

12шт.

24

87566136

STAND

8 row wide and 16 row narrow stacker

2шт.

25

87665593

FRAME

8 row stacker bar main

1шт.

26

87665596

LIFT ARM

parallel, 8 row

2шт.

27

87630536

COUPLING

T, tension link

2шт.

28

87565220

STUD

tension link adjust

2шт.

29

87665594

TUBE,1143 mm L

8 row linkage

2шт.

30

87665597

BEAM

8 row wing

2шт.

31

151-572

RIVET,Pop, 1/4" x 1 1/4"

8шт.

32

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

33

86632566

HEADED PIN,3/4" x 4 1/2", G5

2шт.

34

86632537

THIN NUT,1/2"-13, GB, Thin

8шт.

35

87690645

SPACER

44.45 mm od x 160 mm long

4шт.
