Запчасти Case IH 1220 (39.100.08) - ROW MARKER INNER SECTION, 8 ROW RIGID TRAILING AND 6 ROW WIDE RIGID MOUNTED MACHINES (39) - FRAMES AND BALLASTING

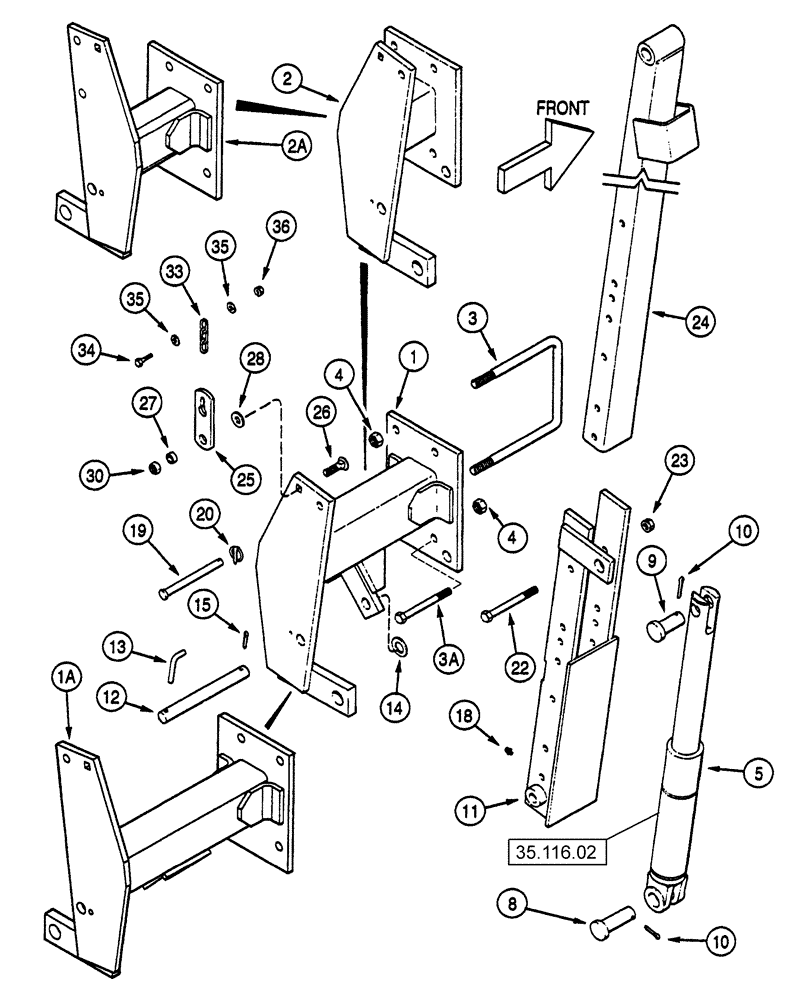

Схема запчастей Case IH 1220 - (39.100.08) - ROW MARKER INNER SECTION, 8 ROW RIGID TRAILING AND 6 ROW WIDE RIGID MOUNTED MACHINES (39) - FRAMES AND BALLASTING
2
19
8
35
28
36
30
1
35.116.02
33
4
14
10
22
25
3a
4
13
3
24
23
2a
20
26
9
10
11
27
18
15
5
12
35
1a
34

Артикул

Название

Примечание

Количество

1

100235C3

BRACKET

assembly, marker right long

1шт.

8 Row Narrow

1шт.

1a

144877C3

BRACKET

Marker, Long RH

1шт.

8 Row Wide

1шт.

2

100234C3

BRACKET

assembly, marker left long

1шт.

8 Row Wide

1шт.

2a

133979C3

BRACKET

Marker, Short LH

1шт.

8 Row Narrow

1шт.

3

1250813C1

U-BOLT

us 5/8"-11 x 7" x 8 1/4", G5, 2" thread

6шт.

3a

86507001

BOLT,Hex, 5/8" - 11 x 8 1/2", Gr 5

4шт.

8 Row Wide and 8 Row Rigid Trailing

1шт.

4

280374

NUT,Hex, 5/8" - 11, Gr 5

8шт.

5

87430675

HYDRAULIC CYLINDER,50.8mm Rod, 204.72mm Stroke

2" x 8"

2шт.

8

86624100

HEADED PIN,1" x 3", G2

2шт.

9

61571C2

HEADED PIN,25.4mm OD x 82.5mm L

1" x 3 1/4"

2шт.

10

80753

COTTER PIN,1/4" x 1 1/2"

4шт.

11

1277690C1

ARM

Marker, RH

1шт.

Shown

1шт.

11

1277689C1

ARM

Marker, LH

1шт.

Not Shown

1шт.

12

100573C2

PIN,22.23mm OD x 210.8mm L

marker pivot

2шт.

13

813175C2

LOCK PIN,9.5mm OD

pivot, "L"

2шт.

14

86624166

WASHER,0.91" ID x 1.5" OD x 0.06" Thk

2шт.

15

87402

COTTER PIN,1/4" OD x 1-1/4" OAL

4шт.

18

86624016

LUBE NIPPLE,3/16" x .47 lg, Drive

2шт.

19

86624073

HEADED PIN,12.7mm OD x 146.05mm L

2шт.

20

A33497

LINCH PIN,4.76mm OD Pin

Klik

2шт.

22

87997

BOLT,Hex, 1/2" - 13 x 5", Gr 5

6шт.

23

86512371

SERRATED NUT,Flg, USR, 1/2"-13

6шт.

24

125899C2

TUBE,1645, 76 mm Length

Marker

2шт.

8 Row Narrow

1шт.

24

125726C2

TUBE

marker

2шт.

125726C2 if the customer has a 40" row spacing, this item must be serviced with 100375C instead all units in the field have been updated-- complaint will be that they can't get the markers to 180"-- if they use the 125726C2

1шт.

8 Row Wide

1шт.

24

366484A1

TUBE,2272 mm Length

Marker

2шт.

8 Row Wide

1шт.

24a

1254154C2

WARNING DECAL

2шт.

Not Shown

1шт.

25

125789C1

BAR

chain pivot

2шт.

26

280502

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

2шт.

27

546587R2

BUSHING

17/32" id x 11/32" long

2шт.

28

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

2шт.

30

86992215

LOCK NUT,1/2"-13, GC

2шт.

33

308187A1

CHAIN

marker actuator 94"

2шт.

8 Row Narrow

1шт.

33

489767R92

CHAIN (AG)

marker actuator

2шт.

8 Row Wide

1шт.

34

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

2шт.

34

86624065

HEADED PIN,3/4" x 7/8", G2

2шт.

35

86624138

WASHER,0.28" ID x 0.75" OD x 0.12" Thk

4шт.

36

9626558

FLANGE NUT,Flg, 1/4"-20

2шт.

Выбрано товаров: 51
