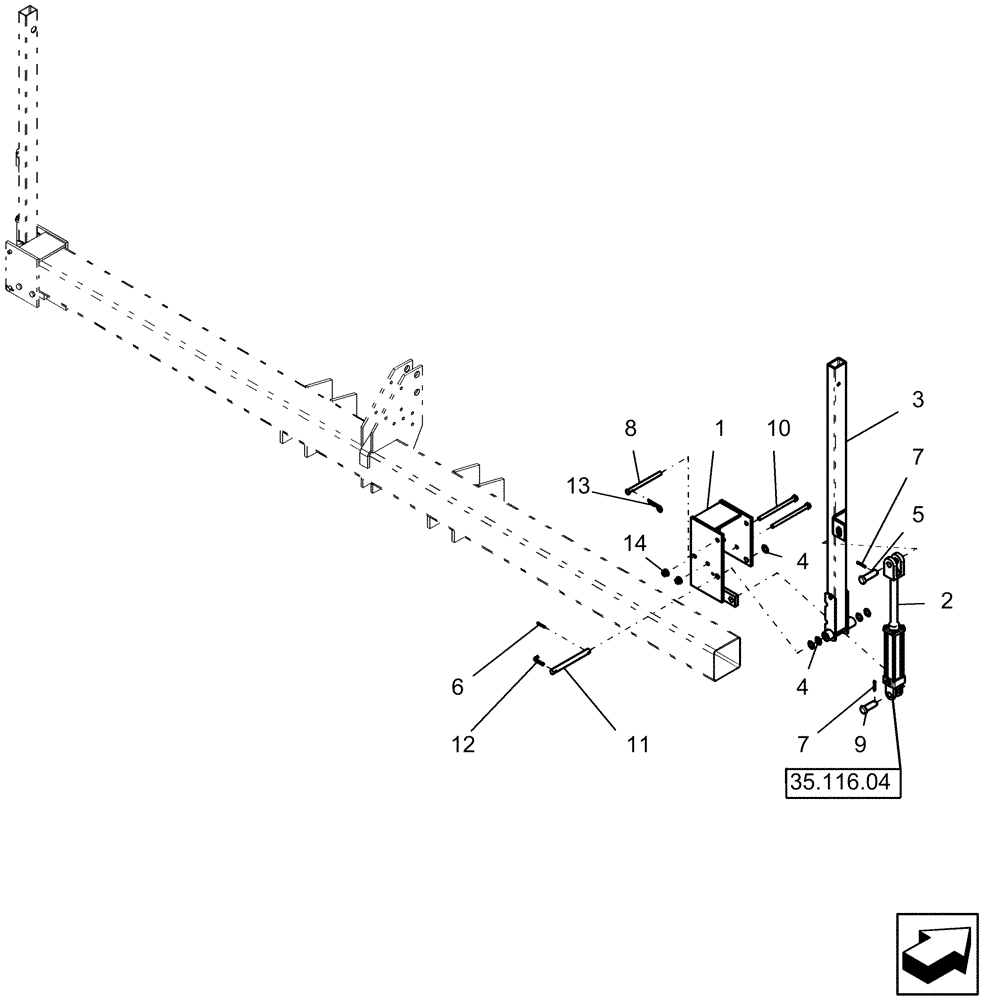

Запчасти Case IH 1220 (39.100.07) - ROW MARKER INNER SECTION, 6 ROW NARROW RIGID MOUNTED MACHINES (39) - FRAMES AND BALLASTING

1

87565599

BRACKET

mount, 6 row narrow marker

2шт.

2

87500930

HYDRAULIC CYLINDER,28.57mm Rod, 204.72mm Stroke

2" x 8", single acting

2шт.

3

95839C2

TUBE

With Decal, RH

2шт.

Includes decal 1254154C2

1шт.

3

1254154C2

WARNING DECAL

2шт.

4

495-81056

WASHER,29/32" x 1 1/2" x 3/64

10шт.

5

810751C1

PIN

headed 1" x 3 1/2"

2шт.

6

87402

COTTER PIN,1/4" OD x 1-1/4" OAL

2шт.

7

80753

COTTER PIN,1/4" x 1 1/2"

3шт.

8

1263946C1

HEADED PIN

15 mm x 215 mm

2шт.

9

86624100

HEADED PIN,1" x 3", G2

2шт.

10

86622984

BOLT,Hex, 5/8" - 11 x 9", Gr 5

4шт.

11

1263878C1

PIVOT PIN

22 mm x 242 mm

2шт.

12

813175C2

LOCK PIN,9.5mm OD

pivot, "L"

2шт.

13

86000109

COTTER PIN

QA

2шт.

14

86977731

FLANGE NUT,Hex Serr, 5/8" - 11, Gr 5

Flg, USR, 5/8"-11

4шт.
