Запчасти Case IH 1220 (39.100.02) - MARKER COMPONENTS 12 ROW WIDE AND 16 ROW NARROW MOUNTED STACKER (39) - FRAMES AND BALLASTING

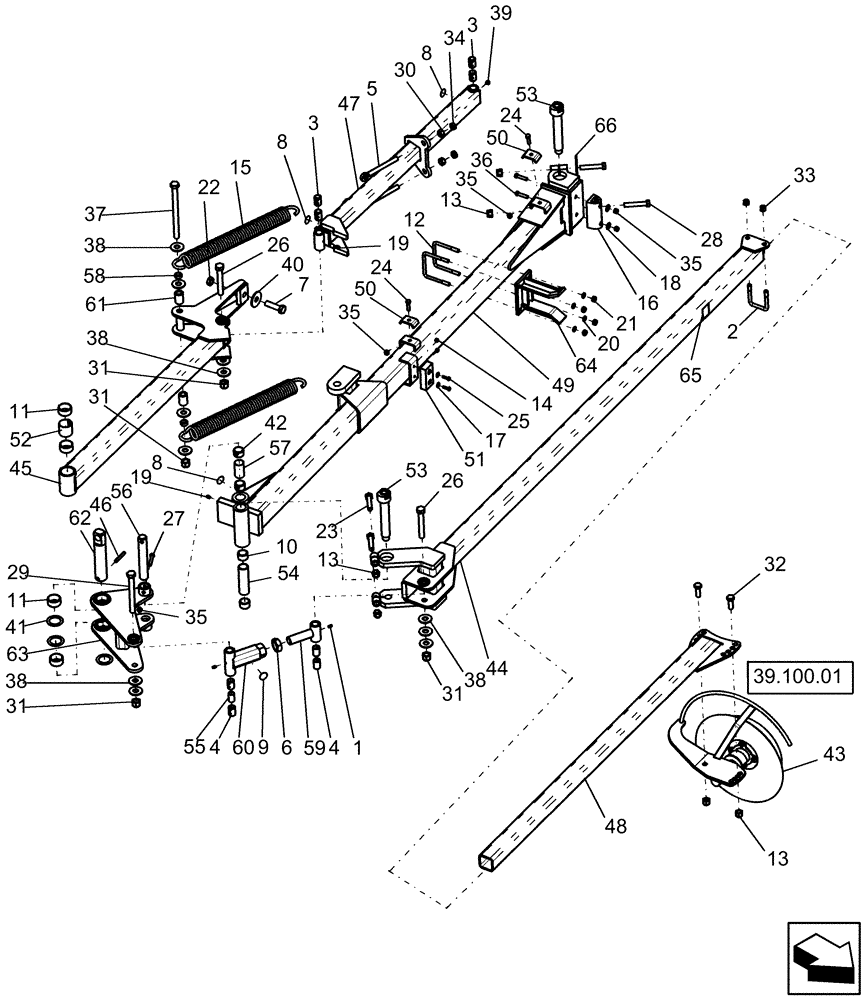

Схема запчастей Case IH 1220 - (39.100.02) - MARKER COMPONENTS 12 ROW WIDE AND 16 ROW NARROW MOUNTED STACKER (39) - FRAMES AND BALLASTING
19
54
31
21
32
53
1
66
3
5
43
42
29
46
60
24
35
8
4
15
53
50
39
65
11
18
9
33
61
35
38
31
20
51
3
8
17
26
12
58
22
38
14
49
41
31
48
16
11
7
45
36
28
57
52
30
13
19
35
10
23
59
24
47
4
25
56
63
34
50
64
38
55
38
27
2
6
31
8
13
62
26
37
40
35
44
39.100.01
13

Артикул

Название

Примечание

Количество

1

87414

LUBE NIPPLE,1/4" - 28

2шт.

2

1344524C1

U-BOLT

us 1/2" x 2 9/18" w x 3 1/2" d 1" thread

1шт.

3

3929

BUSHING

tension 1" x 3/4" x 1 1/2" long

4шт.

4

3929

BUSHING

tension 1" x 3/4" x 1 1/2" long

4шт.

5

4269

EYEBOLT

5/8"-11x 7 3/8"

2шт.

6

425-1420

JAM NUT,Jam, 1 1/4"-7, G5

1шт.

7

6452

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5, Full Thd

1шт.

8

6566

DECAL

grease 50 hours

3шт.

9

6566

DECAL

grease 50 hours

1шт.

10

87420247

BUSHING,31.85mm ID x 38.19mm OD x 25.4mm L

gar mgl 1 1/2" x 1 1/4" x 1" polygon

2шт.

11

6637

BUSHING

composite 2" x 1 3/4" x 1"

4шт.

12

8598

U-BOLT

us 7/16"-14 4 1/8" w 4 1/4" d G5

2шт.

13

85700693

NUT,5/8" - 11, Gr C

6шт.

14

280129

NUT,1/4"-20

2шт.

15

87505304

SPRING

E 13/32" wire x 2 13/32" od x 22 7/8" long

2шт.

16

408657A1

BUMPER

pad, rubber, D-shape 2 1/8" w x 1 7/8" h x 5" long

1шт.

17

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

2шт.

18

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

19

87414

LUBE NIPPLE,1/4" - 28

2шт.

20

81547

LOCK WASHER,7/16"

4шт.

21

84951

NUT,7/16"-14, G2

.385 Thick

4шт.

22

84972

JAM NUT,Jam, 3/4"-10, G2

1шт.

23

87338

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

24

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3шт.

25

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

26

88421

BOLT,Hex, 3/4" - 10 x 5", Gr 5

2шт.

27

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

1шт.

28

280119

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

2шт.

29

280316

BOLT,Hex, 3/4" - 10 x 7", Gr 5

1шт.

30

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

31

280375

NUT,3/4"-10, GC

4шт.

32

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

2шт.

33

86992215

LOCK NUT,1/2"-13, GC

2шт.

34

9636972

JAM NUT,Jam, 5/8"-11, G2

2шт.

35

88902

NUT,3/8"-16

6шт.

36

9706689

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

2шт.

37

413-12160

BOLT,Hex, 3/4" - 10 x 10", Gr 5

1шт.

38

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

11шт.

39

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

1шт.

40

87325443

WASHER,0.78" ID x 2.5" OD x 0.19" Thk

25/32" x 2 1/2" x 3/16"

1шт.

41

87325446

WASHER,1.75" ID x 2.5" OD x 0.07" Thk

1 3/4" id 2 1/2" x 14 ga

3шт.

42

87505190

BUSHING

tension 1 1/2" x 1 1/4" x 1"

2шт.

43

87557031

DISC

endmarker RH

1шт.

Shown

1шт.

43

87557030

DISC

endmarker LH

1шт.

Not Shown

1шт.

44

87628426

ARM

40' marker outer

1шт.

Includes decal 23251

1шт.

44

23251

DECAL

endmarker hazard

1шт.

45

87636039

ARM

40' breakaway outer

1шт.

46

87635861

ROLL PIN

3/8" x 2 1/2"

1шт.

47

87636042

ARM

40' breakaway inner

1шт.

48

87636047

ARM

marker adjustment

1шт.

49

87637988

ARM

40' marker inner RH

1шт.

Shown

1шт.

49

87628423

ARM

40' marker inner LH

1шт.

Not Shown

1шт.

50

427779A1

CLAMP

2 hose

3шт.

51

CA-250

PAD

stop, bifold endmarker

1шт.

52

DR-872

SPACER

walking beam 2" od x 1 7/8" long

1шт.

53

87661322

PIN

offset

2шт.

54

NN-361

SPACER

1 1/2" od x 3/32" thick x 1/2" long

1шт.

55

SQ-803

SPACER

endmarker arm bushing

1шт.

56

TM-111

PIVOT PIN

1 1/4" x 8 1/8"

1шт.

57

TM-115

SPACER

tube, pivot link

1шт.

58

87660733

SPACER

breakaway spring

2шт.

59

TM-147

LINK BLOCK

lever male

1шт.

60

TM-151

LINK BLOCK

lever female adjuster

1шт.

61

87660734

SPACER

breakaway spring

2шт.

62

87660736

PIN

44.45 mm x 161 mm

1шт.

63

87628408

LINK

lug endmarker

1шт.

64

87636048

CRADLE

outer boom marker

1шт.

65

1254154C2

WARNING DECAL

1шт.

66

87690973

BOSS

hydraulic support

1шт.

Выбрано товаров: 74
