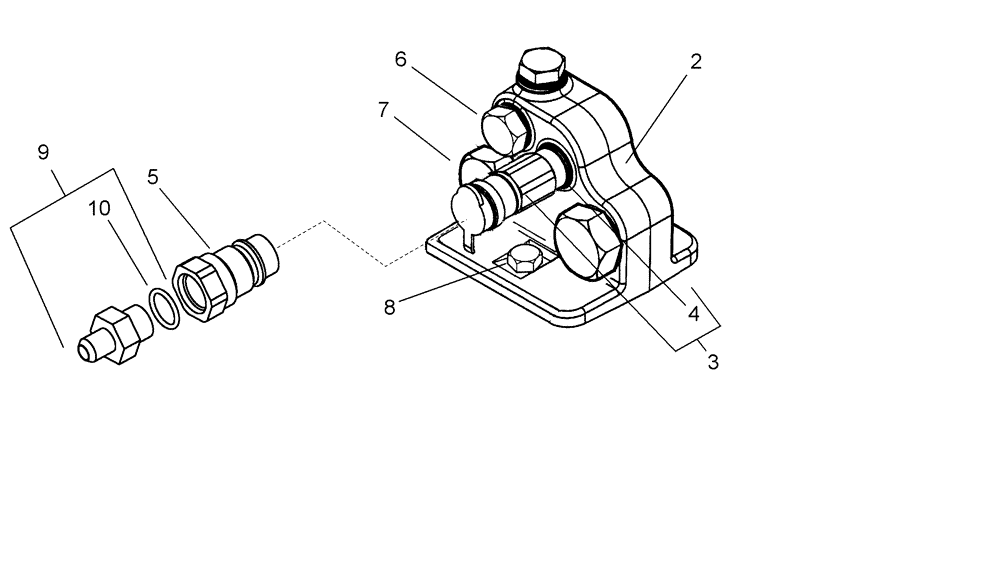

Запчасти Case IH 1220 (35.850.08) - MOTOR CASE DRAIN ATTACHMENT KIT - MX210, 230, 255 AND 285 MAGNUM TRACTORS (35) - HYDRAULIC SYSTEMS

0

367012A2

KIT

motor case drain - MX Magnum

1шт.

2

387929A1

VALVE

coupler, power beyond

1шт.

3

380739A1

COUPLING, BREAK AWAY

Parker 9904-085

1шт.

4

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

5

85999239

QUICK MALE COUPLING,3/8" x 3/4" - 16 ORB

stl 3/8"

1шт.

6

87030025

PLUG,Hex, M18 x 1.5 ORB

3шт.

7

220068A1

PLUG,M27 x 2, ORB

4шт.

8

86624000

BOLT,M10 x 1.5 x 156.58mm, Cl 8.8

2шт.

9

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

1шт.

10

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
