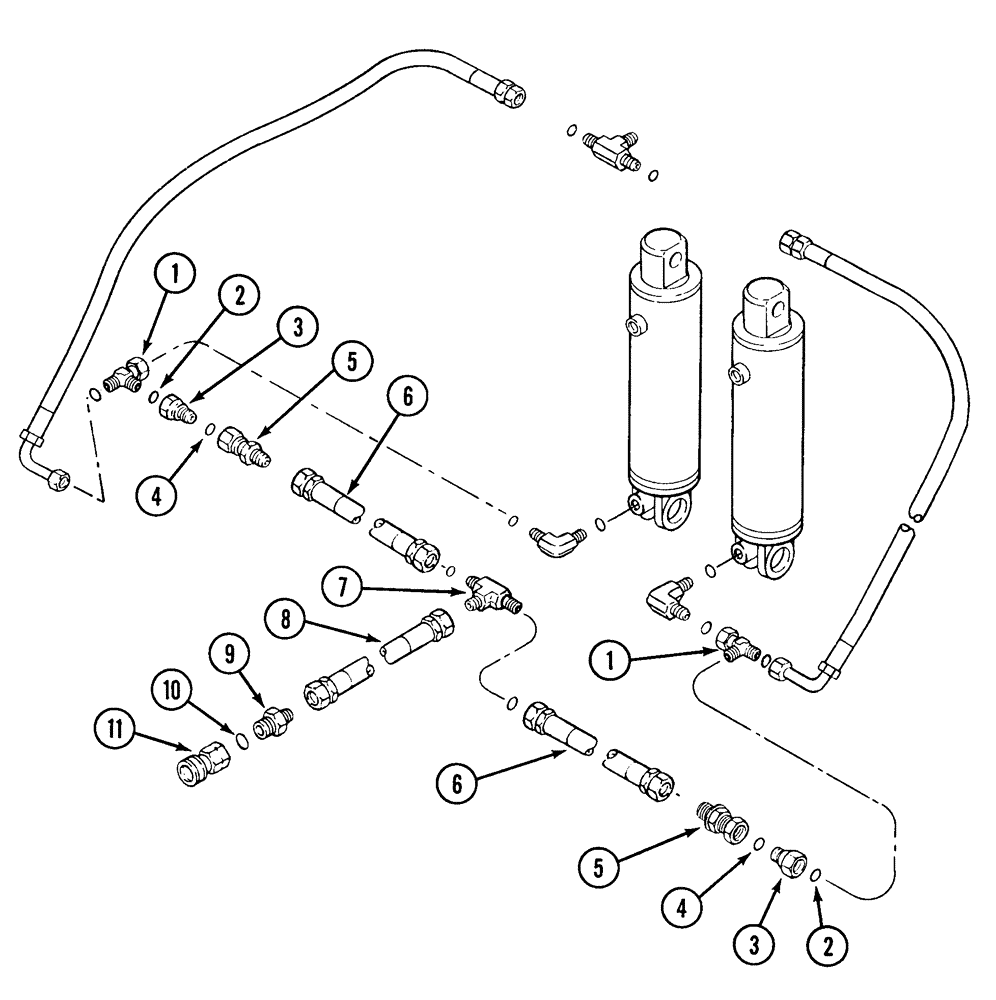

Запчасти Case IH 1220 (35.850.05) - ASSIST WHEEL HYDRAULIC ATTACHMENT KIT, MX180 - MX270 MAXXUM TRACTORS - DISCONTINUED (35) - HYDRAULIC SYSTEMS

0

336284A1

KIT

MX Magnum assist wheel hyd

1шт.

1

201-433

TEE,1"-14 ORFS x 1"-14 Sw Run

2шт.

2

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

3

201-146

REDUCER,13/16"-16 Male x 1"-14 Fem, ORFS

2шт.

4

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

5

335732A1

ADAPTER,13/16"-16 ORFS x 3/4"-16 37 Degree

2шт.

6

91201C1

HYDRAULIC HOSE,12.70 mm ID x 585.00 mm, SAE 100R1

2шт.

7

128996

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

8

91160C1

HYDRAULIC HOSE,12.70 mm ID x 1090.00 mm, SAE 100R1

1шт.

9

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

1шт.

10

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

11

335734A2

COUPLING

hydraulic female quick

1шт.
