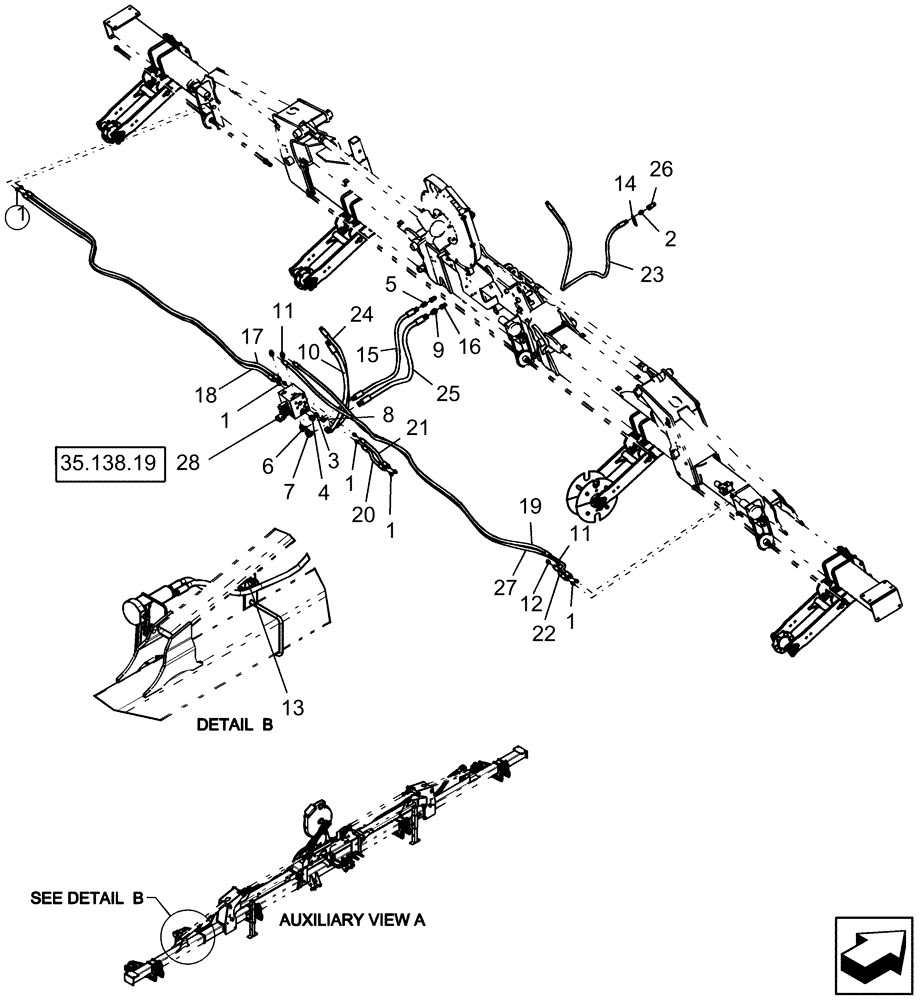

Запчасти Case IH 1220 (35.752.05) - FAN MOTOR HYDRAULICS - 16 ROW MOUNTED STACKER VARIABLE RATE DRIVE (35) - HYDRAULIC SYSTEMS

1

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

10шт.

2

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

1шт.

3

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

1шт.

4

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

1шт.

5

86071

HYD CONNECTOR,7/8" - 14 JIC x 3/4" - 16 ORB

1шт.

6

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

1шт.

7

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

1шт.

8

248992

45 ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

9

577993

HYD CONNECTOR,1-1/16" - 12 JIC x 3/4" - 16 ORB

1шт.

10

21655

HYDRAULIC HOSE

3/4" x 34" fl, 3/4" fjic x 3/4" fjic

1шт.

11

87329788

90 ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/4"-16, O-Ring

3шт.

12

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

1шт.

13

9625178

PLUG,9/16" - 18 ORB

1шт.

14

86984798

TAG

warning, case drain

1шт.

15

87454631

HYDRAULIC HOSE

5/8" x 77" fl

1шт.

16

87506450

QUICK MALE COUPLING

1/2"m-tip x 1/2" fb poppet style

2шт.

17

1284255C1

HYDRAULIC HOSE,9.53mm ID x 4700mm L

3/8" x 185" fl

1шт.

18

1284255C1

HYDRAULIC HOSE,9.53mm ID x 4700mm L

3/8" x 185" fl

1шт.

19

1284304C1

HYDRAULIC HOSE,9.53mm ID x 4445mm L

3/8" x 175" fl

1шт.

20

1284323C1

HYDRAULIC HOSE

3/8" x 15" (380 mm)

1шт.

21

1284323C1

HYDRAULIC HOSE

3/8" x 15" (380 mm)

1шт.

22

1284323C1

HYDRAULIC HOSE

3/8" x 15" (380 mm)

1шт.

23

1284368C1

HYDRAULIC HOSE

3/8" x 100" fl

1шт.

24

1304251C2

HYDRAULIC HOSE

1/2" x 41" fl

1шт.

25

250954A1

HYDRAULIC HOSE

3/4" x 75" (1905 mm) fl

1шт.

26

85999239

QUICK MALE COUPLING,3/8" x 3/4" - 16 ORB

stl 3/8"

1шт.

27

435694A1

HYDRAULIC HOSE

3/8" x 190" fl

1шт.

28

87439659

CONTROL VALVE

assembly, multi-valve with plugs

1шт.
