Запчасти Case IH 1220 (35.752.04) - FAN MOTOR HYDRAULICS, MOUNTED STACKER FRAMES, VR DRIVE, 12 ROW (35) - HYDRAULIC SYSTEMS

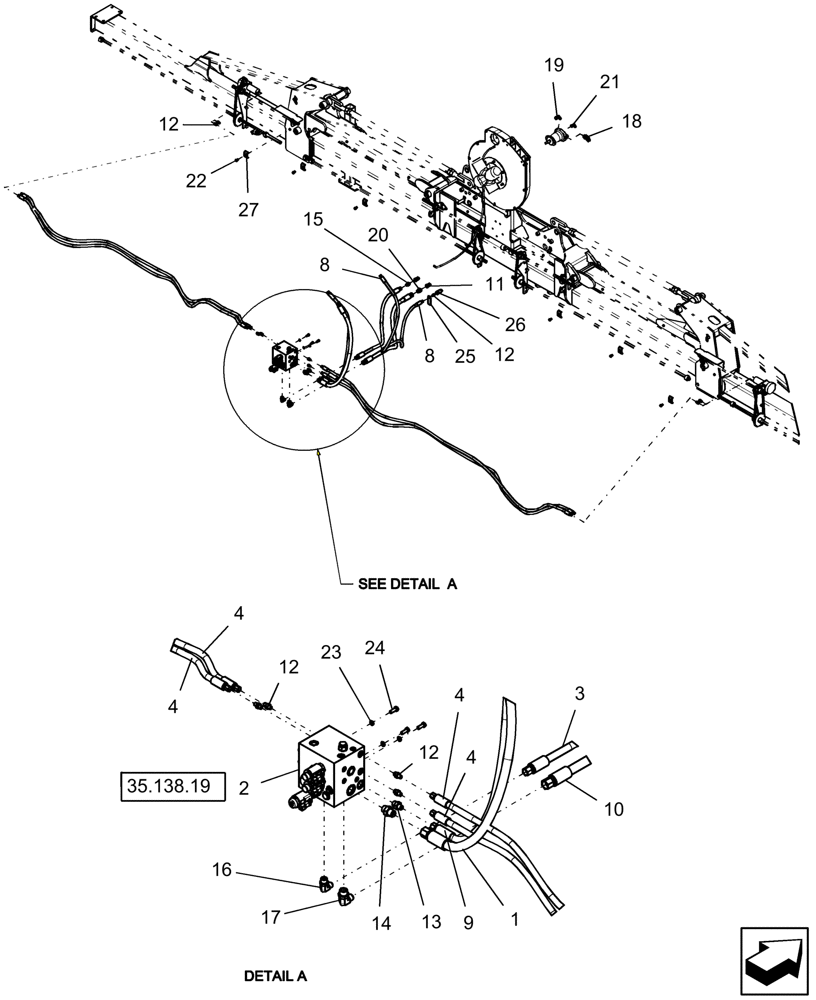

Схема запчастей Case IH 1220 - (35.752.04) - FAN MOTOR HYDRAULICS, MOUNTED STACKER FRAMES, VR DRIVE, 12 ROW (35) - HYDRAULIC SYSTEMS
12
12
1
25
4
22
24
4
12
27
2
4
9
26
20
10
21
8
17
19
14
16
4
11
23
13
12
18
35.138.19
8
3
15

Артикул

Название

Примечание

Количество

1

21655

HYDRAULIC HOSE

3/4" x 34" fl, 3/4" fjic x 3/4" fjic

1шт.

2

87439659

CONTROL VALVE

assembly, multi-valve with plugs

1шт.

3

87454631

HYDRAULIC HOSE

5/8" x 77" fl

1шт.

4

129768C1

HYDRAULIC HOSE

1/4" x 115" fl

4шт.

30" Spacing

1шт.

4

97646C1

HYDRAULIC HOSE,12.70 mm ID x 381.00 mm, SAE 100 R1

1/4" x 150" fl

4шт.

36 & 38" Spacing

1шт.

4

1254526C2

HOSE ASSY.

1/4" x 135" fl

4шт.

40" Spacing

1шт.

8

1284368C1

HYDRAULIC HOSE

3/8" x 100" fl

1шт.

9

1304251C2

HYDRAULIC HOSE

1/2" x 41" fl

1шт.

10

250954A1

HYDRAULIC HOSE

3/4" x 75" (1905 mm) fl

1шт.

11

87506450

QUICK MALE COUPLING

1/2"m-tip x 1/2" fb poppet style

2шт.

12

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

9шт.

13

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

1шт.

14

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

1шт.

15

86071

HYD CONNECTOR,7/8" - 14 JIC x 3/4" - 16 ORB

1шт.

16

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

1шт.

17

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

1шт.

18

330344

45 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

1шт.

19

248974

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 Fem Sw

1шт.

20

577993

HYD CONNECTOR,1-1/16" - 12 JIC x 3/4" - 16 ORB

1шт.

21

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

1шт.

22

255918

BOLT,Hex Serr, 3/8" - 16 x 3/4", 5SPL, Full Thd

6шт.

23

80680

LOCK WASHER,3/8 0.381 CST ZND

3шт.

24

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

25

86984798

TAG

warning, case drain

1шт.

26

85999239

QUICK MALE COUPLING,3/8" x 3/4" - 16 ORB

stl 3/8"

1шт.

27

427779A1

CLAMP

2 hose

6шт.

Выбрано товаров: 29
