Запчасти Case IH 1220 (35.752.03) - FAN MOTOR HYDRAULICS, MOUNTED STACKER FRAMES, VR DRIVE, 8 ROW (35) - HYDRAULIC SYSTEMS

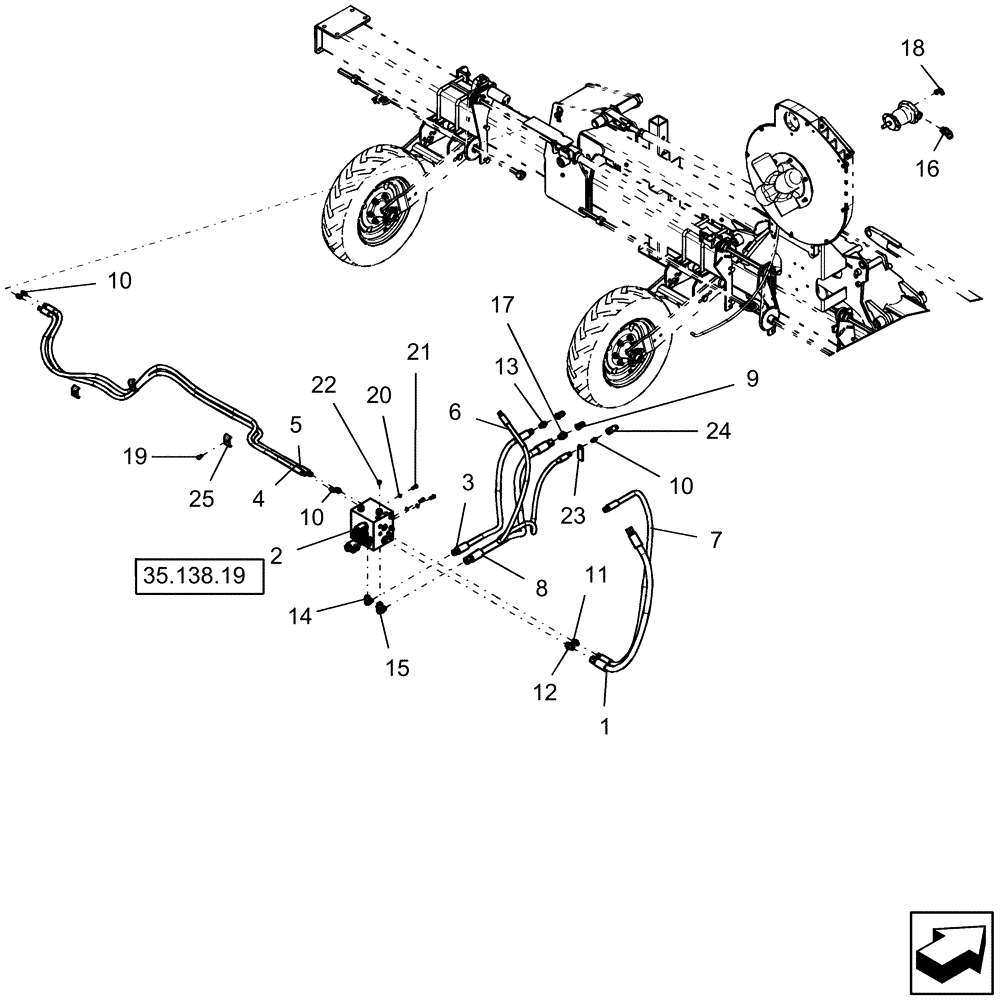

Схема запчастей Case IH 1220 - (35.752.03) - FAN MOTOR HYDRAULICS, MOUNTED STACKER FRAMES, VR DRIVE, 8 ROW (35) - HYDRAULIC SYSTEMS
1
9
14
2
25
10
24
17
10
15
21
22
18
23
4
13
3
16
12
10
8
7
11
5
19
20
35.138.19
6

Артикул

Название

Примечание

Количество

1

21655

HYDRAULIC HOSE

3/4" x 34" fl, 3/4" fjic x 3/4" fjic

1шт.

2

87439659

CONTROL VALVE

assembly, multi-valve with plugs

1шт.

3

87454631

HYDRAULIC HOSE

5/8" x 77" fl

1шт.

4

1279526C1

HYDRAULIC HOSE,6.35 mm ID x 2285.00 mm

1шт.

5

1279526C1

HYDRAULIC HOSE,6.35 mm ID x 2285.00 mm

1шт.

6

1284368C1

HYDRAULIC HOSE

3/8" x 100" fl

1шт.

7

1304251C2

HYDRAULIC HOSE

1/2" x 41" fl

1шт.

8

250954A1

HYDRAULIC HOSE

3/4" x 75" (1905 mm) fl

1шт.

9

87506450

QUICK MALE COUPLING

1/2"m-tip x 1/2" fb poppet style

2шт.

10

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

5шт.

11

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

1шт.

12

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

1шт.

13

86071

HYD CONNECTOR,7/8" - 14 JIC x 3/4" - 16 ORB

1шт.

14

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

1шт.

15

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

1шт.

16

330344

45 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

1шт.

17

577993

HYD CONNECTOR,1-1/16" - 12 JIC x 3/4" - 16 ORB

1шт.

18

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

1шт.

19

255918

BOLT,Hex Serr, 3/8" - 16 x 3/4", 5SPL, Full Thd

3шт.

20

80680

LOCK WASHER,3/8 0.381 CST ZND

3шт.

21

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

22

9625178

PLUG,9/16" - 18 ORB

2шт.

23

86984798

TAG

warning, case drain

1шт.

24

85999239

QUICK MALE COUPLING,3/8" x 3/4" - 16 ORB

stl 3/8"

1шт.

25

427779A1

CLAMP

2 hose

3шт.

Выбрано товаров: 25
