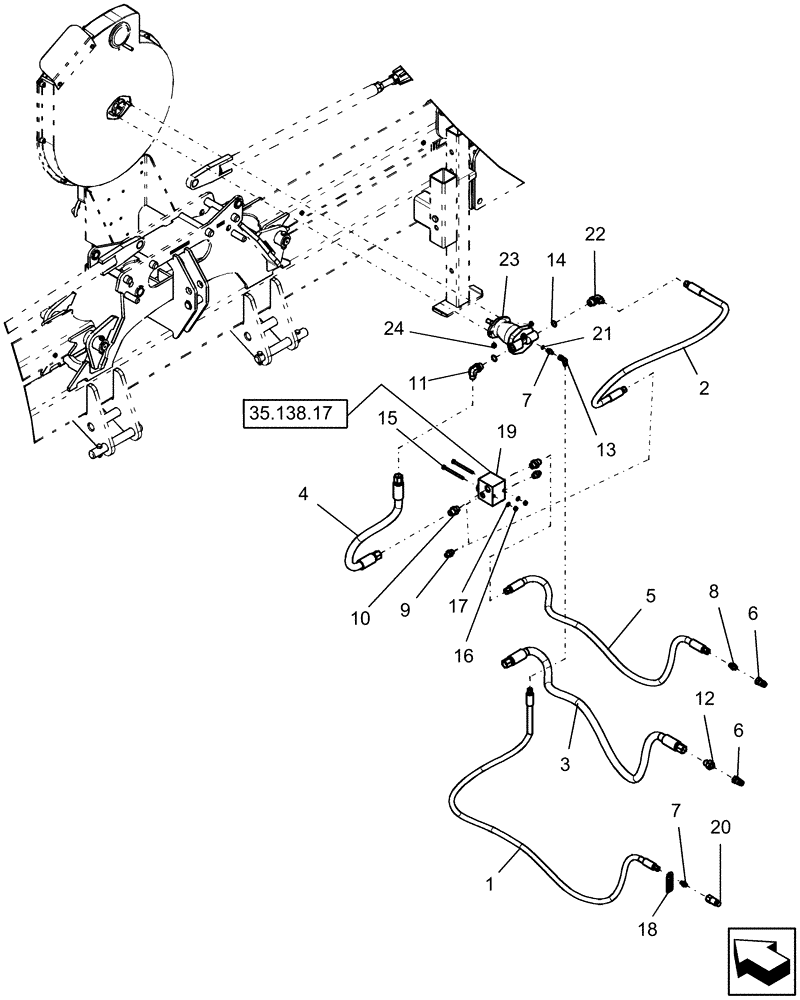

Запчасти Case IH 1220 (35.752.02) - FAN MOTOR HYDRAULICS, MOUNTED STACKER FRAMES, MECHANICAL DRIVE, 8, 12 AND 16 ROW (35) - HYDRAULIC SYSTEMS

1

1284368C1

HYDRAULIC HOSE

3/8" x 100" fl

1шт.

2

1304251C2

HYDRAULIC HOSE

1/2" x 41" fl

1шт.

3

250954A1

HYDRAULIC HOSE

3/4" x 75" (1905 mm) fl

1шт.

4

345691A1

HYDRAULIC HOSE

3/4" x 36 (915 mm) fl

1шт.

5

90879C1

HYDRAULIC HOSE,12.70 mm ID x 2030.00 mm, SAE 100R1

1шт.

6

87506450

QUICK MALE COUPLING

1/2"m-tip x 1/2" fb poppet style

2шт.

7

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

1шт.

8

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

1шт.

9

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

2шт.

10

330344

45 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

2шт.

11

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

1шт.

8 row only

1шт.

12

577993

HYD CONNECTOR,1-1/16" - 12 JIC x 3/4" - 16 ORB

1шт.

13

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

1шт.

8 row only

1шт.

14

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

4шт.

15

86505980

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

2шт.

16

9628503

NUT,3/8"-16, G5

2шт.

17

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

18

86984798

TAG

warning, case drain

1шт.

19

296823A2

VALVE

check

1шт.

20

85999239

QUICK MALE COUPLING,3/8" x 3/4" - 16 ORB

stl 3/8"

1шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

22

87329785

ELBOW,90 Degree, 1-1/16" - 12 ORB x 3/4" - 16 JIC

1шт.

23

278188A1

MOTOR

9.8 cm3 (.6 in3) displacement, fan drive

1шт.

23

278188A1R

REMAN-HYD MOTOR

Remanufactured Hydraulic Pump

1шт.

23

278188A1C

REMAN-HYD MOTOR

Return Number

1шт.

24

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.
