Запчасти Case IH 1220 (35.720.30) - FAN AND ELECTRONIC ASSEMBLY MOUNTING, MOUNTED STACKER (ALL SIZES, VR AND MECHANICAL) (35) - HYDRAULIC SYSTEMS

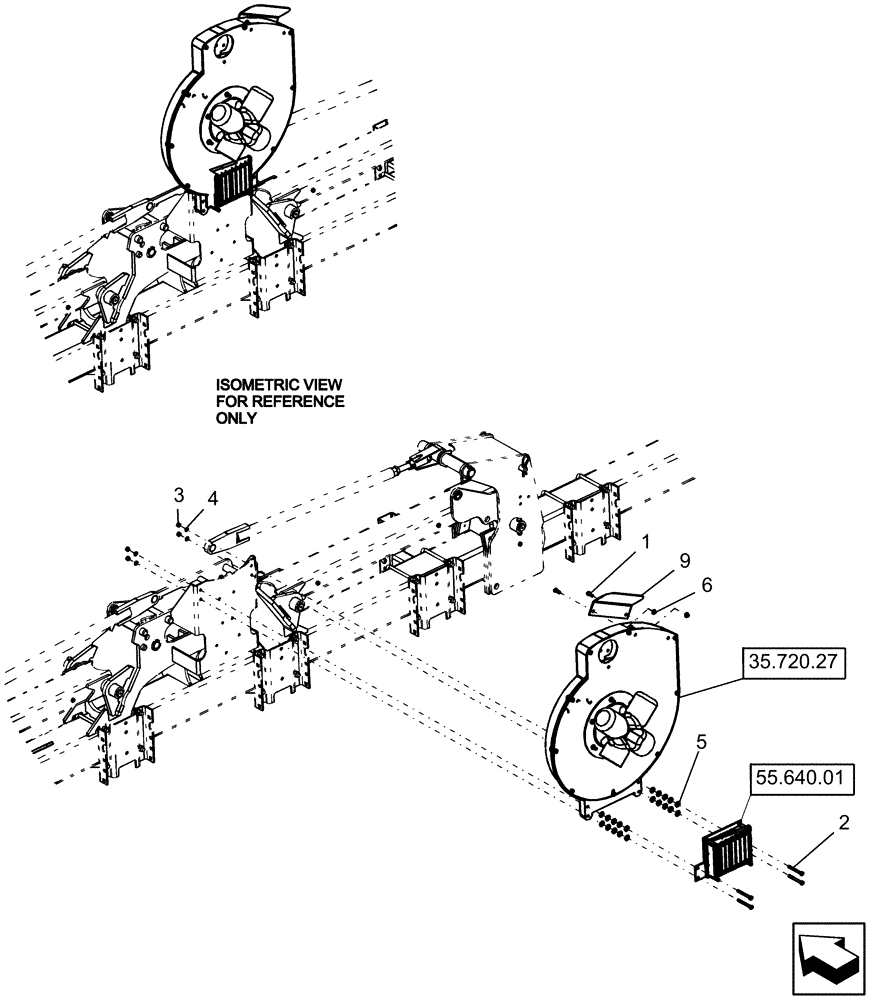

Схема запчастей Case IH 1220 - (35.720.30) - FAN AND ELECTRONIC ASSEMBLY MOUNTING, MOUNTED STACKER (ALL SIZES, VR AND MECHANICAL) (35) - HYDRAULIC SYSTEMS
4
3
55.640.01
35.720.27
2
5
9
1
6

Артикул

Название

Примечание

Количество

1

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

2

88959

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

4шт.

3

9628503

NUT,3/8"-16, G5

4шт.

4

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

5

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

20шт.

6

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

9

87653380

DEFLECTOR

fan outlet

1шт.

Выбрано товаров: 7
