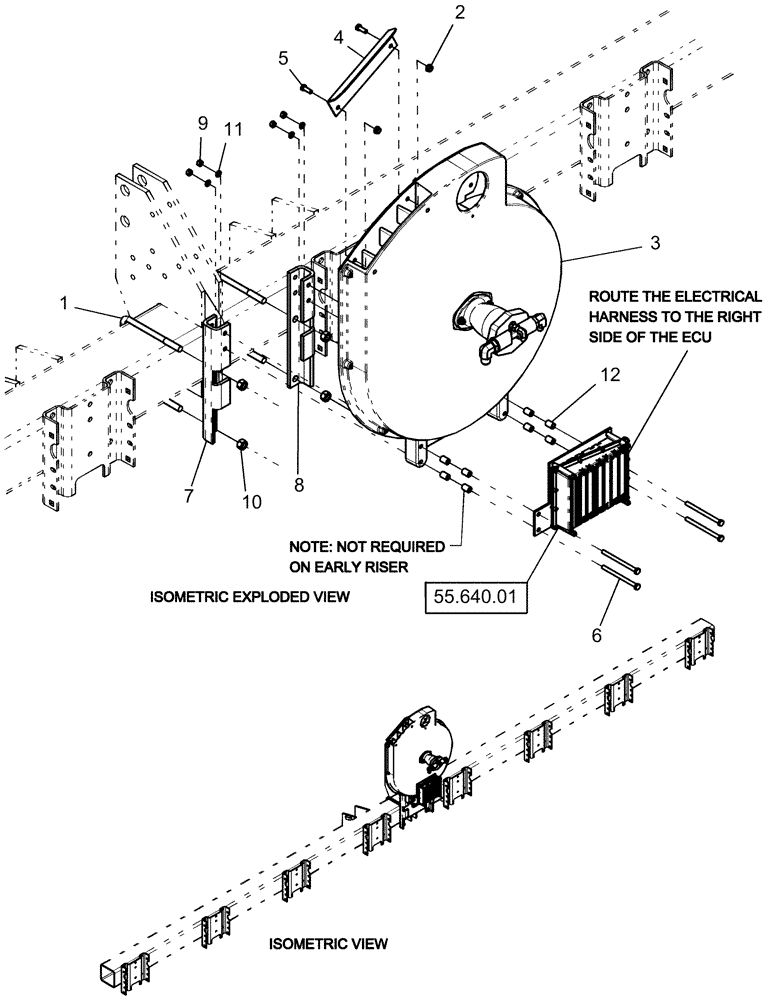

Запчасти Case IH 1220 (35.720.28) - FAN AND ELECTRONIC ASSEMBLY MOUNTING, RIGID MOUNTED (35) - HYDRAULIC SYSTEMS

1

1250813C1

U-BOLT

us 5/8"-11 x 7" x 8 1/4", G5, 2" thread

2шт.

2

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

3

341453A3

FAN

planter assembly

1шт.

4

87653380

DEFLECTOR

fan outlet

1шт.

5

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

6

280177

BOLT,Hex, 3/8" - 16 x 5", Gr 5

4шт.

7

366185A2

BRACKET

fan mounting LH

1шт.

8

366186A2

BRACKET

fan mounting RH

1шт.

9

9628503

NUT,3/8"-16, G5

4шт.

10

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

11

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

12

814812C1

SPACER

spring tooth

8шт.
