Запчасти Case IH 1220 (35.720.26) - PRIMARY FERTILIZER DRIVE SYSTEM, DRY FERTILIZER, 8 ROW RIGID TRAILING (35) - HYDRAULIC SYSTEMS

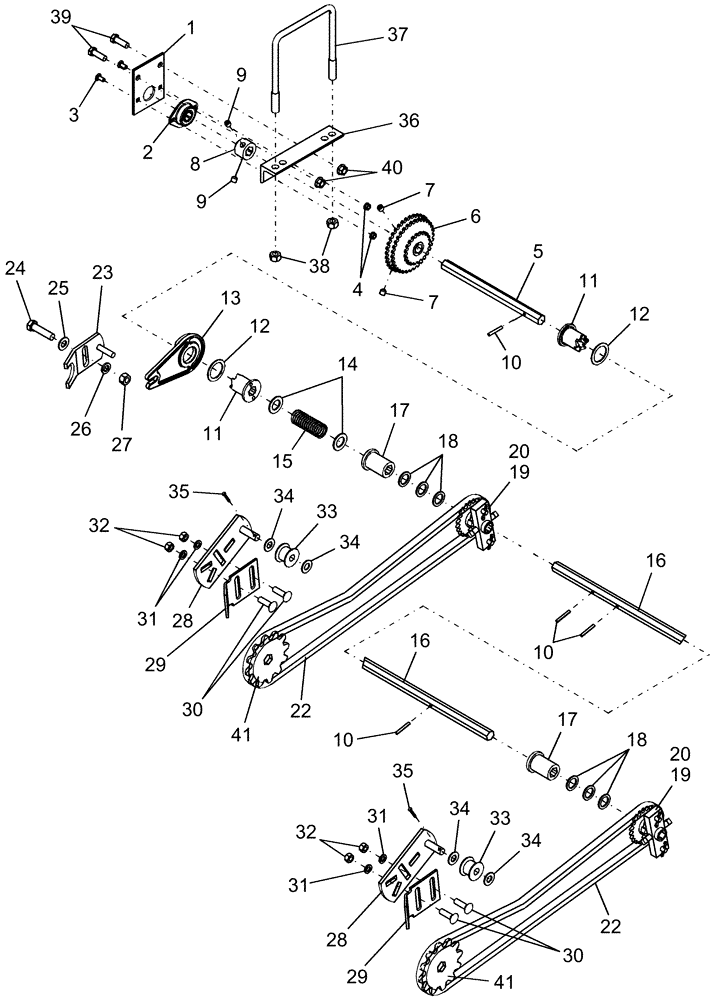

Схема запчастей Case IH 1220 - (35.720.26) - PRIMARY FERTILIZER DRIVE SYSTEM, DRY FERTILIZER, 8 ROW RIGID TRAILING (35) - HYDRAULIC SYSTEMS
39
20
30
10
10
41
34
28
37
26
36
17
7
29
34
9
19
18
18
34
30
38
31
11
32
35
41
28
2
24
31
22
17
27
12
10
7
33
29
35
25
13
1
14
15
40
3
16
31
33
22
8
16
23
4
20
19
9
6
11
12
32
34
5

Артикул

Название

Примечание

Количество

1

87461090

PLATE

bearing support

1шт.

2

134158C92

BALL BEARING,22.5mm ID

7/8 hex flange

1шт.

3

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

2шт.

4

145458

SERRATED NUT,5/16"-18 GR 5 ZND

2шт.

5

90844C1

SHAFT

Drive, Hex, 22 (7/8") x 330 mm (13") long

1шт.

6

141063C2

SPROCKET

assembly, drive clutch

1шт.

7

86624123

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

2шт.

8

87461085

SPROCKET

collar locking

1шт.

9

86624123

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

2шт.

10

86624099

PIN,1/4" x 1 3/4", Coiled

4шт.

11

87502662

CLUTCH

drive LH

2шт.

12

1267994C2

THRUST WASHER,42.06mm ID x 57.15mm OD x 2.7mm Thk

clutch

2шт.

13

87502661

PLATE

clutch throw out

1шт.

14

86624172

WASHER,1.03" ID x 1.75" OD x 0.12" Thk

2шт.

15

87461083

SPRING

clutch

1шт.

16

1986178C1

SHAFT

Drive, Hex, 22 (7/8") x 1676 mm (66") Long

1шт.

17

90335C2

BUSHING

drive shaft

2шт.

18

86624170

WASHER,1.03" ID x 1.5" OD x 0.12" Thk

6шт.

19

1277926C92

RATCHET

23 tooth RH

2шт.

20

483-15012

SET SCREW,Hex Soc, 1/2"-13 x 3/4"

2шт.

22

1277740C91

CHAIN (AG)

A2050 main drive (Trail), use 55 links from 569089R91 bulk chain plus 1-1277928C91 connecting link

2шт.

22

569089R91

CHAIN (AG),10' L, 1.0" Pitch

#2050 - 10' d/p roller

1шт.

22

1277928C91

LINK

connecting #2050

1шт.

23

87461084

BRACKET

cast clutch throw out

1шт.

24

280233

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

1шт.

25

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

5шт.

26

12034871

WASHER

5/8"

1шт.

27

280374

NUT,Hex, 5/8" - 11, Gr 5

1шт.

28

87461086

PLATE

idler

2шт.

29

87461087

SCRAPER

chain plate

2шт.

30

280185

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

4шт.

31

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

32

280431

NUT,1/2"-13, G5

4шт.

33

1277726C1

ROLLER,48mm OD x 34mm L

idler

2шт.

34

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

4шт.

35

394818

COTTER PIN,M5 x 25

2шт.

36

87461088

SUPPORT

angle bearing

1шт.

37

1250813C1

U-BOLT

us 5/8"-11 x 7" x 8 1/4", G5, 2" thread

1шт.

38

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

39

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

40

86512371

SERRATED NUT,Flg, USR, 1/2"-13

2шт.

41

1277737C1

SPROCKET

12 tooth

2шт.

Выбрано товаров: 42
