(35.720.24) - CLUTCH DRIVE, SPROCKET AND BEARING ASSEMBLY

Запчасти Case IH 1220 (35.720.24) - CLUTCH DRIVE, SPROCKET AND BEARING ASSEMBLY (35) - HYDRAULIC SYSTEMS

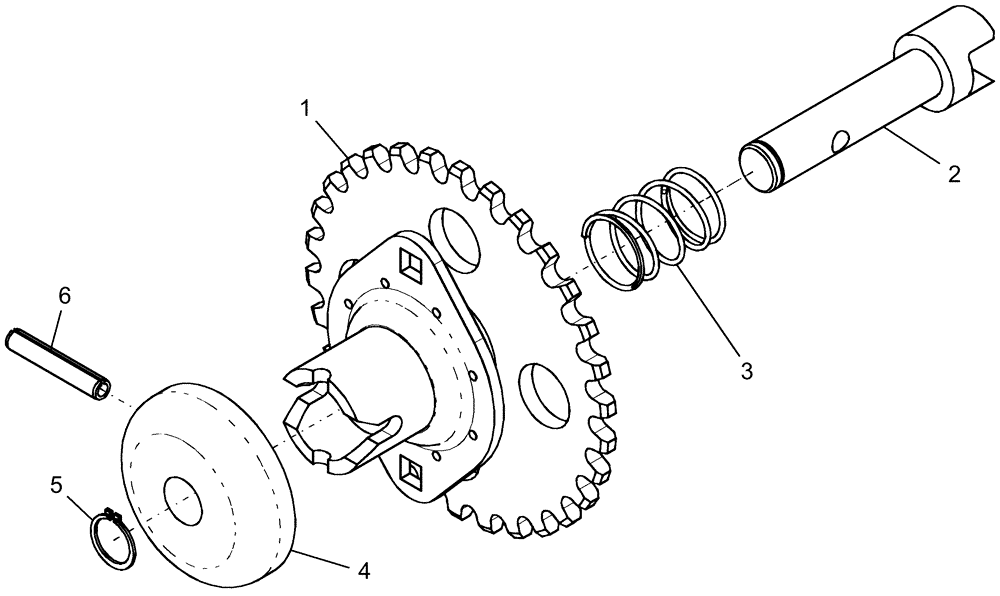

Схема запчастей Case IH 1220 - (35.720.24) - CLUTCH DRIVE, SPROCKET AND BEARING ASSEMBLY (35) - HYDRAULIC SYSTEMS
1
3
5
2
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

86991726

BEARING ASSY

drive with sprocket and bearing

1шт.

1

87410081

BEARING ASSY

Sprocket 30 Tooth

1шт.

2

87410082

CLUTCH INPUT SHAFT

drive

1шт.

3

87410083

COMPRESSION SPRING

for granular chemical clutch

1шт.

4

87410084

KNOB

clutch, granular chemical

1шт.

5

515259

SNAP RING,#62, Ext

1шт.

6

87406

LOCK PIN,6.35mm OD x 38.1mm L, Slotted

1шт.
