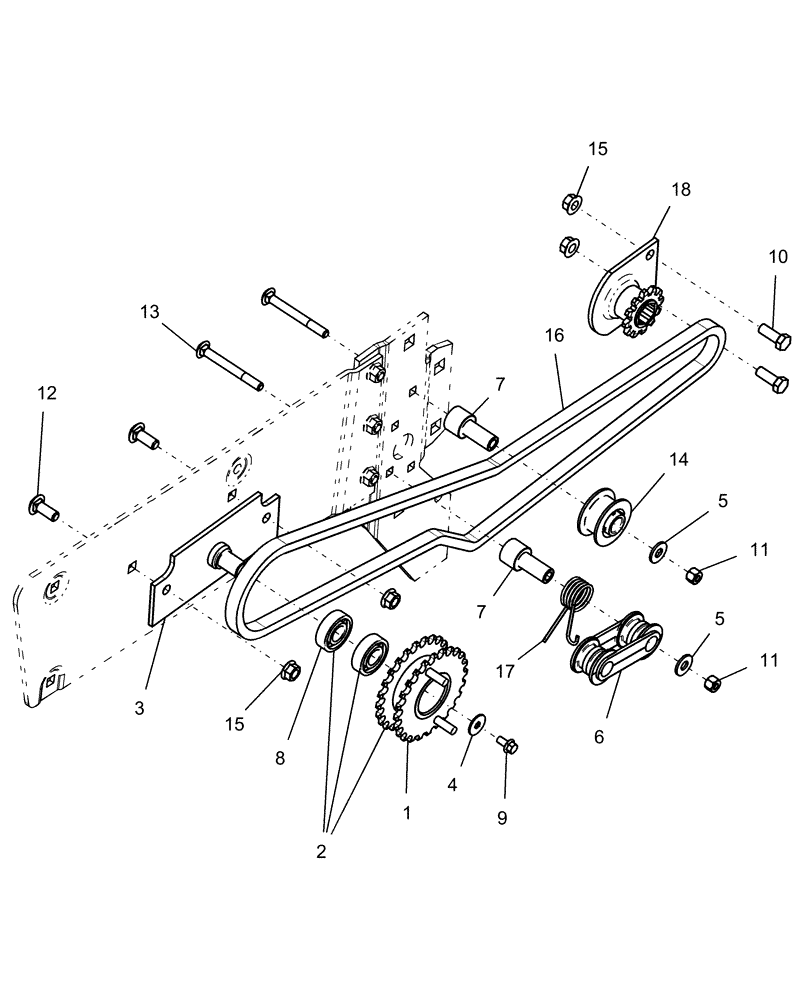

Запчасти Case IH 1220 (35.720.22) - ADVANCED SEED METER DRIVE MOUNTED STACKER (35) - HYDRAULIC SYSTEMS

1

87407282

SPROCKET

and hub

1шт.

2

87407490

SPROCKET

and bearing assembly, Model Year 2011 And Prior

1шт.

2

84381729

SPROCKET

Meter Drive Single, Model Year 2012

1шт.

2

84304533

SPROCKET

Meter Drive Double, Model Year 2012

1шт.

3

303068A1

BRACKET

bearing spindle mount assembly

1шт.

4

86624140

WASHER,0.28" ID x 0.88" OD x 0.06" Thk

1шт.

5

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

2шт.

6

87458905

ROLLER

chain tension

1шт.

7

87459942

SPINDLE

chain tensioner

1шт.

8

303247A1

BALL BEARING

vacuum seed meter

2шт.

9

86521549

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

10

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

11

86050277

NUT,5/16"-18, GB

2шт.

12

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

13

281006

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3", Gr 5

2шт.

14

87558401

ROLLER

speed compensator

1шт.

15

247780

SERRATED NUT,Flg, USR, 3/8"-16

7шт.

16

237999A1

CHAIN (AG)

seed meter drive

1шт.

Use 119 Links From 475879R91 Bulk Chain, Plus (1) 241-2314 Connecting Link

1шт.

16

475879R91

CHAIN (AG)

#41 - 10' s/p roller

1шт.

16

84373804

CHAIN

#41, 60", Model Year 2012

1шт.

16

44428

CONNECTING LINK

#41 single pitch connecting

1шт.

17

87505096

TENSION SPRING

idler

1шт.

18

413712A1

BEARING ASSY,1.90625" OD x 1.875"

12 tooth with bearing

1шт.

100

87463268

KIT

row unit drive update

1шт.

Includes Ref #7, 8, 15 and 18

1шт.
