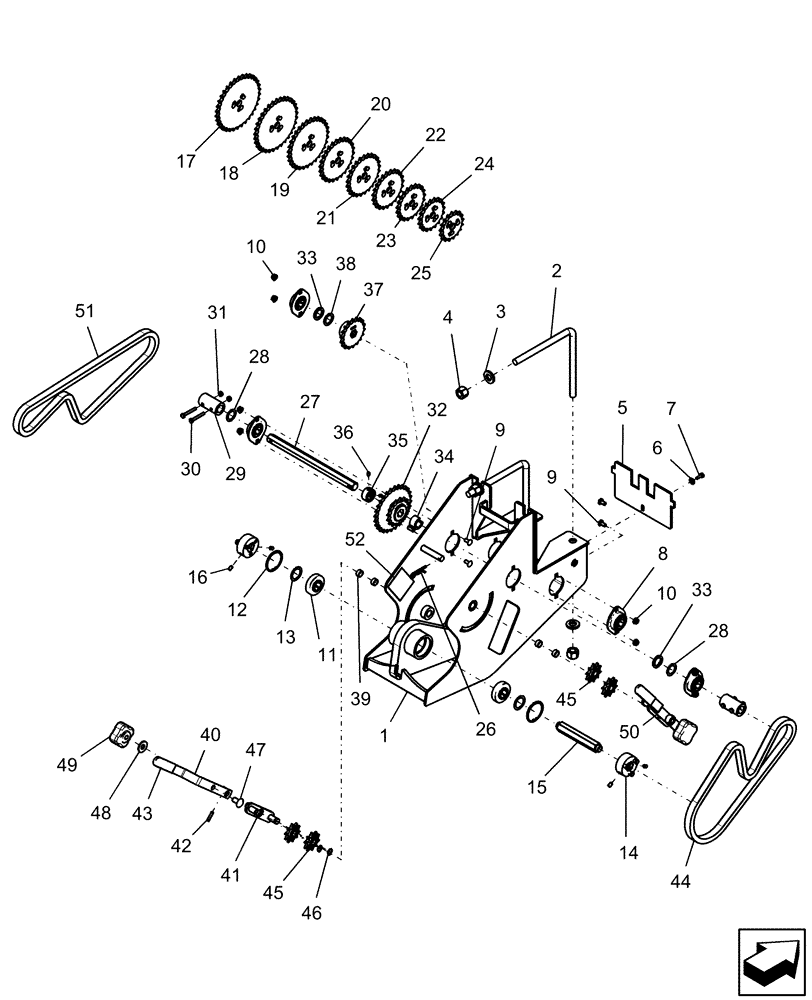

Запчасти Case IH 1220 (35.720.21) - DRIVE - MECHANICAL TRANSMISSION (35) - HYDRAULIC SYSTEMS

1

87740977

FRAME

transmission

1шт.

2

141025C3

BOLT

L 3/4"-10

2шт.

3

86624163

WASHER,0.81" ID x 1.5" OD x 0.22" Thk

4шт.

4

280375

NUT,3/4"-10, GC

4шт.

5

87743271

COVER

front

1шт.

6

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

1шт.

7

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

8

87566583

FLANGED BEARING,22.25mm ID

assembly, flangette

4шт.

9

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

8шт.

10

145458

SERRATED NUT,5/16"-18 GR 5 ZND

8шт.

11

87746596

BALL BEARING,1" ID x 2.44" OD

1" hex bore

2шт.

12

32324

SNAP RING,2.44", Int, #244

2шт.

13

87304341

WASHER,1.27" ID x 1.75" OD x 0.03" Thk

2шт.

14

87746647

HUB

assembly, quick change

2шт.

15

87739184

SHAFT

rigid quick change

1шт.

16

483-1318

SET SCREW,Hex Soc, 5/16"-18 x 1/2"

5шт.

17

87592214

SPROCKET

quick change 34 tooth

1шт.

18

87592213

SPROCKET

quick change 33 tooth

1шт.

19

87592212

SPROCKET

quick change 31 tooth

1шт.

20

87592211

SPROCKET

quick change 26 tooth

1шт.

21

87592210

SPROCKET

quick change 25 tooth

1шт.

22

87592209

SPROCKET

quick change 23 tooth

1шт.

23

87592208

SPROCKET

quick change 21 tooth

1шт.

24

87592207

SPROCKET

quick change 19 tooth

1шт.

25

87592206

SPROCKET

quick change 17 tooth

1шт.

26

136-163

HAIR PIN COTTER,Int, 5/16" x .177

1шт.

27

87739161

DRIVEN SHAFT

HT hex

1шт.

28

86624168

WASHER,1.03" ID x 1.5" OD x 0.03" Thk

2шт.

29

400583A1

COUPLING,22.48mm ID x 38.1mm OD x 70mm L

seed drive

2шт.

30

87404

BOLT,Hex, 1/4" - 20 x 2", Gr 5

4шт.

31

280129

NUT,1/4"-20

4шт.

32

87631085

SPROCKET

double, 16T-28T, range selector

1шт.

33

86624170

WASHER,1.03" ID x 1.5" OD x 0.12" Thk

2шт.

34

87627709

SPACER

hex sprocket

1шт.

35

22224

COLLAR

lock, 7/8" id

1шт.

36

84-1256

SET SCREW,Hex Soc, 1/4"-28 x 3/8"

2шт.

37

87610744

SPROCKET

50B18

1шт.

38

86624169

WASHER,1.03" ID x 1.5" OD x 0.06" Thk

1шт.

39

87740329

BUSHING

chain tensioner 15.88 x 19.05 x 9.53 mm long

4шт.

40

87740280

ARM

tension LH

1шт.

41

87739189

IDLER

assembly

2шт.

42

438-11618

LOCK PIN,1/4" x 1 1/8", Slotted

2шт.

43

1958265C1

GRIP

handle vinyl 1/4" x 1" x 4" black

2шт.

44

87739135

DRIVE CHAIN

transmission

1шт.

45

87536428

SPROCKET

50 x 10 idler

4шт.

46

103-1162

SNAP RING,#62, Ext

4шт.

47

280499

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

48

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

2шт.

49

329636A1

KNOB

1/2"-13, G2B

2шт.

50

87740282

ARM

tensioner RH

1шт.

51

87739134

DRIVE CHAIN

transmission

1шт.

52

87755459

DECAL

transmission operation

1шт.
