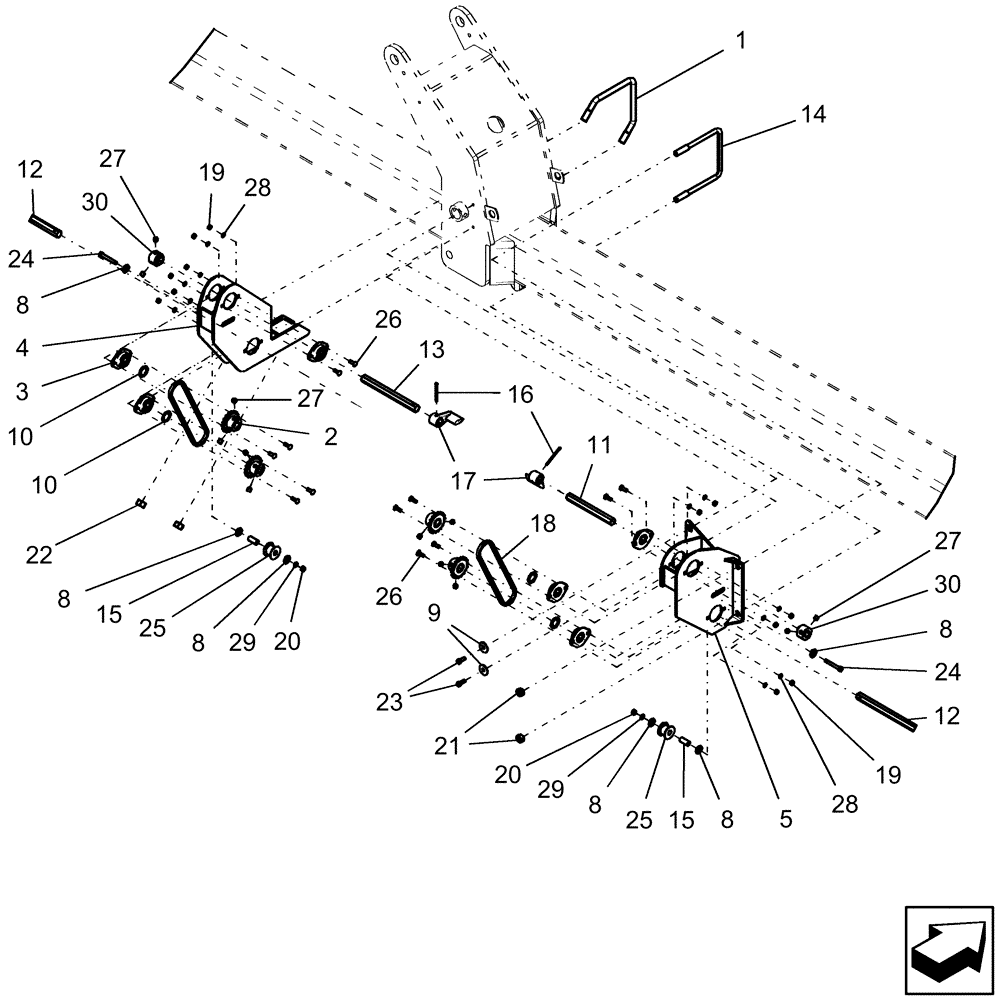

Запчасти Case IH 1220 (35.720.17) - CROSS OVER DRIVE - 12RW MOUNTED STACKER (35) - HYDRAULIC SYSTEMS

1

87508091

SPECIAL BOLT

V 3/4"-10 x 7" G5

1шт.

2

437627A1

SPROCKET

#40 18 tooth

4шт.

3

134158C92

BALL BEARING,22.5mm ID

7/8 hex flange

6шт.

4

440747A1

BRACKET

drive, main W

1шт.

5

440753A1

BRACKET

drive, wing W LH

1шт.

5

440749A1

BRACKET

drive, wing W RH

1шт.

8

86624186

WASHER,0.41" ID x 1.12" OD x 0.13" Thk

6шт.

9

86637594

WASHER,0.41" ID x 1.5" OD x 0.12" Thk

2шт.

10

495-81187

WASHER,1 1/16" x 1 5/8" x .065"

4шт.

11

411861A1

DRIVE SHAFT

hex 7/8" x 215 mm

2шт.

12

402955A1

DRIVE SHAFT

7/8" hex x 2660 mm

2шт.

12 Row Wide

1шт.

36" Spacing

1шт.

12

402955A1

DRIVE SHAFT

7/8" hex x 2660 mm

2шт.

12 Row Wide

1шт.

38 & 40" Spacing

1шт.

13

328060A2

DRIVE SHAFT

hex 7/8" x 260 mm

2шт.

14

1250813C1

U-BOLT

us 5/8"-11 x 7" x 8 1/4", G5, 2" thread

1шт.

15

381930A1

BUSHING,10.34mm ID x 15.88mm OD x 36.5mm L

chain idler

2шт.

16

86523959

COTTER PIN,3/16" x 2 1/2"

2шт.

17

303578A1

COUPLING

drive

2шт.

18

448252A1

CHAIN

cross over drive, 12 row wide

2шт.

19

9635082

NUT,5/16" - 18, Gr 5

12шт.

20

9628503

NUT,3/8"-16, G5

2шт.

21

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

22

280954

NUT,3/4"-10, G5

2шт.

23

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

24

88444

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

2шт.

25

1277726C1

ROLLER,48mm OD x 34mm L

idler

2шт.

26

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

12шт.

27

86624123

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

12шт.

28

80681

LOCK WASHER,5/16"

12шт.

29

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

30

87461085

SPROCKET

collar locking

6шт.

31

446633A1

SHIM

adjusting

1шт.

Not Shown

1шт.
