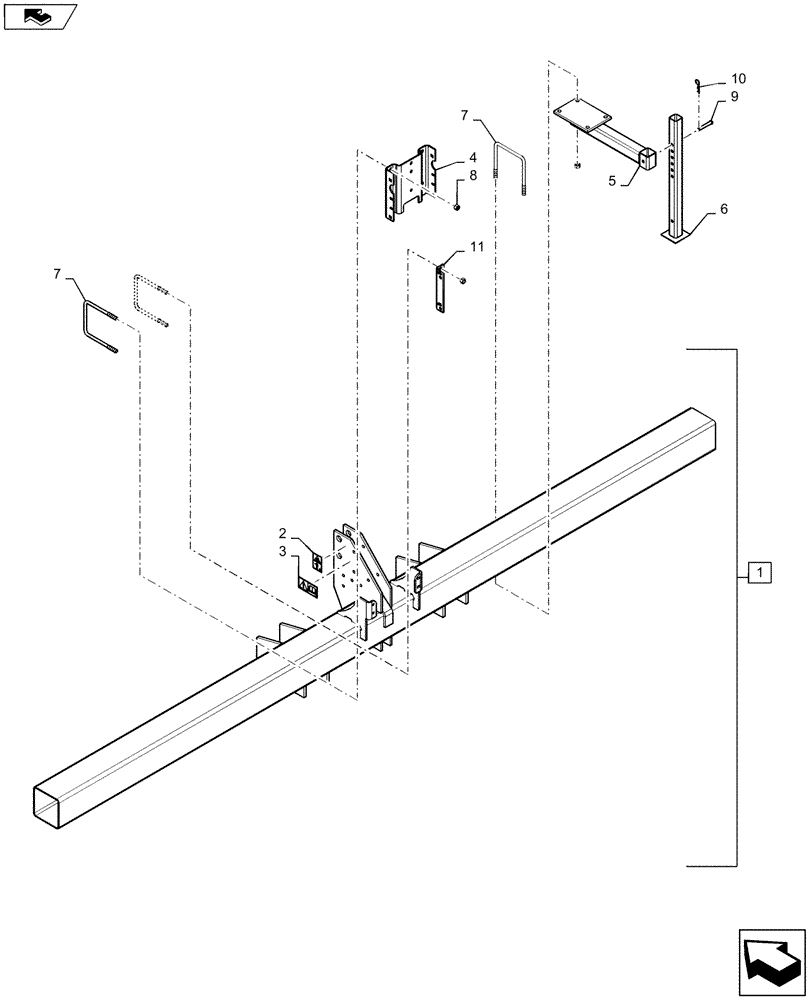

Запчасти Case IH 1215 (39.902.AA[09]) - TOOLBAR 8 ROW 40 INCH (39) - FRAMES AND BALLASTING

1

47535214

PACKAGE

Toolbar 8 Row 40" Painted, Incl 2 - 3

1шт.

2

47433182

DECAL

Warning Chemical Hazard

1шт.

3

47358801

CAUTION DECAL

ISO

1шт.

4

141728C5

BRACKET

Head 7 X 7

8шт.

5

220702A1

SUPPORT

Stand

2шт.

6

134121C1

SUPPORT TUBE

Parking

2шт.

7

1250813C1

U-BOLT

5/8" 7 X 7

1шт.

8

280374

NUT,Hex, 5/8" - 11, Gr 5

1шт.

9

86624062

HEADED PIN,12.7mm OD x 88.9mm L

2шт.

10

1980543C1

HAIR PIN COTTER

3/16"

2шт.

11

87462142

ANGLE

Head Bracket Extention Painted

2шт.
