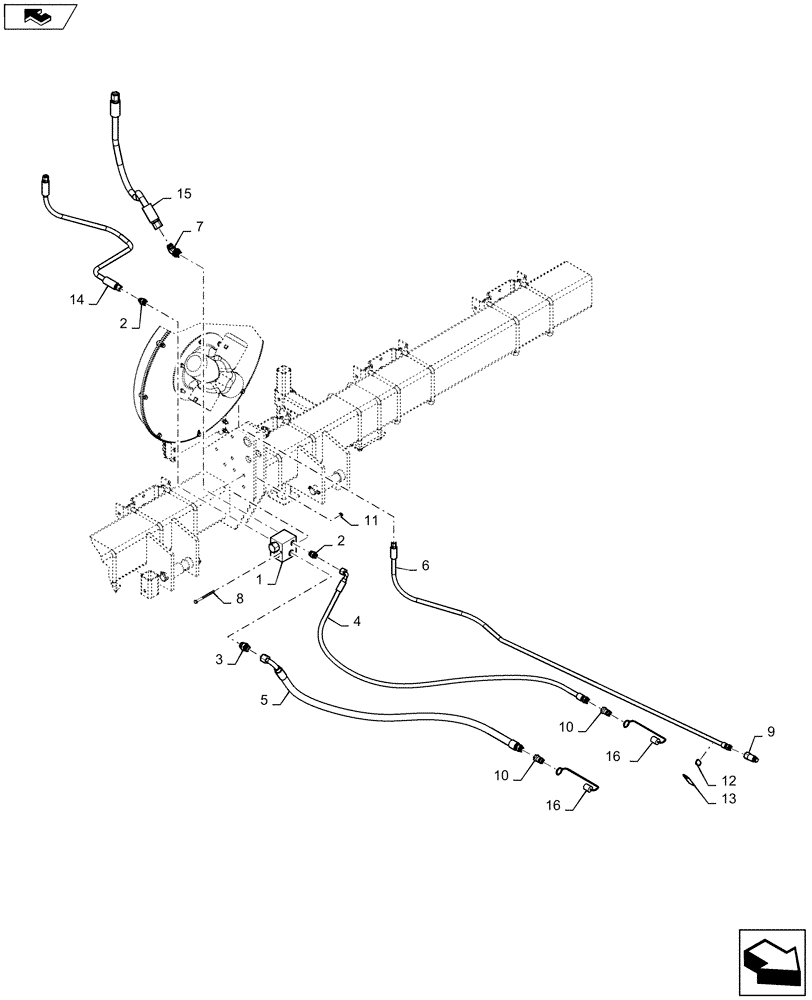

Запчасти Case IH 1215 (35.745.AA[01]) - VACUUM FAN HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

296823A2

VALVE

Flow Control And Check

1шт.

2

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

2шт.

3

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

1шт.

4

47519502

HYDRAULIC HOSE

Fan Supply 1/2 X 75"

1шт.

5

47520445

HYDRAULIC HOSE

Return 3/4 X 75"

1шт.

6

47456336

HOSE

Case Drain 3/8 X 90"

1шт.

7

330344

45 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

1шт.

8

86505980

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

2шт.

9

385358A1

QUICK MALE COUPLING,3/8"

3/8"

1шт.

10

86592080

QUICK MALE COUPLING

2шт.

11

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

2шт.

12

6033

CABLE TIE,6"

1шт.

13

47432848

DECAL

Tag Case Drain

1шт.

14

1336925C1

HYDRAULIC HOSE

Fan Supply 1/2 x 33"

1шт.

15

301293A1

HYDRAULIC HOSE

Fan Return 3/4 X 55"

1шт.

16

333722A1

CAP

Quick Coupler Green

2шт.
