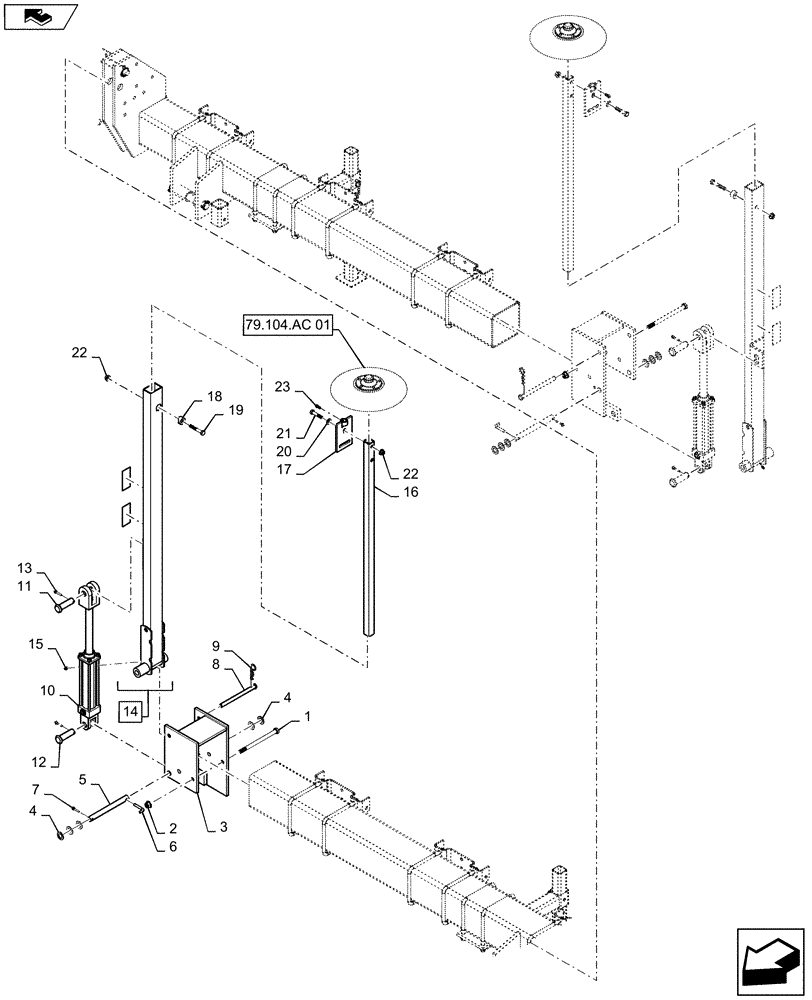

Запчасти Case IH 1215 (79.104.AB[01]) - MARKER FOR 6 ROW 30" (79) - PLANTING

1

86622984

BOLT,Hex, 5/8" - 11 x 9", Gr 5

4шт.

2

86521608

FLANGE NUT,Flg, 5/8"-11, G5

4шт.

3

87565599

BRACKET

6 Row Marker

1шт.

4

86624166

WASHER,0.91" ID x 1.5" OD x 0.06" Thk

5шт.

5

1263878C1

PIVOT PIN

Marker

1шт.

6

813175C2

LOCK PIN,9.5mm OD

Pivot

1шт.

7

87402

COTTER PIN,1/4" OD x 1-1/4" OAL

1шт.

8

1263946C1

HEADED PIN

1шт.

9

486830R1

COTTER PIN

1шт.

10

87500930

HYDRAULIC CYLINDER,28.57mm Rod, 204.72mm Stroke

1-1/4 X 8"

1шт.

11

810751C1

PIN

1 X 3-1/2"

1шт.

12

87023161

HEADED PIN,1" x 3"

1шт.

13

80753

COTTER PIN,1/4" x 1 1/2"

2шт.

14

47534137

FRAME

Tube Assy Painted With Decals

1шт.

15

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

1шт.

16

1263882C1

TUBE,1060 mm Length

1шт.

17

84272021

PLATE

Adjusting End Markers Painted

1шт.

18

89200C1

TUBE,13.5 mm ID x 31.7 mm OD x 20 mm L

1шт.

19

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

20

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

2шт.

21

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

2шт.

22

86512371

SERRATED NUT,Flg, USR, 1/2"-13

3шт.

23

87616

SET SCREW,3/8" - 16 x 3/4"

1шт.
