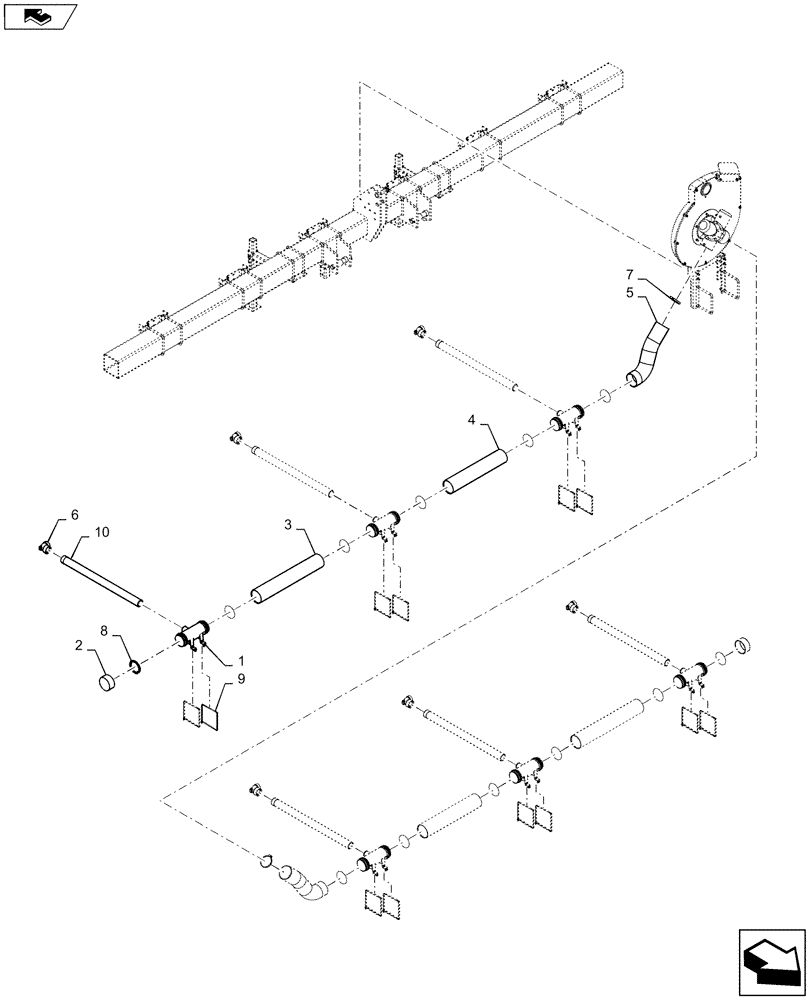

Запчасти Case IH 1215 (79.103.AA[03]) - VACUUM DELIVERY HOSES FOR 6 ROW 38 INCH (79) - PLANTING

1

300766A1

TEE

Vacuum Manifold

6шт.

2

300767A1

CAP

Vacuum Manifold End

2шт.

3

301442A1

TUBE,116.88 mm ID, 125 mm OD, 759 mm Length

2шт.

4

307972A1

TUBE,116.88 mm ID, 125 mm OD, 647 mm Length

2шт.

5

251079A2

HOSE

4.5" X 820mm

2шт.

6

84416530

90 ELBOW

50mm

6шт.

7

9706924

HOSE CLAMP,103.1mm - 127mm

4шт.

8

47484434

O-RING

4-1/4" X 4-5/8"

10шт.

9

112620A1

CABLE TIE

34"

12шт.

10

87501727

HOSE

Manifold

6шт.
