Запчасти Case IH 1215 (55.516.AI[08]) - WIRE HARNESS SEED SENSOR 6 ROW 36", 38, 40 ACU-STAT (55) - ELECTRICAL SYSTEMS

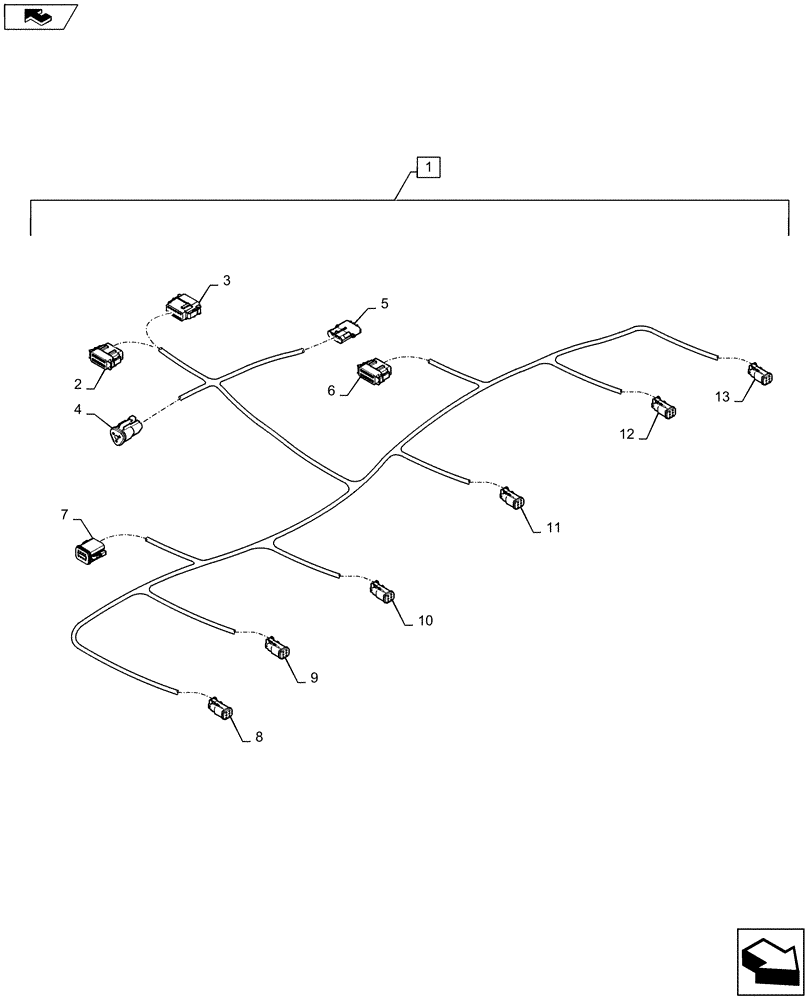

Схема запчастей Case IH 1215 - (55.516.AI[08]) - WIRE HARNESS SEED SENSOR 6 ROW 36", 38, 40 ACU-STAT (55) - ELECTRICAL SYSTEMS
6
11
12
3
7
2
1
9
4
home
5
13
8
10

Артикул

Название

Примечание

Количество

1

84539996

WIRE HARNESS

Seed Sensor 6 ROW 36", 38', 40' Acu-Stat, Incl 2 - 13

1шт.

2

87700156

CONTACT HOUSING,Female, 12 Pole

Seed Module A

1шт.

3

87705101

MULTIPOLE CONNECTOR,Female, 12 Pole

Seed Modual B

1шт.

4

84074635

CONTACT HOUSING,Female, 3 Pole

Can 2

1шт.

5

87692802

ELEC CONNECTOR

Seed Sensor Bus

1шт.

6

87700332

ELEC CONNECTOR

Right Wing Seed Sensor

1шт.

7

87700332

ELEC CONNECTOR

Left Wing Seed Sensor

1шт.

8

87700107

ELEC CONNECTOR

Seed Sensor 1

1шт.

9

87700107

ELEC CONNECTOR

Seed Sensor 2

1шт.

10

87700107

ELEC CONNECTOR

Seed Sensor 3

1шт.

11

87700107

ELEC CONNECTOR

Seed Sensor 4

1шт.

12

87700107

ELEC CONNECTOR

Seed Sensor 5

1шт.

13

87700107

ELEC CONNECTOR

Seed Sensor 6

1шт.

Выбрано товаров: 13
