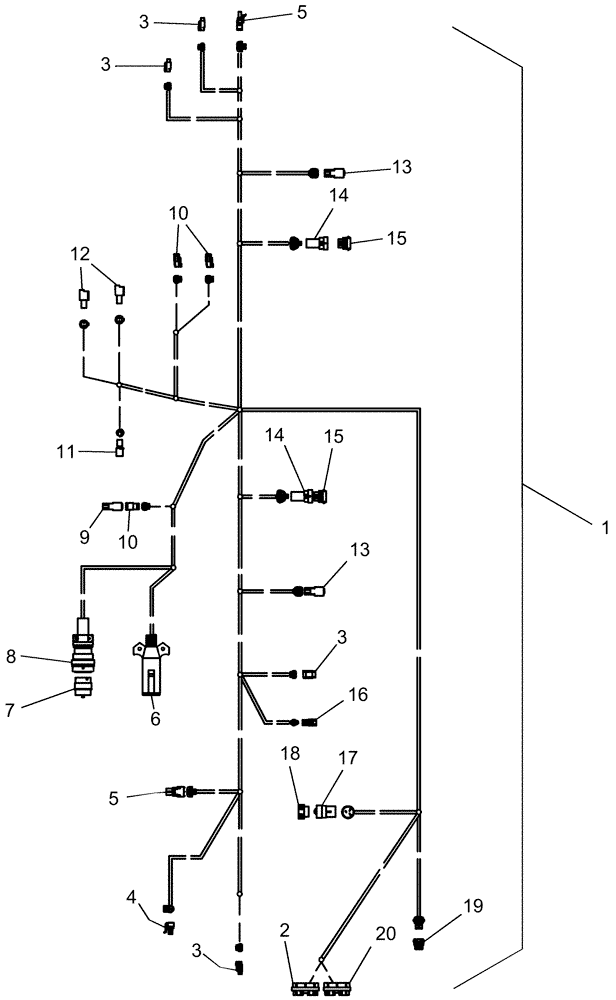

Запчасти Case IH 1210 (55.100.24) - ELECTRICAL - HARNESS 87682737 RIGID TRAILING VR (55) - ELECTRICAL SYSTEMS

1

87682737

HARNESS

rigid trailing VR ISOBUS

1шт.

2

87268797

MULTIPOLE CONNECTOR,Female, 30 Pole

30c b plug

1шт.

3

87696551

CONTACT HOUSING,Female, 3 Pole

cab plastic plug 3c

4шт.

4

198456A1

ELEC CONNECTOR,Female

3-Way Receptacle ES-A7380

1шт.

5

87692855

CONTACT HOUSING,Male, 2 Cavities

plastic 2c plug

2шт.

6

121646C1

TERMINAL CONNECTOR,Female

metal 7c plug c/w cable protector

1шт.

7

788614

PROTECTING COVER,2" OD x 1.7" Long

dust 23 con rcp Deutsch

1шт.

8

279043A1

ELEC CONNECTOR,Female, 9 Pin

metal 9c plug

1шт.

9

225315C1

ELEC CONNECTOR,Male, 2 Pin

Cab Plastic Receptacle 2C

1шт.

10

225316C1

ELEC CONNECTOR,Female, 2 Pin

2 Cavity

3шт.

11

1160576C1

ELEC CONNECTOR,Male, 2 Pin

2 contact

1шт.

12

1160577C1

ELEC CONNECTOR,Female, 2 Pin

CONNECTOR 2 contact

2шт.

13

277905A1

ELEC CONNECTOR,Male, 4 Pin

plastic 4c receptacle

2шт.

14

296483A1

ELEC CONNECTOR,Male, 5 Pin

Packard 150 series receptacle

2шт.

15

296482A1

ELEC CONNECTOR,Female, 5 Pin

Packard 150 series plug

2шт.

16

9842512

ELEC CONNECTOR,Female, 16

3 Junct

1шт.

17

795231

TERMINAL CONNECTOR,Female, 16 SAE

plastic 3c plug

1шт.

18

225291C1

DUST CAP

calibration switch

1шт.

19

256348A1

ELEC CONNECTOR,Female, 6 Pin

6 Pin, Packard

1шт.

20

87268798

MULTIPOLE CONNECTOR,Female, 30 Pole

30c plug b key

1шт.
