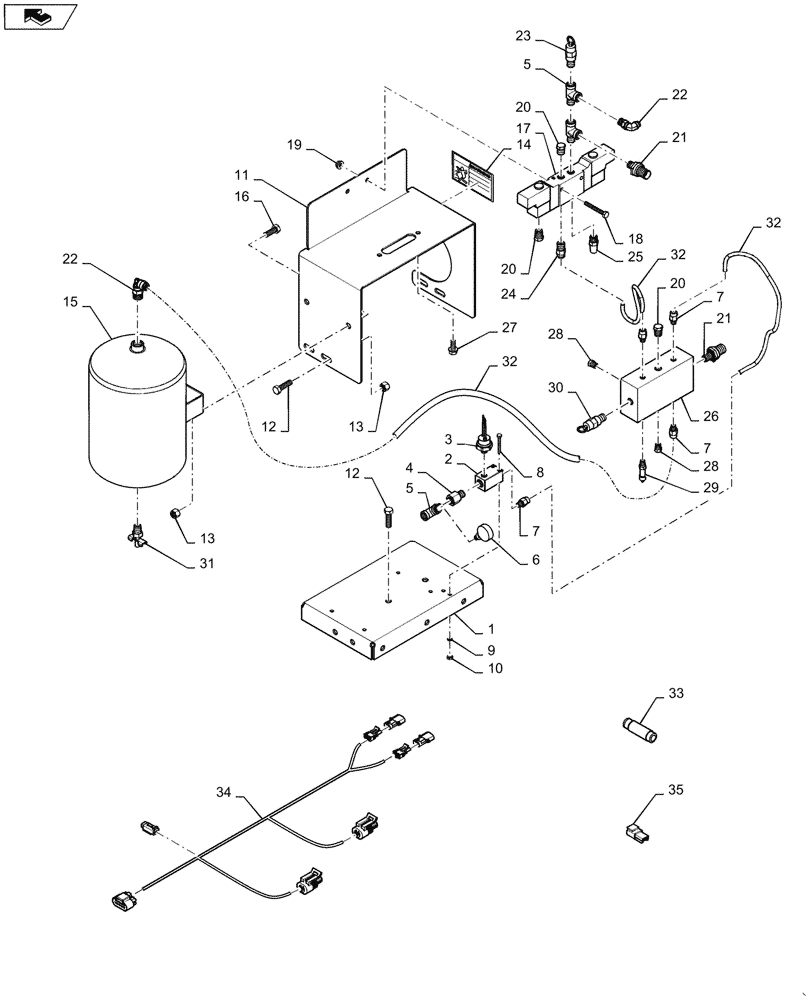

Запчасти Case IH 1210 (75.200.25) - PNEUMATIC DOWN PRESSURE KIT (75) - SOIL PREPARATION

1

84361683

BASE

Compressor

1шт.

2

84143619

MANIFOLD

Air Distribution

1шт.

3

84338925

PRESSURE SWITCH

1шт.

4

87306797

ADAPTER,1/4"-18 Fem NPTF x 1/4"-18 NPTF Male

1шт.

5

217-51

TEE,1/4"-18 NPTF Fem x 1/4"-18 NPTF Male Run

3шт.

6

21380

GAUGE

Pressure, 2", 0-160 psi

1шт.

7

84256879

FITTING

4шт.

8

84361277

HEX SOC SCREW

2шт.

9

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

2шт.

10

87304

NUT,#10-24

2шт.

11

47962533

SHIELD

Compressor Incl Decal

1шт.

12

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

6шт.

13

87039402

NUT,3/8"-16, GB

8шт.

14

87697284

DECAL

Safety

1шт.

15

84164053

AIR TANK

150 psi, 1.6 Gallon

1шт.

16

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

17

84141998

VALVE

Pneumatic Pilot

1шт.

18

87404

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

19

523282

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

20

86568834

PLUG,1/4" - 18 NPT

3шт.

21

84163183

TRANSDUCER

Pressure, 0-150 psig

2шт.

22

84166114

90 ELBOW

2шт.

23

84162561

VALVE PRESSURE RELIE

110 psi

1шт.

24

84163245

FITTING

1/4" M Push To Connect x 1/4" M NPT

1шт.

25

87752977

MUFFLER

Filter

1шт.

26

84165808

MANIFOLD

Air Pneumatic Down Pressure And Air Clutch

1шт.

27

86521552

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

28

88071

PLUG

5шт.

29

87623685

VALVE

Tank, Schrader

1шт.

30

84165807

VALVE PRESSURE RELIE

140 psi

1шт.

31

86625234

DRAINCOCK/TAP SUPPLY,1/4" NPTF

Drain, Fuel Tank

1шт.

32

87675607

HOSE, BULK,4.318 mm ID x 6.35 mm OD x 76200 mm L

1/4" x 250', Bulk, Cut To 350 mm, 210 mm, 1400 mm, 450 mm

1шт.

33

84359746

UNION

(Not Shown)

1шт.

34

87493975

HARNESS

Pnuematic Systems (Not Shown)

1шт.

35

84174604

HARNESS

Resisitor Module (Not Shown)

1шт.
