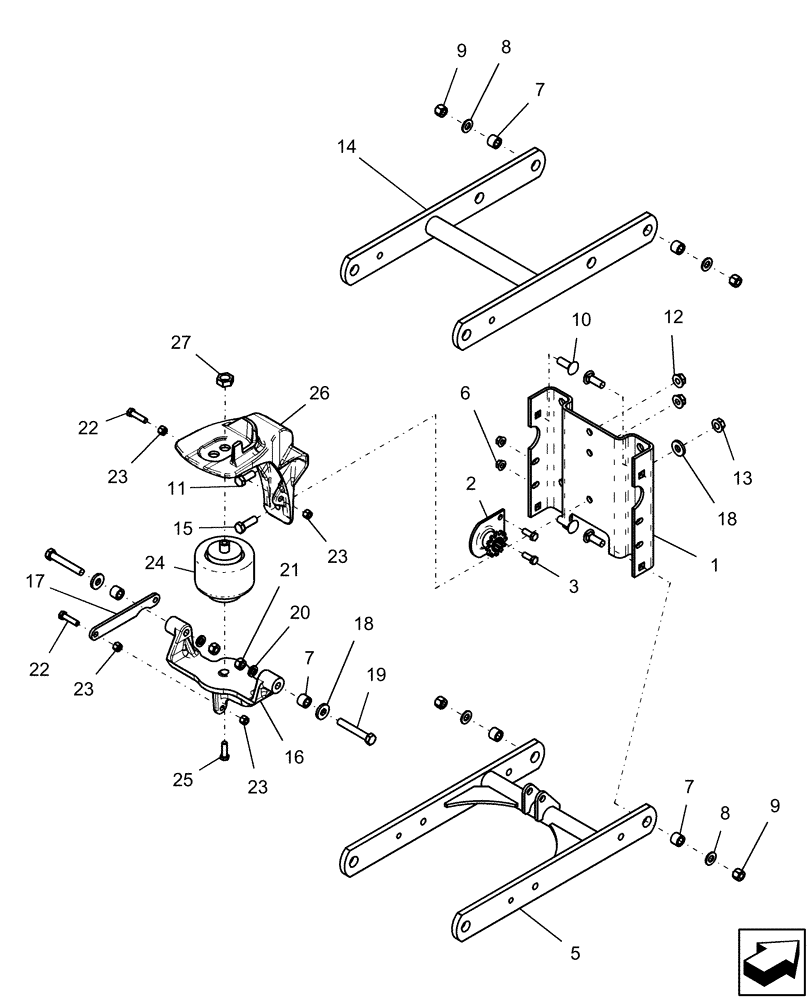

Запчасти Case IH 1210 (75.200.18) - PNEUMATIC DOWN PRESSURE - 20" LINKAGE WITHOUT LOCKUP (75) - SOIL PREPARATION

1

141728C5

BRACKET

channel head

1шт.

2

413712A1

BEARING ASSY,1.90625" OD x 1.875"

12 tooth with bearing

1шт.

3

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

5

87473387

LINKAGE

20" lower

1шт.

6

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

7

1254302C1

BUSHING,13.5mm ID x 22.2mm OD x 16.7mm L

link pivot

6шт.

8

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

4шт.

9

86992215

LOCK NUT,1/2"-13, GC

4шт.

10

280420

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

4шт.

11

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

2шт.

12

86512371

SERRATED NUT,Flg, USR, 1/2"-13

2шт.

13

87301492

SERRATED NUT,Flg, USR, 1/2"-13, G8

1шт.

14

87752385

LINKAGE

20" upper

1шт.

15

88904

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

1шт.

16

87739251

BRACKET

lower air spring

1шт.

17

87473329

BRACKET

pneumatick link, 20"

1шт.

18

496-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

3шт.

19

280820

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 8

2шт.

20

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

21

9803187

NUT,1/2"-13, G8

2шт.

22

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

23

87039402

NUT,3/8"-16, GB

4шт.

24

87737172

SPRING

pneumatic 4.6" dia

1шт.

24

84250155

TEE,1/4" AIR x 1/4" AIR x 1/8" - 27 NPT

Branch, Male

1шт.

25

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

26

87752967

BRACKET

upper air spring 20" and 24"

1шт.

27

87313

JAM NUT,Jam, 3/4"-16, G2

1шт.
