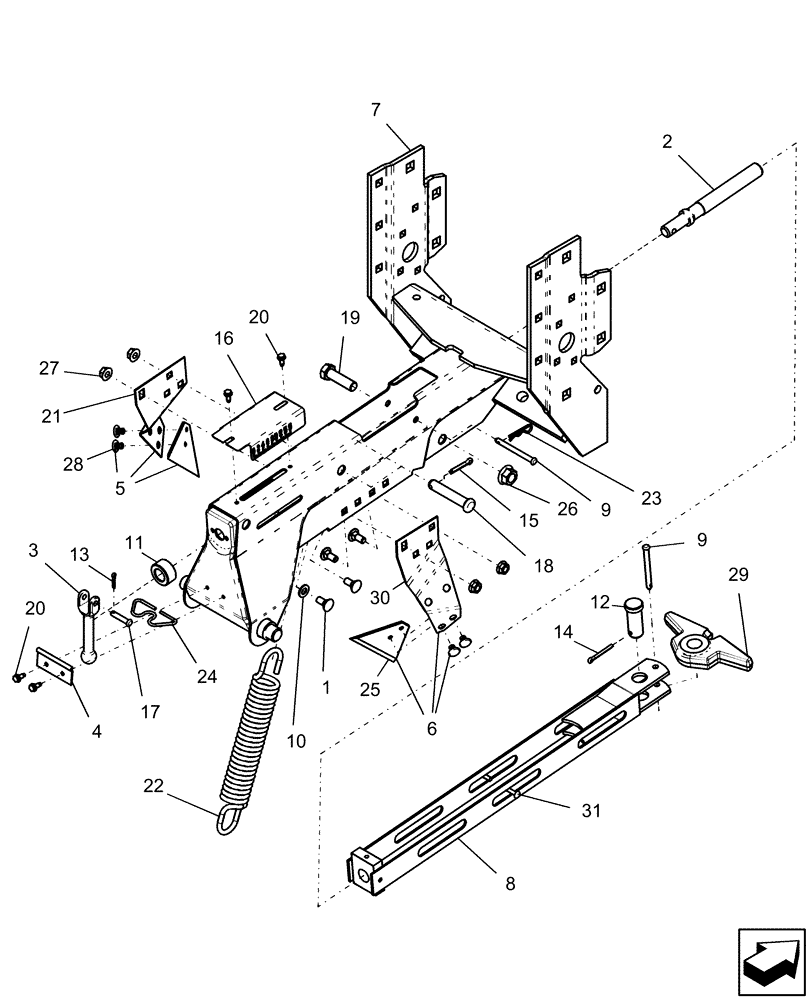

Запчасти Case IH 1210 (75.200.05) - ROW UNIT - FRAME (75) - SOIL PREPARATION

1

51200045

CARRIAGE BOLT

5/16"-18 x 3/4", G5

4шт.

2

1279684C1

ROD

depth adjusting

1шт.

3

430868A1

HANDLE

depth adjustment

1шт.

4

430872A1

GAUGE

clamp plate

1шт.

5

413684A1

SCRAPER

blade LH

1шт.

Includes scraper, bracket and rivets

1шт.

6

413687A1

SCRAPER

blade RH

1шт.

Includes scraper, bracket and rivets

1шт.

7

84138178

FRAME

row unit

1шт.

8

432749A1

BAR

assembly, tension

1шт.

9

147310C1

HEADED PIN,6.35mm OD x 69.85mm L

pointed, 1/4" x 2 3/4"

2шт.

10

44722S36

WASHER,5/16", .354" x .688" x .08" Thk

1шт.

11

430871A1

BUSHING,17.5mm ID x 31.8mm OD x 16mm L

spacer

1шт.

12

86624066

CLEVIS PIN,19.05mm OD x 45.62mm L

1шт.

13

87394

COTTER PIN,1/8" x 1/2"

1шт.

14

86523851

COTTER PIN,5/32" x 1 1/4"

1шт.

15

87397

COTTER PIN,3/16" OD x 1" L

1шт.

16

430873A1

GAUGE

depth

1шт.

17

86624076

HEADED PIN,1/4" x 1 1/4", G5

1шт.

18

86624072

HEADED PIN,12.7mm OD x 69.85mm L

1шт.

19

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

1шт.

20

86624112

SELF-TAP SCREW,HWH, #10 - 24 x 1/2"

4шт.

21

84227789

BRACKET

scraper LH

1шт.

22

436715A1

SPRING

E .244" wire x 1.48" od x 9.8" long

1шт.

23

86624096

COTTER PIN,Int, 3/16 x .080"

1шт.

24

430869A1

SPRING CLIP

1шт.

25

436705A1

BLADE

scraper

1шт.

26

86512371

SERRATED NUT,Flg, USR, 1/2"-13

1шт.

27

145458

SERRATED NUT,5/16"-18 GR 5 ZND

4шт.

28

147274C1

RIVET,4.78mm OD x 10mm L

fh 3/16" x 3/8" special

4шт.

29

436712A1

BRACKET

wobble

1шт.

30

84227790

BRACKET

scraper RH

1шт.

31

1277597C1

STUD

barbed #12 x 3/4" RH

2шт.
