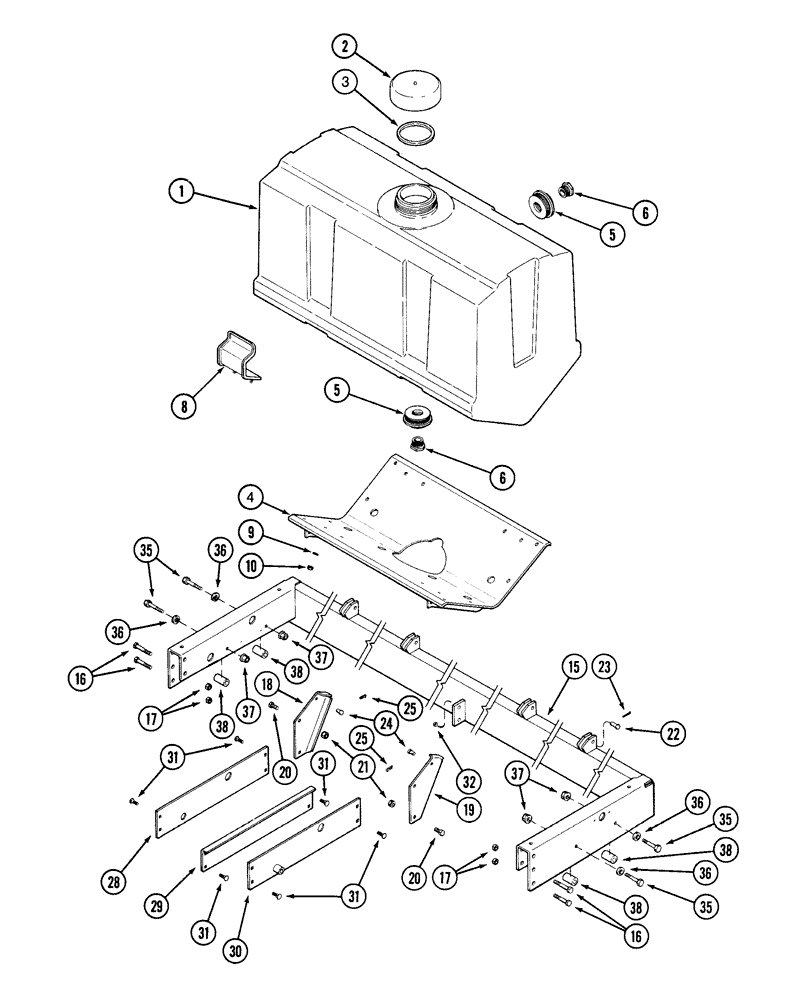

Запчасти Case IH 1210 (75.110.13) - LIQUID FERTILIZER TANK AND MOUNTING, ALL RIGID TRAILING PLANTERS (75) - SOIL PREPARATION

1

1345311C1

HOPPER

tank 73 gal

1шт.

8 Row Narrow

1шт.

1

1345312C1

HOPPER

tank 110 gal

1шт.

6 Row

1шт.

2

1345173C1

PLUG

cap

1шт.

3

1345175C1

GASKET,115.1mm ID x 131.1mm OD x 3.8mm Thk

tank cap

1шт.

4

141044C1

SADDLE

assembly, tank

1шт.

8 Row

1шт.

4

1339484C1

SUPPORT

saddle tank assembly

1шт.

6 Row

1шт.

5

1254377C1

FITTING

bulkhead, 1 1/4" fpt

2шт.

6

275618

PLUG,Dome, .250" hole, Nylon

2шт.

8

147419C1

BRACKET

assembly, tank attaching

4шт.

9

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

8шт.

10

247780

SERRATED NUT,Flg, USR, 3/8"-16

8шт.

15

141162C2

FUNNEL

FRAME hopper

1шт.

6 Row Narrow

1шт.

Shown

1шт.

15

87502335

FRAME

fertilizer LH

1шт.

8 Row Narrow

1шт.

15

141314C2

FRAME

tank, RH

1шт.

8 Row Narrow

1шт.

16

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1шт.

16

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

17

86992215

LOCK NUT,1/2"-13, GC

3шт.

18

147417C2

BAR

rear tank support LH

1шт.

19

147418C2

BAR

rear tank support RH

1шт.

20

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

21

86992215

LOCK NUT,1/2"-13, GC

4шт.

22

86624079

HEADED PIN,3/8" x 1 1/4", G2

2шт.

23

80756

COTTER PIN,1/8" x 3/4"

2шт.

24

86624060

HEADED PIN,3/8" x 3/4", G2

2шт.

25

86624096

COTTER PIN,Int, 3/16 x .080"

2шт.

28

141096C1

BAR

LH

1шт.

6 Row Narrow

1шт.

29

141047C1

SUPPORT

angle

2шт.

8 Row Narrow

1шт.

30

141108C1

SUPPORT

RH

1шт.

6 Row Narrow

1шт.

31

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

1шт.

32

88902

NUT,3/8"-16

1шт.

35

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

36

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

1шт.

37

86512371

SERRATED NUT,Flg, USR, 1/2"-13

1шт.

38

1976487C2

SPACER

27/32" x 63/64" x 2"

1шт.
