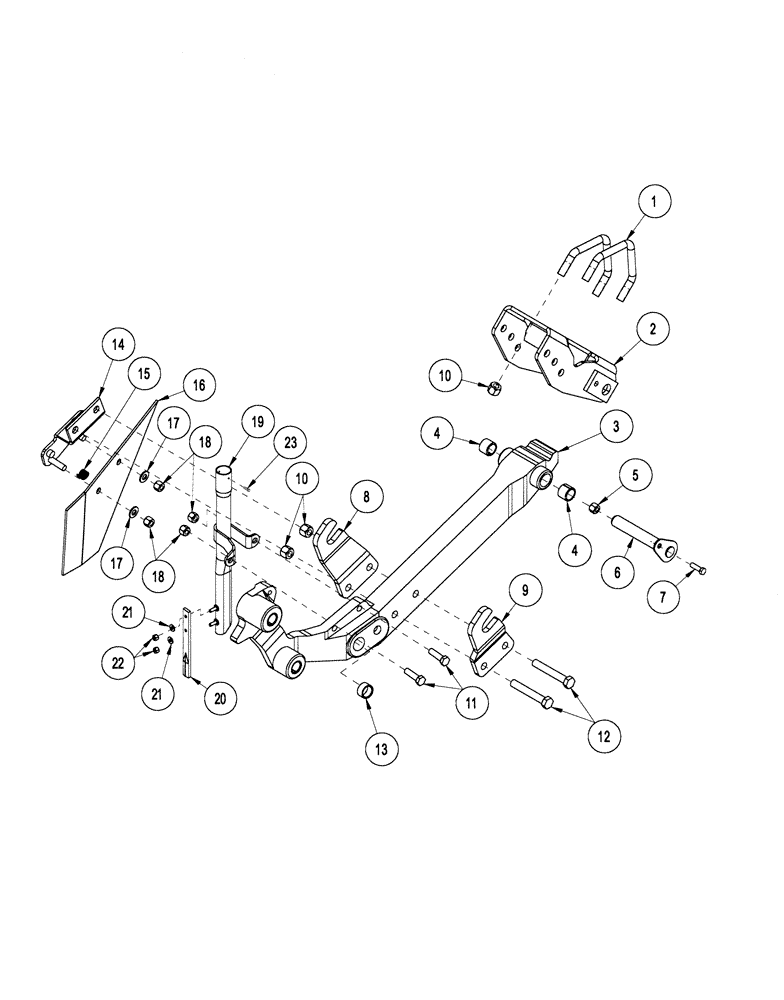

Запчасти Case IH SDX30 (4.010.1) - SEED TUBE, SCRAPER, ARM, AND MOUNT (BSN CBJ0007174 AND BSN CKB0028188) (18) - MISCELLANEOUS

1

306071A1

BOLT

V .625 X 4 UNC GR5 YZD 5.44 WIDE, 1.25 LG THREAD

2шт.

2

328011A1

MOUNTING PARTS

single disc

1шт.

3

306133A1

ARM

mount LH

1шт.

3

306228A1

ARM

mount RH

1шт.

4

86523224

BUSHING,25.58mm ID x 32.77mm OD x 26.16mm L

tension 1 1/4" x 1" x 1" long

6шт.

5

231-1446

NUT,3/8" - 16, Gr 5

1шт.

6

349394A1

PIN

pivot

1шт.

7

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

8

306244A1

BRACKET

spring pivot LH

1шт.

9

306219A1

BRACKET

spring pivot RH

1шт.

10

85700693

NUT,5/8" - 11, Gr C

2шт.

11

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

2шт.

12

86977740

BOLT,Hex, 5/8" - 11 x 4", Gr 5

2шт.

13

87500592

BUSHING,25.5mm ID x 31.84mm OD x 19.05mm L

composite 1 1/4" x 1" x 3/4"

2шт.

14

306208A1

BRACKET

scraper LH

1шт.

14

306235A1

BRACKET

assy scraper RH

1шт.

15

306242A1

SPRING

compression 2.49 mm wire x 21.59 mm od

1шт.

16

350347A1

SCRAPER

blade LH

1шт.

16

350348A1

SCRAPER

blade RH

1шт.

Shown

1шт.

17

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

2шт.

18

87530607

NUT

1/2"-13, GB

4шт.

19

306085A1

TUBE

seed LH

1шт.

19

306084A1

TUBE

seed RH

1шт.

Shown

1шт.

20

306122A1

RETAINER,Seed Tab

uhmw tab 3/4" x 7" with holes

1шт.

21

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

2шт.

22

86625061

NUT,1/4"-20, GB

2шт.

23

9426646

SELF-TAP SCREW,Hex Wash Hd, #6 x 1/4"

1шт.
