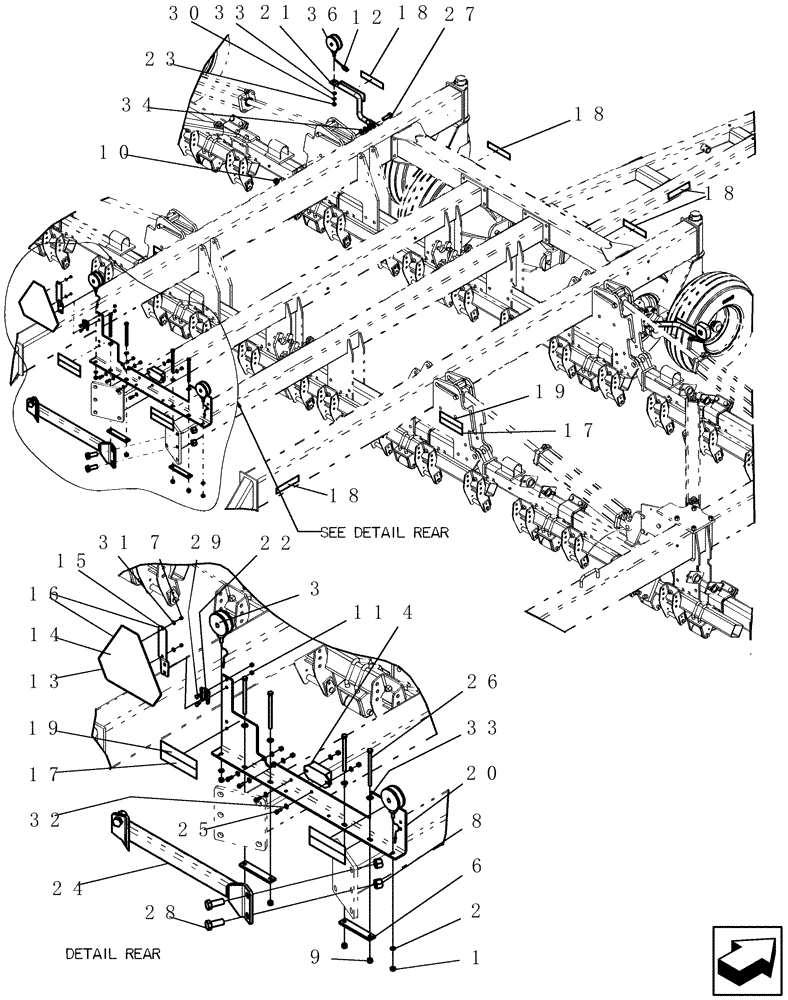

Запчасти Case IH SDX30 (1.121.1) - TRANSPORT LIGHTING AND REFLECTOR DECALS (ASN CBJ0007001) (12) - FRAME

1

280431

NUT,1/2"-13, G5

2шт.

2

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

3

51200040

LIGHT

assy. stop tail/signal red

2шт.

Includes 6815 and 86537133

1шт.

3

6815

LENS

red

2шт.

3

86537133

BULB,C6, #1157, 12.8V

2шт.

3

84129422

BULB

Double Contact, 1156DC

2шт.

4

86561136

MODULE

implement lighting control

1шт.

5

412917A1

HARNESS

seedtool lighting 31'

1шт.

Not Shown

1шт.

Refer to 3.010.1

1шт.

6

1023957

LARGE PLATE

PLATE, LARGE backup

2шт.

7

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

2шт.

8

86755

NUT,1"-8, GB

4шт.

9

87530607

NUT

1/2"-13, GB

4шт.

10

280375

NUT,3/4"-10, GC

28шт.

11

86050277

NUT,5/16"-18, GB

2шт.

12

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

plastic 2c receptacle

2шт.

13

311859A1

TRAFFIC SIGN

plate - SMV

1шт.

14

311858A1

DECAL

SMV Emblem

1шт.

15

311861A1

SUPPORT

SMV sign

1шт.

16

311862A1

PLATE

assembly, slow moving vehicle

1шт.

16

86547710

EMBLEM

KIT SMV, Start Year: 01-SEP-08

1шт.

16

412742A1

WARNING SIGN

smv steel back 4 holes, Years: -01-SEP-08

2шт.

17

311863A1

REFLECTOR

Retroreflective Red

4шт.

18

311864A1

REFLECTOR

Retroreflective Amber 1.375" x 7.25"

8шт.

19

311865A1

REFLECTOR

fluorescent orange

4шт.

20

351668A1

BRACKET

SDX transport light

1шт.

21

351978A1

BRACKET

transport, Years: -30-SEP-04

2шт.

Includes decal 311864A1

1шт.

21

87442626

BRACKET

light with decal, Start Year: 01-OCT-04

2шт.

Includes decal 311864A1

1шт.

22

847590

BRACKET

socket, female, SMV emblem

1шт.

23

280963

NUT,Nut, 1/2-20 GR 5 ZND

2шт.

24

425181A1

SUPPORT

bolting main

1шт.

25

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

26

86505997

BOLT,Hex, 1/2" - 13 x 7 1/2", Gr 5

4шт.

27

9706701

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

4шт.

28

426-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 8

4шт.

29

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

2шт.

30

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

31

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

32

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

8шт.

33

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

6шт.

34

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

12шт.

35

6-11250

INSTRUCTION

transport light

1шт.

Not Shown

1шт.

36

87564157

WARNING LIGHT

assembly amber

2шт.
