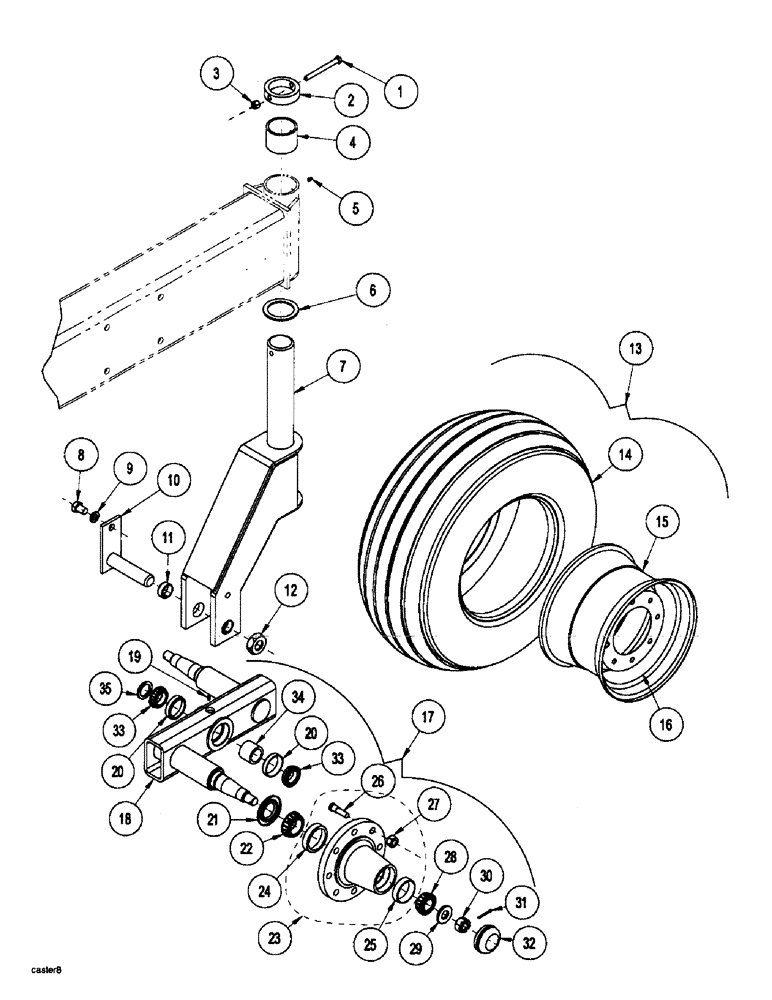

Запчасти Case IH SDX30 (1.090.1) - CASTER - HEAVY DUTY 8 BOLT HUB (BSN CKB0028188) (12) - FRAME

1

87997

BOLT,Hex, 1/2" - 13 x 5", Gr 5

1шт.

2

1020639

RETAINER

king pin

1шт.

3

87530607

NUT

1/2"-13, GB

1шт.

4

1020501

BUSHING,76.68mm ID x 89.03mm OD x 63.5mm L

bronze 3" id x 3 1/2" od 2 1/2" lg, SAE 660

2шт.

5

86624018

LUBE NIPPLE,1/4"-28 x .54" lg

2шт.

6

1020512

THRUST WASHER

3.04 ID 4.0 OD .188 HRD RC 50-60

2шт.

7

306192A1

CASTER

pivot bogie

1шт.

8

413-1216

BOLT,Hex, 3/4" - 10 x 1", Gr 5

1шт.

9

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

1шт.

10

103069A2

PIN

pivot 1 1/2" od x 4.843" UL

1шт.

11

1268054C1

BUSHING,38.18mm ID x 45.47mm OD x 19.05mm L

tension 1 3/4" x 1 1/2" x 3/4" lg

2шт.

12

87010729

JAM NUT,Jam, 1 1/2"-6, G5

2шт.

13

1030722

WHEEL ASSY

15x10 8h with 31x13.5 10p hf-1(high floatation tire)

2шт.

Includes wheel, tire and valve stem

1шт.

14

1030720

TYRE/TIRE

31 x 13 1/2" - 15 10pr hf-1 high floatation, static load r

1шт.

15

1030721

RIM

15 x 10 8 hole +2 1/4" offset

1шт.

16

1018564

VALVE

tire stem

1шт.

17

306274A1

SUPPORT

bogie heavy duty 8 bolt, Serial Range: -CKB0028188

1шт.

Order Components

1шт.

17

412797A1

AXLE

heavy duty bogie RH, Start Serial: CBJ0007001

1шт.

Order Components

1шт.

17

412798A1

AXLE

heavy duty bogie LH, Start Serial: CBJ0007001

1шт.

Order Components

1шт.

18

306194A1

SUPPORT

bogie heavy duty 8-bolt, Serial Range: -CKB0028188

1шт.

18

351614A1

AXLE

bogie heavy 1 1/2' drop RH, Start Serial: CBJ0007001

1шт.

18

351616A1

AXLE

bogie heavy 1 1/2' drop LH, Start Serial: CBJ0007001

1шт.

19

87414

LUBE NIPPLE,1/4" - 28

2шт.

20

72062

BEARING CUP,69.04mm OD x 15.08mm W

#13621

2шт.

21

491715R91

OIL SEAL

oil SE16, Start Serial: CBJ0007001

2шт.

22

512725

BEARING CONE,45.62mm ID x 25.4mm W

#25590

2шт.

23

1023734

HUB

HA811-8 assembly with cups and studs, Serial Range: -CKB0028188

2шт.

23

1020697

HUB

H811-8 assembly with cups and studs, Start Serial: CBJ0007001

2шт.

24

86900365

BEARING CUP,82.96mm OD x 19.05mm W

#25520

1шт.

25

86516462

BEARING CUP,73.03mm OD x 19.05mm W

#25821

1шт.

26

1016176

STEP BOLT

.563 UNF GR5 WB41 YZD, 2.25 LONG, 1.625 THREAD

6шт.

27

1016177

WHEEL NUT

wheel 9/16"-18 CTD# WB40

6шт.

28

86516471

BEARING CONE,34.92mm ID x 24.61mm W

#25877

2шт.

29

1013475

WASHER

1.06ID 2.1 .25 YZD

2шт.

30

425-1316

NUT,1"-14, G5

2шт.

31

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

2шт.

32

87505192

HUB CAP

dc17

2шт.

33

F86364

BEARING CONE

TM#13685 and seal #13600LA

2шт.

34

107921A2

TUBE

spacer

1шт.

35

103066A1

WASHER,38.9mm ID x 53.98mm OD x 4mm Thk

spacer 38.90MM ID x 53.98MM OD x 4.00MM thick

4шт.
