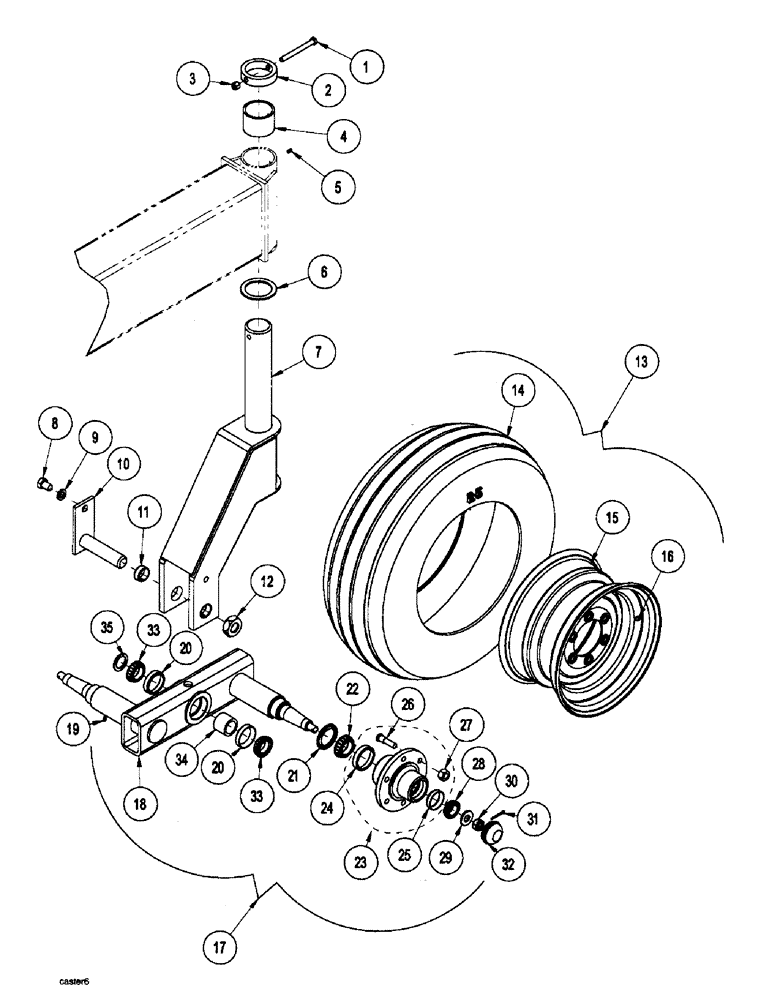

Запчасти Case IH SDX30 (1.080.1) - CASTER - STANDARD 6 BOLT HUB (BSN CKB0028188) (NOT STANDARD ASN CBJ0007001) (12) - FRAME

1

87997

BOLT,Hex, 1/2" - 13 x 5", Gr 5

1шт.

2

1020639

RETAINER

king pin

1шт.

3

87530607

NUT

1/2"-13, GB

1шт.

4

1020501

BUSHING,76.68mm ID x 89.03mm OD x 63.5mm L

bronze 3" id x 3 1/2" od 2 1/2" lg, SAE 660

2шт.

5

86624018

LUBE NIPPLE,1/4"-28 x .54" lg

2шт.

6

1020512

THRUST WASHER

3.04 ID 4.0 OD .188 HRD RC 50-60

2шт.

7

306192A1

CASTER

pivot bogie

1шт.

8

413-1216

BOLT,Hex, 3/4" - 10 x 1", Gr 5

1шт.

9

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

1шт.

10

103069A2

PIN

pivot 1 1/2" od x 4.843" UL

1шт.

11

1268054C1

BUSHING,38.18mm ID x 45.47mm OD x 19.05mm L

tension 1 3/4" x 1 1/2" x 3/4" lg

2шт.

12

87010729

JAM NUT,Jam, 1 1/2"-6, G5

2шт.

13

350346A1

WHEEL ASSY

11L-15 8PR 6H W/15X8RIM

2шт.

Order Individual Parts

1шт.

14

350345A1

TYRE/TIRE

11L-15 8PR stubble guard

1шт.

Purchase Locally

1шт.

15

A57879

RIM

15X8 6 hole with VG +1 1/8" offset

1шт.

16

810769C1

VALVE

tire stem VS/936

1шт.

17

306172A1

SUPPORT

bogie standard duty 6 bolt

1шт.

18

306170A1

AXLE

bogie std duty 6-bolt

1шт.

19

87414

LUBE NIPPLE,1/4" - 28

2шт.

20

72062

BEARING CUP,69.04mm OD x 15.08mm W

#13621

2шт.

21

62610C1

OIL SEAL,57.15mm ID x 77.88mm OD x 6.35mm Thk

hub oil fed mog #473473

2шт.

22

86512015

TAPERED BEARING,41.27mm ID x 73.46mm OD x 19.63mm W

Cup & Cone, Serial Range: -CKB0028188

2шт.

22

36726

BEARING CONE,31.75mm ID x 16.76mm W

#LM67048, Start Serial: CBJ0007001

2шт.

23

1023733

BEARING HOUSING

H630-2 assembly with cups and studs

2шт.

Includes 1016175, 1013560, 1012374, 651818R91 and 663557R91

1шт.

24

663558R1

BEARING CUP

#LM501310

1шт.

25

36723

BEARING CUP,59.16mm OD x 11.81mm W

#LM67010

1шт.

26

1016176

STEP BOLT

.563 UNF GR5 WB41 YZD, 2.25 LONG, 1.625 THREAD

6шт.

27

1016177

WHEEL NUT

wheel 9/16"-18 CTD# WB40

6шт.

28

36726

BEARING CONE,31.75mm ID x 16.76mm W

#LM67048, Serial Range: -CKB0028188

2шт.

28

86512015

TAPERED BEARING,41.27mm ID x 73.46mm OD x 19.63mm W

Cup & Cone, Start Serial: CBJ0007001

2шт.

29

826271

WASHER

13/16"id 1 3/4"od 3/16" pln

2шт.

30

86632554

SLOTTED NUT,3/4"-16, G5

2шт.

31

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

2шт.

32

87505175

DUST CAP

H517 & H611

2шт.

33

F86364

BEARING CONE

TM#13685 and seal #13600LA

2шт.

34

107921A2

TUBE

spacer

1шт.

35

103066A1

WASHER,38.9mm ID x 53.98mm OD x 4mm Thk

spacer 38.90MM ID x 53.98MM OD x 4.00MM thick

4шт.
