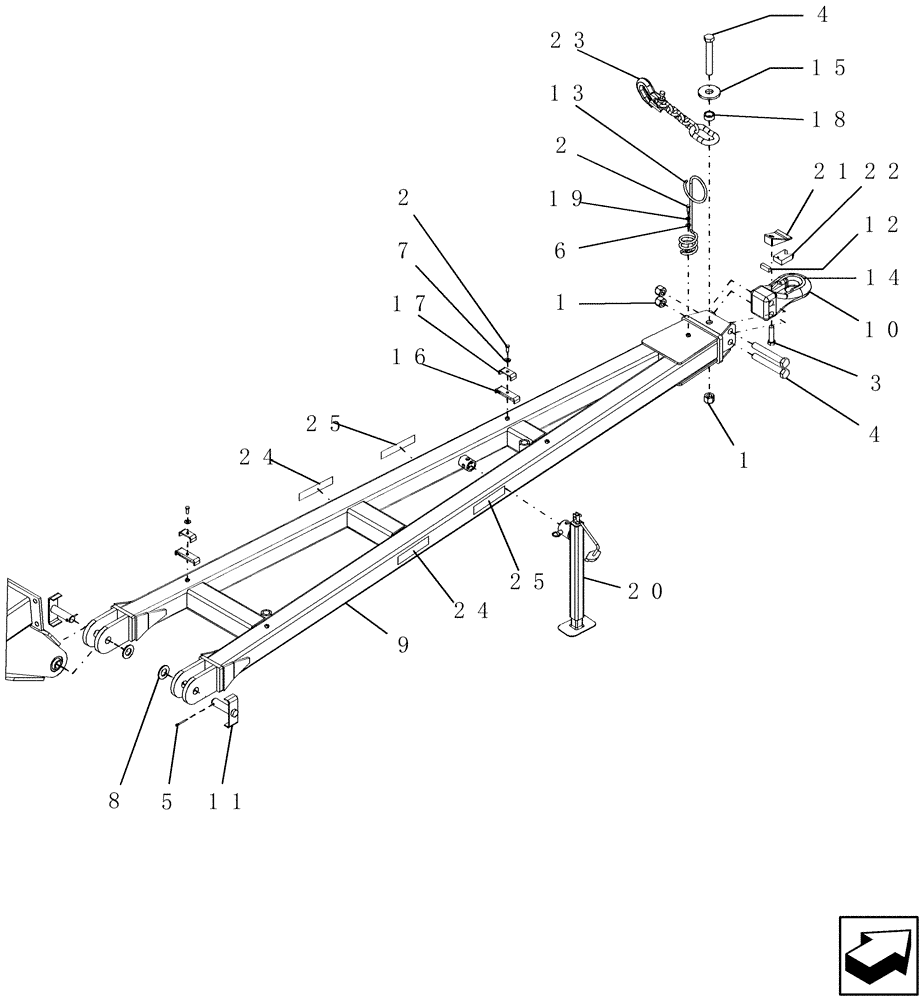

Запчасти Case IH SDX30 (1.071.1) - DRAWPOLE (ASN CBJ0007001) (12) - FRAME

1

232-14416

NUT,1"-8, GC

3шт.

2

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

3

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

4

426-16112

BOLT,Hex, 1" - 8 x 7", Gr 8

3шт.

5

32-1632

COTTER PIN,1/4" x 2"

2шт.

6

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

1шт.

7

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

8

496-11131

WASHER,1 5/16" x 2 1/2" x .150", HDN

2шт.

9

1032575

HITCH

front, Years: -01-AUG-08

1шт.

9

87673452

HITCH

front, Start Year: 01-AUG-08

1шт.

10

1032745

HITCH

assembly

1шт.

11

1017062

PIN

hinge 1-1/4" OD

2шт.

12

1032751

CUSHION

perfect hitch

1шт.

13

1026727

HOLDER

hydraulic hose

1шт.

14

1032744

HITCH

base

1шт.

15

1032404

WASHER

1.281" ID 3.75" OD .375" thick

1шт.

16

350326A1

ISOLATOR

clamp, hose small

2шт.

17

1024284

CLAMP

HOSE FORMED 2.88 X .94

2шт.

18

1032403

SPACER

tube 3/4"

1шт.

19

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

20

1016961

JACK

2000 lb x 15"

1шт.

21

1032742

PLATE

top hitch

1шт.

22

1032743

BLOCK

perfect hitch v-block

1шт.

23

GR-457A

CHAIN (AG)

assembly, safety 60,600 lb

1шт.

24

311864A1

REFLECTOR

Retroreflective Amber 1.375" x 7.25"

2шт.

25

192848A2

DECAL

Case IH 70 mm logo, Years: -01-AUG-08

2шт.

25

87653276

DECAL

Case IH (350 mm x 83 mm), Start Year: 01-AUG-08

2шт.
