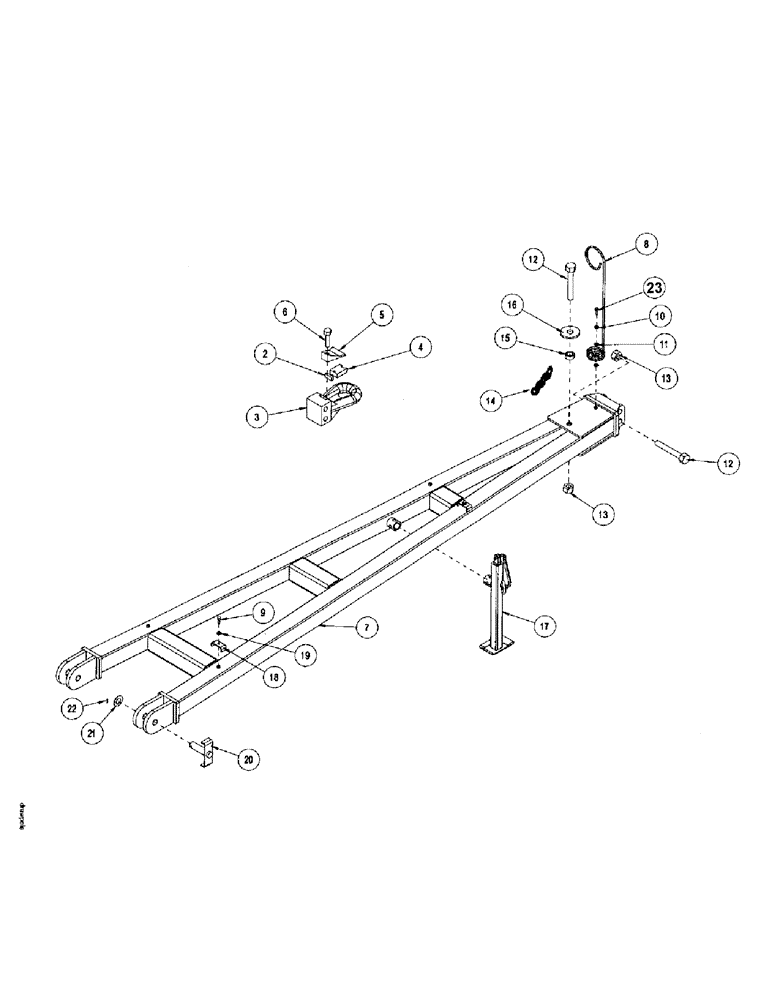

Запчасти Case IH SDX30 (1.070.1) - DRAWPOLE (BSN CKB0028188) (12) - FRAME

1

1032745

HITCH

assembly

1шт.

2

1032751

CUSHION

perfect hitch

1шт.

3

1032744

HITCH

base

1шт.

4

1032743

BLOCK

perfect hitch v-block

1шт.

5

1032742

PLATE

top hitch

1шт.

6

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

7

1032575

HITCH

front

1шт.

8

1026727

HOLDER

hydraulic hose

1шт.

9

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

10

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

11

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

12

426-16112

BOLT,Hex, 1" - 8 x 7", Gr 8

3шт.

13

232-14416

NUT,1"-8, GC

3шт.

14

87619912

CHAIN

safety, 40,400 lb

1шт.

15

1032403

SPACER

tube 3/4"

1шт.

16

1032404

WASHER

1.281" ID 3.75" OD .375" thick

1шт.

17

1016961

JACK

2000 lb x 15"

1шт.

18

1024284

CLAMP

HOSE FORMED 2.88 X .94

4шт.

19

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

4шт.

20

1017062

PIN

hinge 1-1/4" OD

2шт.

21

496-11131

WASHER,1 5/16" x 2 1/2" x .150", HDN

2шт.

22

32-1632

COTTER PIN,1/4" x 2"

2шт.

23

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

1шт.
