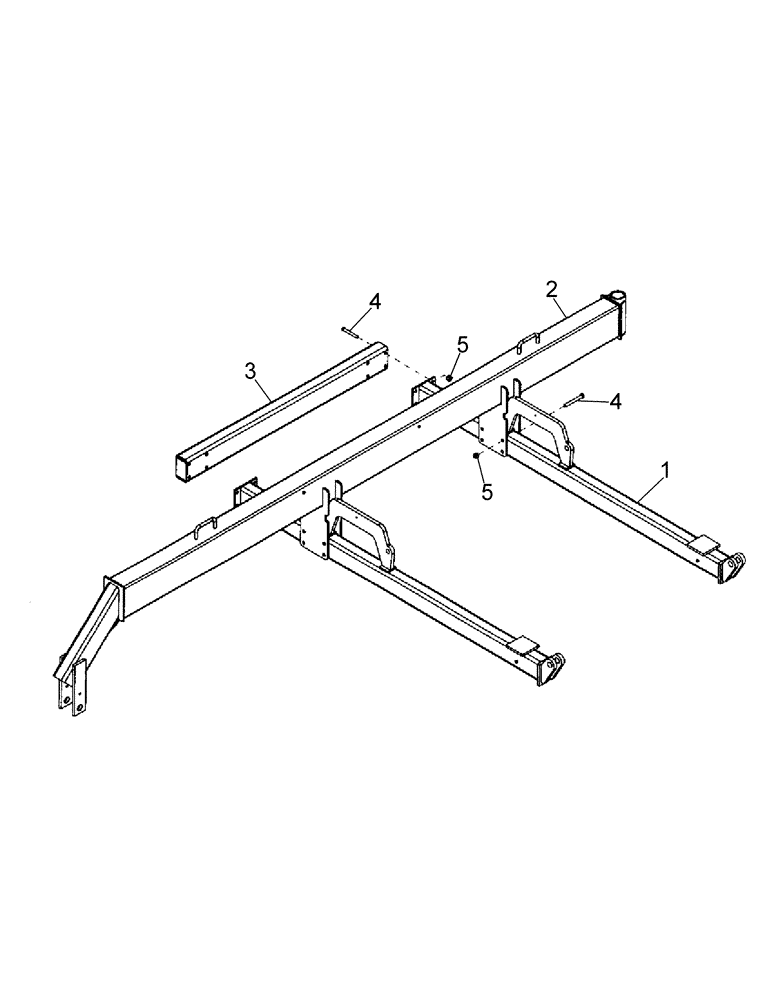

Запчасти Case IH SDX30 (1.030.1) - WING FRAME (12) - FRAME

1

306265A1

TUBE,2899.5 mm Length

wing 30', Years: -31-AUG-02

2шт.

1

86984019

TUBE

wing 30' front, Start Year: 01-SEP-02

1шт.

1

86987484

TUBE

wing 30' rear LH, Start Year: 01-SEP-02

1шт.

Includes: Decals 311863A1 and 311865A1

1шт.

1

86987485

TUBE

wing 30' rear RH, Start Year: 01-SEP-02

1шт.

Includes: Decals 311863A1 and 311865A1

1шт.

2

306260A2

FRAME

wing truss LH

1шт.

Includes: Two Decals 350336A1

1шт.

2

87410708

FRAME

wing truss RH

1шт.

Includes: Two Decals 350336A1

1шт.

3

306176A1

TUBE,1854 mm Length

wing end

1шт.

4

86508735

BOLT,Hex, 3/4" - 10 x 6", Gr 8

16шт.

5

280375

NUT,3/4"-10, GC

16шт.
