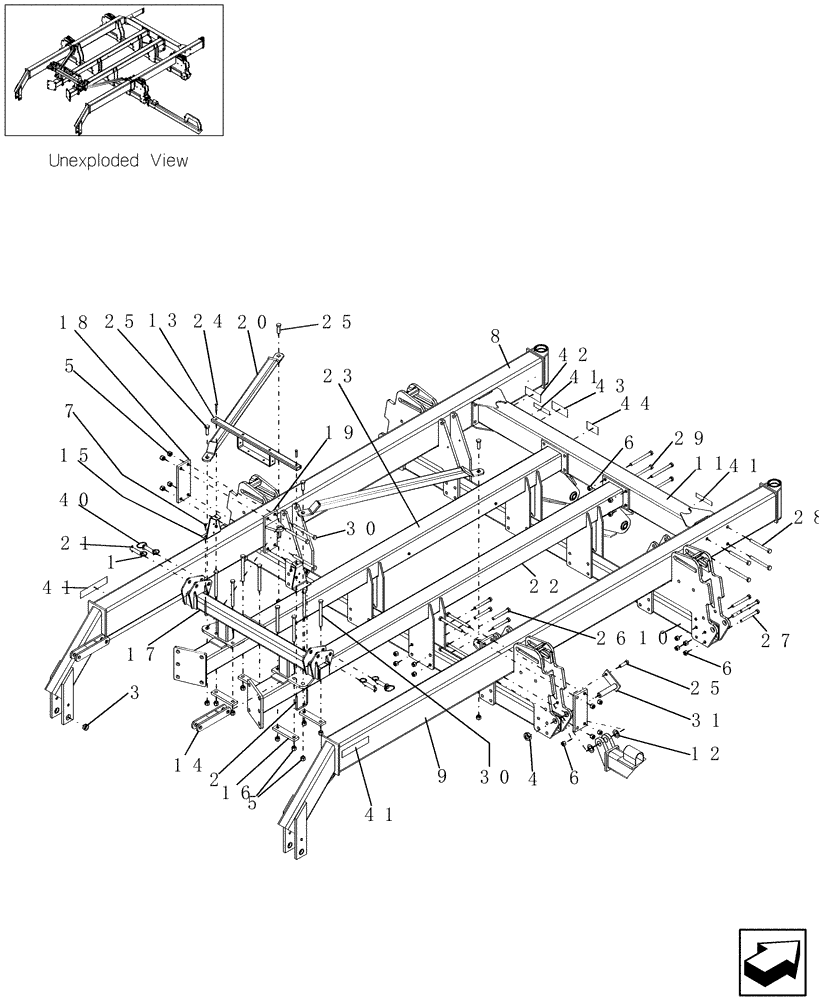

Запчасти Case IH SDX30 (1.020.1) - MAIN FRAME (ASN CBJ0007001) - ADX HITCH (12) - FRAME

1

6425

LINCH PIN

7/16" x 1 3/8"

2шт.

2

1030501

U-BOLT

us 3/8"-16 x 4" x 5" zp 1" of thread

2шт.

3

1268054C1

BUSHING,38.18mm ID x 45.47mm OD x 19.05mm L

tension 1 3/4" x 1 1/2" x 3/4" lg

4шт.

4

87010729

JAM NUT,Jam, 1 1/2"-6, G5

4шт.

5

86754

NUT,3/4"-10, GB

20шт.

6

280375

NUT,3/4"-10, GC

68шт.

7

231-1446

NUT,3/8" - 16, Gr 5

6шт.

8

306152A1

SUPPORT

main frame truss LH, Years: -01-AUG-08

1шт.

8

87673439

FRAME

main with truss LH, Start Year: 01-AUG-08

1шт.

9

306154A1

SUPPORT

main frame truss RH, Years: -01-AUG-08

1шт.

9

87666076

FRAME

main with truss RH, Start Year: 01-AUG-08

1шт.

10

86984011

TUBE,101.60 mm W x 152.40 mm H x 3200.50 mm L

3/8" x 4" x 6" with holes

2шт.

11

306270A2

TUBE,2283.6 mm Length

cross, Years: -01-AUG-08

1шт.

11

87665742

TUBE,2283.6 mm L

with cross, Start Year: 01-AUG-08

1шт.

12

350338A1

WASHER

1 9/16" x 2 1/2" x 14 GA

8шт.

13

351435A1

TUBE

coupler

1шт.

14

351439A1

PIVOT,Uses 2 - 1" pins

link

2шт.

For TBH Cart and Disc Drills

1шт.

14

GE-197

LINKAGE,Uses 1 each of 1" and 3/4" pins

mount, pivot link

2шт.

For TBH Cart and Hoe Drills

1шт.

15

351634A1

BRACKET

mounting

2шт.

16

351638A1

BAR

bolting

4шт.

17

351645A1

HITCH

1шт.

18

351647A1

BAR

bolting

2шт.

19

351650A1

WELDABLE LUG

hitch

2шт.

20

351654A1

BRACKET

wing

2шт.

21

351935A1

PIN

draw, 1" x 3 1/2"

2шт.

Includes 6425

1шт.

22

351940A2

TUBE

truss hitch RH

1шт.

23

351941A2

TUBE

truss hitch LH

1шт.

24

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

25

9706701

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

8шт.

26

86508735

BOLT,Hex, 3/4" - 10 x 6", Gr 8

16шт.

27

426-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 8

32шт.

28

86557052

BOLT,Hex, 3/4" - 10 x 7 1/2", Gr 8

8шт.

29

426-12128

BOLT,Hex, 3/4" - 10 x 8", Gr 8

8шт.

30

426-12136

BOLT,Hex, 3/4" - 10 x 8-1/2", Gr 8

16шт.

31

425500A2

PIVOT PIN

1 1/2" od x x 5 5/8" ul

4шт.

40

412769A1

HITCH PIN

1" x 3 1/2" usable

2шт.

Includes linchpin

1шт.

41

311864A1

REFLECTOR

Retroreflective Amber 1.375" x 7.25", Start Year: 01-AUG-08

4шт.

42

350336A1

DECAL

Danger - opener safety lock, Start Year: 01-AUG-08

1шт.

43

350335A1

DECAL

wing lock-up valve, Start Year: 01-AUG-08

1шт.

44

312479A1

DECAL

warning pictorial, Start Year: 01-AUG-08

1шт.
