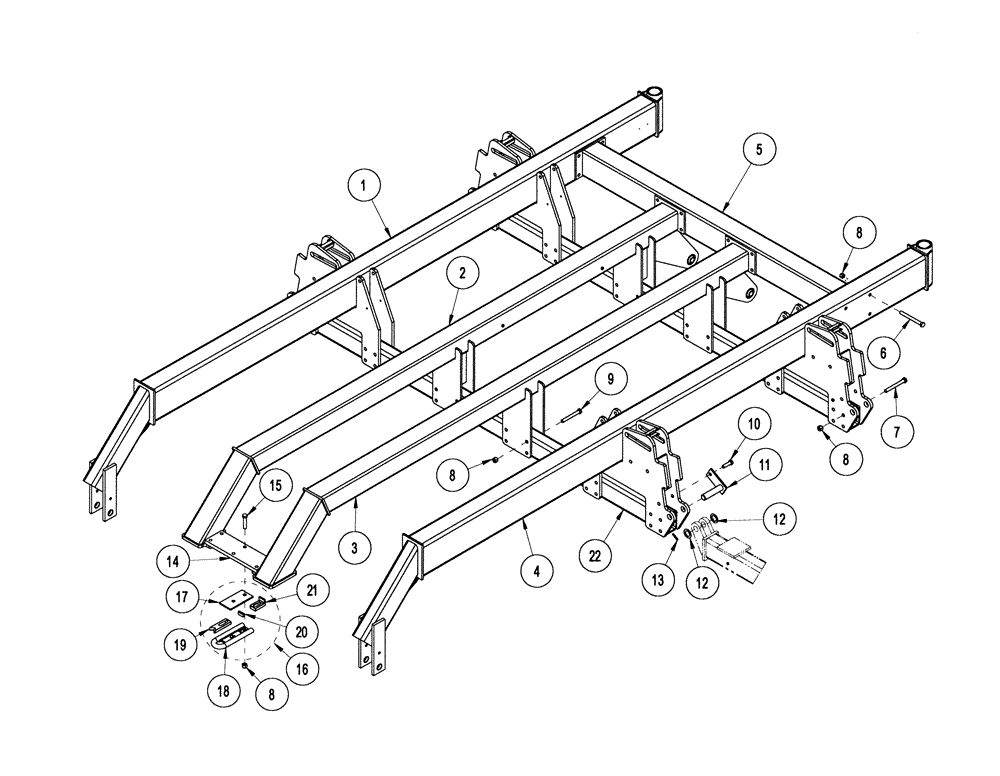

Запчасти Case IH SDX30 (1.010.1) - MAIN FRAME (BSN CKB0028188) (12) - FRAME

1

306152A1

SUPPORT

main frame truss LH

1шт.

2

306262A2

SUPPORT

truss hitch LH

1шт.

3

306269A2

SUPPORT

truss hitch RH

1шт.

4

306154A1

SUPPORT

main frame truss RH

1шт.

5

306270A1

TUBE,2284.4 mm Length

cross, Serial Range: -CKB0028188

1шт.

5

306270A2

TUBE,2283.6 mm Length

cross, Start Serial: CBJ0007001

1шт.

6

86557052

BOLT,Hex, 3/4" - 10 x 7 1/2", Gr 8

16шт.

7

426-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 8

32шт.

8

280375

NUT,3/4"-10, GC

74шт.

9

86508735

BOLT,Hex, 3/4" - 10 x 6", Gr 8

16шт.

10

9706701

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

4шт.

11

312999A1

PIN

wing hinge

4шт.

12

350338A1

WASHER

1 9/16" x 2 1/2" x 14 GA

1шт.

13

63172

PIN, ROLL

.312 x 2, Black, Heavy

4шт.

14

306268A1

PLATE

rear hitch

1шт.

15

86508733

BOLT,Hex, 3/4" - 10 x 3 1/2", Gr 8

6шт.

16

1032750

HITCH

#PPI-200HOA PERFECT

1шт.

17

1032746

PLATE

top hitch

1шт.

18

1032749

HITCH

base

1шт.

19

1032747

BLOCK

hitch v-block

1шт.

20

1032751

CUSHION

perfect hitch

1шт.

21

1032748

HITCH BRACKET

angle

1шт.

22

306160A1

TUBE,3340 mm Length

3/8" x 4" x 6" with holes

2шт.
