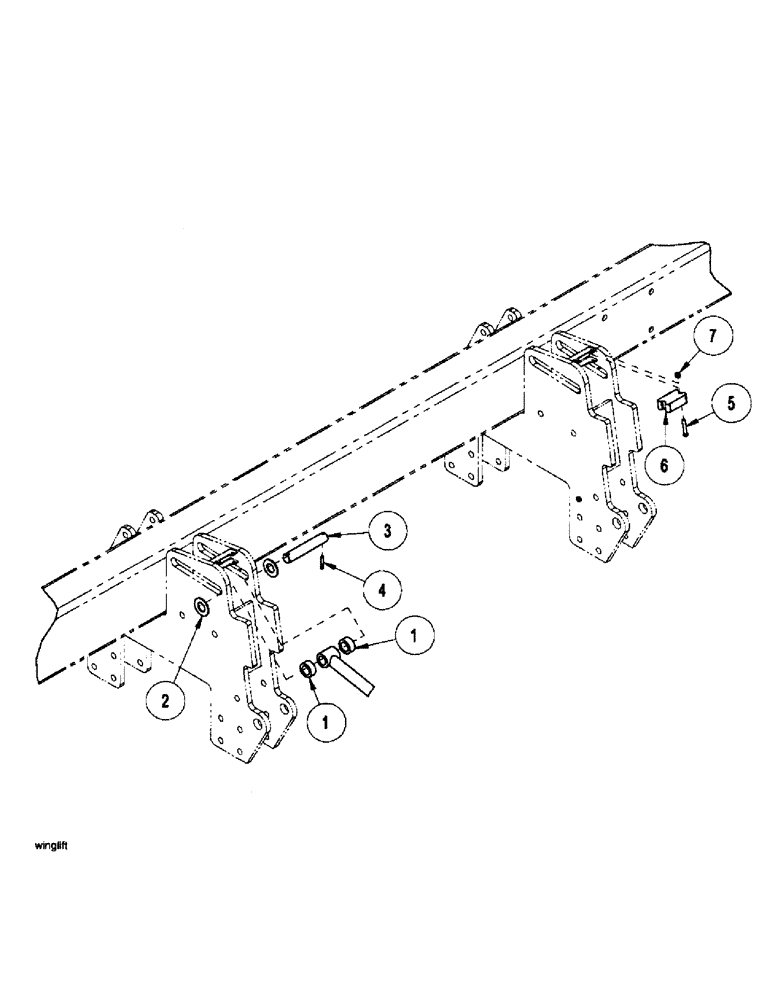

Запчасти Case IH SDX30 (2.110.1) - WING LIFT (07) - HYDRAULICS

1

312987A1

SPACER

33 mm id x 50.8 mm od x 22 mm

8шт.

2

496-11131

WASHER,1 5/16" x 2 1/2" x .150", HDN

8шт.

3

312991A1

PIN

winglift

4шт.

4

63172

PIN, ROLL

.312 x 2, Black, Heavy

8шт.

5

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

8шт.

6

312986A1

CUSHION

cylinder rubber

4шт.

7

232-1446

NUT,3/8"-16, GC

8шт.
